Schneider Electric CAD32BD | 3-Pole Contactor

Schneider Electric CAD32BD | 3-Pole Control Contactor – 24V DC Coil, 3NO + 2NC, TeSys D Series

Overview

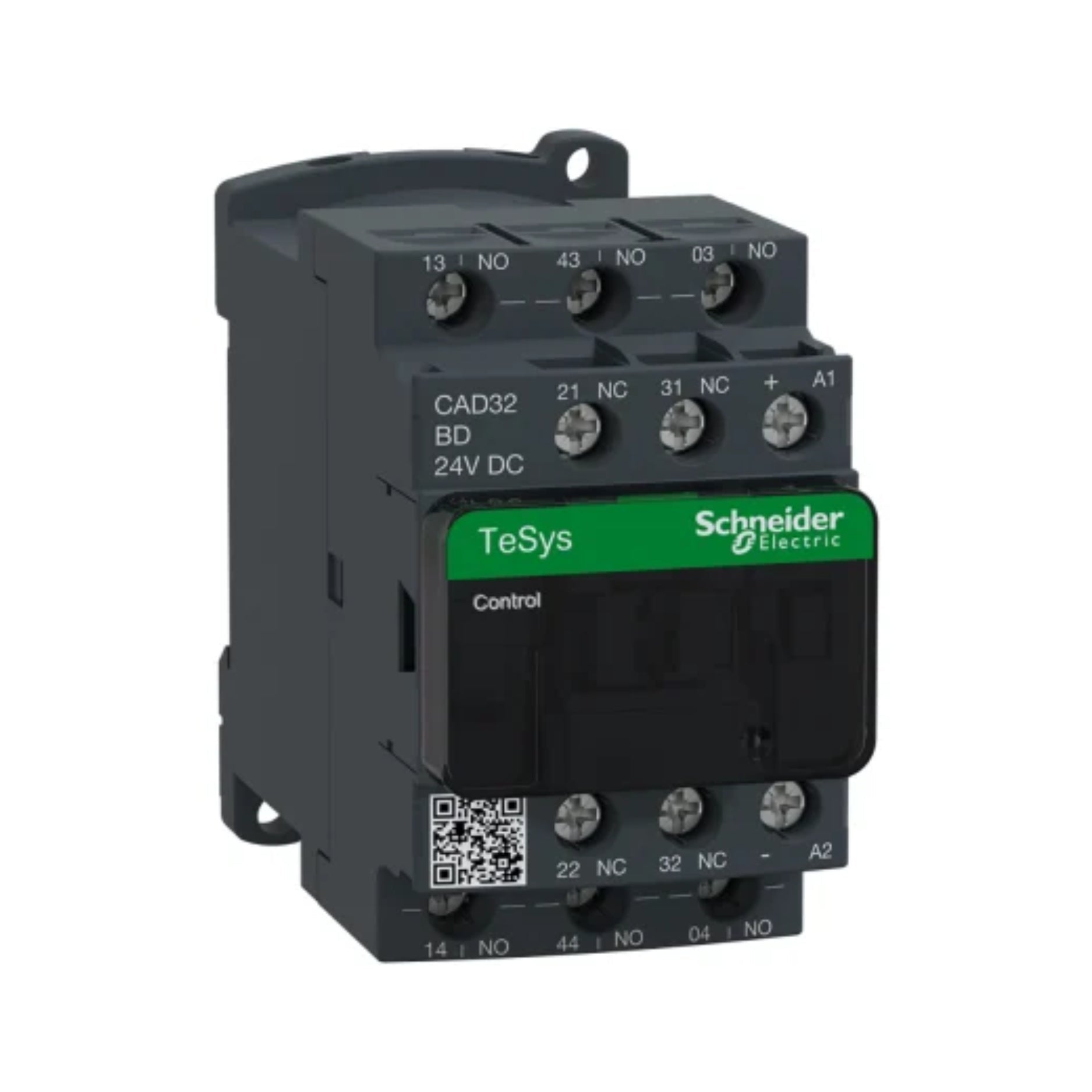

The Schneider Electric CAD32BD is a 3-pole auxiliary contactor from the TeSys D series, designed for use in control circuits. It features a 24V DC coil, 3 normally open (NO) and 2 normally closed (NC) contacts, offering reliable operation in industrial automation applications.

Key Features

• Contact Configuration: 3NO + 2NC

• Coil Voltage: 24V DC

• Operational Current: Up to 10 A (AC-15), 20 A (AC-1)

• Electrical Durability: Up to 1 million operations

• Mechanical Durability: Up to 10 million operations

• Mounting: DIN rail or panel

• Compatible Accessories: Auxiliary blocks, timers, suppressor modules

Technical Specifications

• Model Number: CAD32BD

• Series: TeSys D

• Number of Poles: 3

• Auxiliary Contacts: 3NO + 2NC

• Control Voltage: 24V DC

• Rated Operational Current:

  • AC-1: 20 A

  • AC-15: 10 A at 600V

• Rated Insulation Voltage: 690V AC

• Mounting Method: DIN rail or screw fixing

• Operating Temperature: -25°C to +60°C

• Dimensions (H x W x D): Approx. 85 mm x 45 mm x 94 mm

• Weight: Approx. 0.45 kg

• Certifications: UL, CSA, CE, IEC

Applications

• Control Panels: Used for switching control circuits in industrial equipment

• Automation Systems: For controlling auxiliary functions or interlocking circuits

• Building Management: Reliable contact switching in HVAC and lighting systems

• Machine Control: Start/stop and interlock control of machinery

Why Choose CAD32BD?

• Compact and Reliable: Designed for long life and high switching performance

• Flexible Mounting: Fits into DIN rail systems or screw-mounted panels

• Wide Compatibility: Works seamlessly with TeSys D accessories and extensions

• DC Coil Efficiency: Low energy coil ensures quick, reliable operation

Order Now

Available for fast worldwide shipping. Contact us for matching timers, suppressors, or auxiliary contact blocks to complete your control system.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
