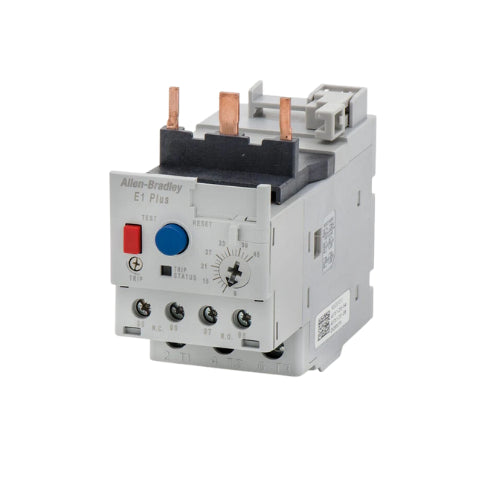

Allen-Bradley 193-EEFD Overload Relay
Condition: New
Warranty: 1 Year
Available
We deliver worldwide
sales@ddpartssolution.com
📞 +1 (689) 275-3558
Product Description:
The Allen-Bradley 193-EEFD is a solid-state overload relay from the Bulletin 193-ED E1 Plus series.3 This device provides comprehensive overload protection for three-phase AC motors. It features a wide adjustable current range of 9 to 45 Amps and offers multiple selectable trip classes (10, 15, 20, and 30), providing flexibility for various motor starting and running characteristics.4 It also offers both auto and manual reset options and uses screw-type terminals for connections.5 It is designed for use with appropriate Allen-Bradley contactors (consult documentation for specific compatibility) and has a maximum voltage rating of 600V AC.
Key Features:
- Solid-State Technology: Provides accurate and reliable overload protection with a longer lifespan compared to electromechanical overloads.
- Wide Adjustable Current Range (9-45A): Offers greater flexibility in protecting a wider range of motor sizes.6
- Multiple Selectable Trip Classes (10, 15, 20, 30): Allows for fine-tuning the overload protection to match the specific motor and application requirements. Different trip classes provide different tripping times under overload conditions.7
- Auto/Manual-Auto Reset: Offers the option for automatic reset after a trip (after a cool-down period) or manual reset, or manual with auto reset after a longer time.8
- Screw-Type Terminals: Provides secure and reliable wiring connections.9
- 600V AC Maximum: Suitable for applications with up to 600V AC supply voltage.10
Technical Specifications:
- Product Type: Solid-State Overload Relay
- Catalog Number: 193-EEFD
- Series/Bulletin: 193-ED E1 Plus
- Number of Phases: 3
- Current Adjustment Range: 9 - 45 A11
- Trip Classes: 10, 15, 20, 30 (Selectable)
- Reset Type: Auto/Manual-Auto
- Maximum Voltage: 600V AC
Applications:
- Motor protection in various industrial applications
- Applications requiring different trip classes (e.g., high-inertia loads, frequent starts)
- HVAC systems
- Pumps
- Conveyors
- Machine tools
