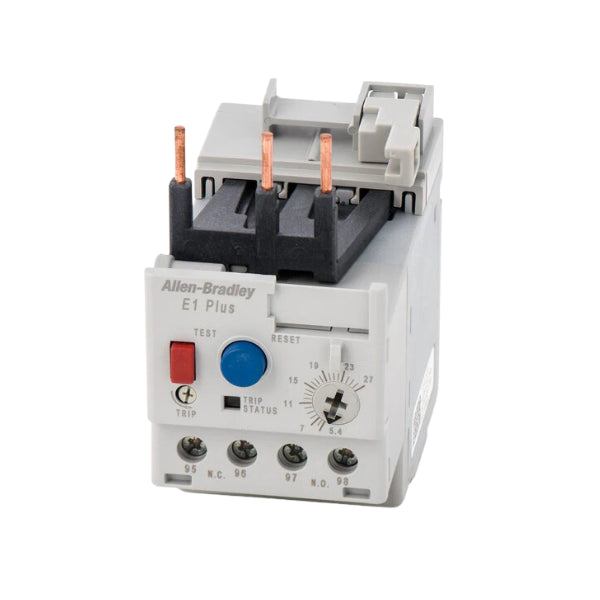

Allen Bradley 193-ED1EB E1 Plus Solid State Overload Relay,

Product Description:

The Allen Bradley 193-ED1EB E1 Plus Solid State Overload Relay is a reliable protection solution designed to safeguard motors and equipment from overload conditions. With an adjustment range of 5.4-27A for three-phase systems, this solid-state overload relay offers enhanced performance and durability.

This relay features a fixed trip class 10, ensuring that overload conditions are detected and addressed within a specified time frame, providing effective motor protection. The manual reset function allows operators to easily reset the relay after an overload condition, ensuring minimal downtime.

Specifically designed for use with Bulletin 100-C09 to 100-C23 contactors, this relay provides motor protection in industrial applications, handling up to a 600V AC max. Whether in industrial control systems or other electrical installations, the 193-ED1EB E1 Plus relay offers reliable, efficient protection for motors and electrical circuits.

Key Specifications:

• Model: Allen Bradley 193-ED1EB
• Type: E1 Plus Solid State Overload Relay
• Current Adjustment Range: 5.4 - 27A (for 3-phase motors)
• Voltage Rating: 600V AC max
• Trip Class: Fixed Class 10
• Reset Type: Manual Reset
• For Use With: Bulletin 100-C09 to 100-C23 Contactors
• Application: Motor Overload Protection in industrial settings

Physical Dimensions:

• Mounting Type: Directly mounted to contactor
• Dimensions: Compact design for ease of installation
• Weight: Lightweight for easy handling and installation

Key Features:

1. Wide Adjustment Range: Covers a current range of 5.4-27A, suitable for a variety of industrial applications.
2. Fixed Trip Class 10: Ensures effective protection with a pre-configured trip class for fast overload detection.
3. Manual Reset: Allows for manual reset after an overload event, minimizing operational disruptions.
4. Compatibility: Designed for use with Bulletin 100-C09 to 100-C23 contactors, ensuring seamless integration in industrial systems.
5. High Voltage Capacity: Capable of handling up to 600V AC max, providing protection in high voltage systems.

Applications:

• Industrial Control Systems: Protects motors in a variety of automation and control systems.
• Motor Protection: Ideal for safeguarding motors in pumps, conveyors, and other machinery.
• Electrical Installations: Provides overload protection for equipment in high voltage systems up to 600V AC.

Why Choose the Allen Bradley 193-ED1EB?

The Allen Bradley 193-ED1EB E1 Plus Solid State Overload Relay provides superior motor protection with manual reset and a fixed trip class 10 for reliable overload response. Its adjustable current range (5.4-27A) makes it suitable for a wide variety of applications, while its compatibility with Bulletin 100-C09 to 100-C23 contactors ensures easy integration into existing systems. Protect your motors from overload damage and ensure reliable performance in demanding environments with the 193-ED1EB E1 Plus Overload Relay.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
