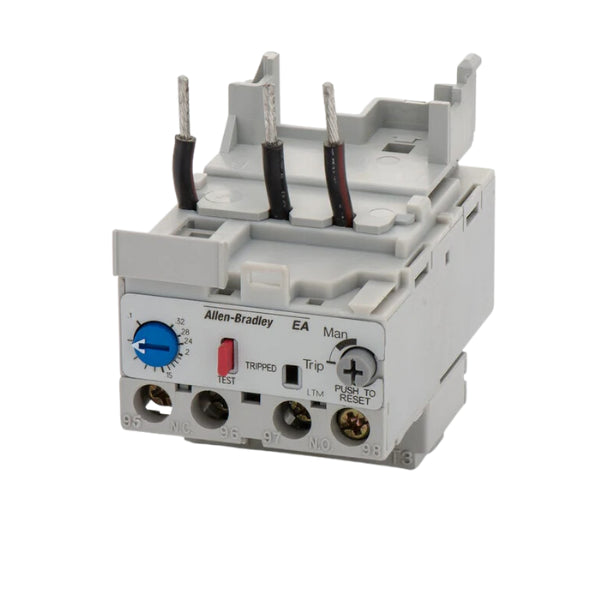

Allen-Bradley 193-EA1FB Electronic Motor Protection Overload

Product Description:

The Allen-Bradley 193-EA1FB Electronic Motor Protection Solid State Overload Relay is a compact, energy-efficient solution designed to provide advanced motor protection compared to traditional bimetallic overload relays. This self-powered relay offers a 3.7-12A adjustable current range, making it versatile for a wide array of motor applications.

Equipped with phase loss protection and a trip class of 10, it ensures optimal motor safety by preventing damage caused by phase loss conditions. Its manual reset feature, visible trip indicator, and manually operated trip function provide user-friendly operation and easy diagnostics. Additionally, the relay includes 1 N.O. and 1 N.C. isolated auxiliary contacts, offering flexibility for integration into control circuits.

The 193-EA1FB is compatible with Allen-Bradley Bulletin 100-M05 to 100-C23 contactors, making it a perfect fit for various motor control systems.

Key Features:

• Adjustment Range: 3.7-12A, allowing compatibility with a range of motor sizes.
• Compact Size: Saves space in control panels.
• Manual Reset: Simplifies the process of restoring functionality after a trip.
• Phase Loss Protection: Prevents damage to motors caused by phase loss conditions.
• Low Energy Consumption: Consumes only 150 mW, reducing operating costs.
• Ambient Temperature Compensation: Maintains performance consistency in varying temperatures.
• Trip Class 10: Offers fast response to overcurrent situations.
• Auxiliary Contacts: Includes 1 N.O. and 1 N.C., providing flexibility in system design.

Technical Specifications:

• Relay Type: Solid State Overload Relay
• Adjustment Range: 3.7-12A
• Reset Method: Manual reset
• Contacts:
  • Auxiliary: 1 Normally Open (N.O.), 1 Normally Closed (N.C.)
  • Isolated design for enhanced safety
• Protection: Phase loss, ambient temperature compensation
• Energy Consumption: 150 mW
• Trip Class: 10
• Trip Indicator: Visible for quick diagnostics
• Compatibility: Designed for use with Bulletin 100-M05…100-C23 Contactors
• Operating Temperature: Standard industrial range

Applications:

• Industrial Motor Control: Protect motors in industrial automation and process control applications.
• HVAC Systems: Ensure reliable motor operation in heating, ventilation, and air conditioning systems.
• Pumps and Compressors: Safeguard critical equipment against phase loss and overcurrent conditions.
• Material Handling: Enhance safety and efficiency in conveyor systems and other material-handling equipment.

The Allen-Bradley 193-EA1FB provides unmatched reliability and advanced motor protection, making it a trusted choice for demanding industrial environments. With its compact design, low energy consumption, and robust features, it ensures your motors operate safely and efficiently.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
