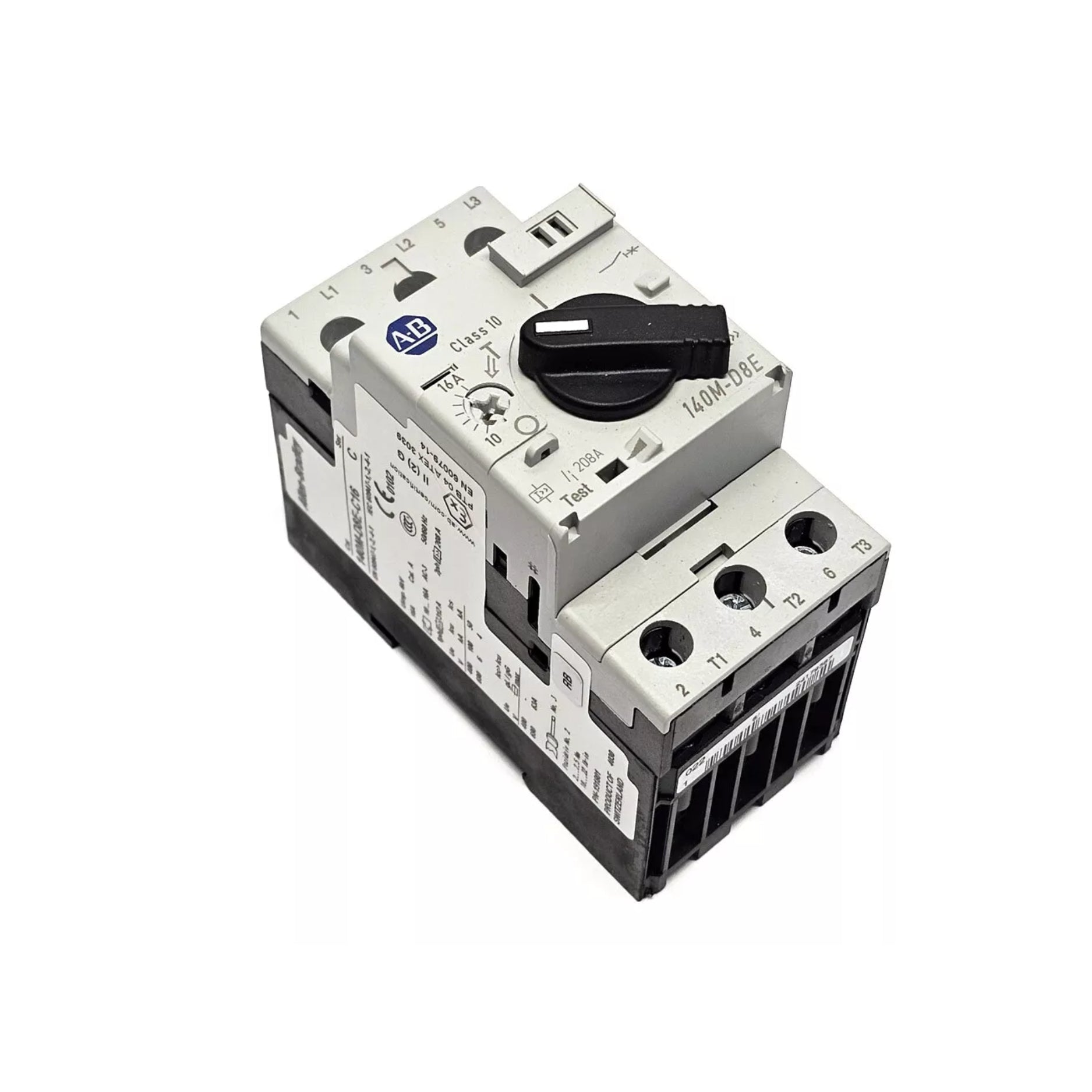

Allen-Bradley 140M-D8E-C16 Bulletin 140M Motor Protection Circuit

Product Description:

The Allen-Bradley 140M-D8E-C16 is a high-performance Motor Protection Circuit Breaker from the Bulletin 140M series, designed to provide critical protection to motors in industrial applications. This circuit breaker offers overload protection with a trip class 10, which ensures reliable and efficient motor operation, while also providing short circuit protection via a standard magnetic trip mechanism fixed at 13 x In.

The motor current adjustment range for this breaker spans from 10.0 to 16.0 A, offering flexibility to handle a variety of motor sizes and types. With its Frame Size D, the 140M-D8E-C16 is perfect for use in high-performance industrial environments, ensuring the protection and reliability of motor-driven systems.

Key Specifications:

• Model: Allen-Bradley 140M-D8E-C16
• Type: Motor Protection Circuit Breaker
• Protection:
  • Short Circuit Protection: Standard Magnetic Trip (Fixed at 13 x In)
  • Overload Protection: Trip Class 10
• Motor Current Adjustment Range: 10.0 – 16.0 A
• Frame Size: D
• Application: Motor protection in industrial applications
• Compliance: Meets international standards for motor protection

Physical Dimensions:

• Frame Size: D (Compact design for panel mounting)
• Weight: Varies based on packaging and configuration
• Mounting: Panel Mount

Key Features:

1. Magnetic Short Circuit Protection: Standard trip function ensures fast and reliable protection against short circuits.
2. Overload Protection: Trip Class 10 ensures effective protection from motor overloads, increasing motor life.
3. Adjustable Current Range: Current adjustment from 10.0 – 16.0 A to accommodate a wide variety of motor ratings.
4. High Performance: Designed for use in demanding industrial applications, ensuring optimal motor protection and system reliability.
5. Frame Size D: Ideal for panel installations, providing space-saving solutions without compromising performance.

Applications:

• Motor Protection: Prevents overloads and short circuits, ideal for motor-driven equipment in industrial systems.
• Industrial Equipment: Suitable for use in a wide range of industries, including manufacturing, automation, and power distribution.
• Control Panels: Can be integrated into motor control panels for seamless protection of motors.

Why Choose the Allen-Bradley 140M-D8E-C16?

The Allen-Bradley 140M-D8E-C16 is a reliable motor protection circuit breaker, designed to provide overload and short circuit protection to your motor systems. With its adjustable current range and trip class 10, it ensures that motors are protected from overloads while optimizing their performance. Its compact Frame Size D design allows for easy installation in control panels, making it a perfect choice for high-performance industrial environments. Choose the 140M-D8E-C16 for peace of mind, knowing your motors are well-protected from electrical faults.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
