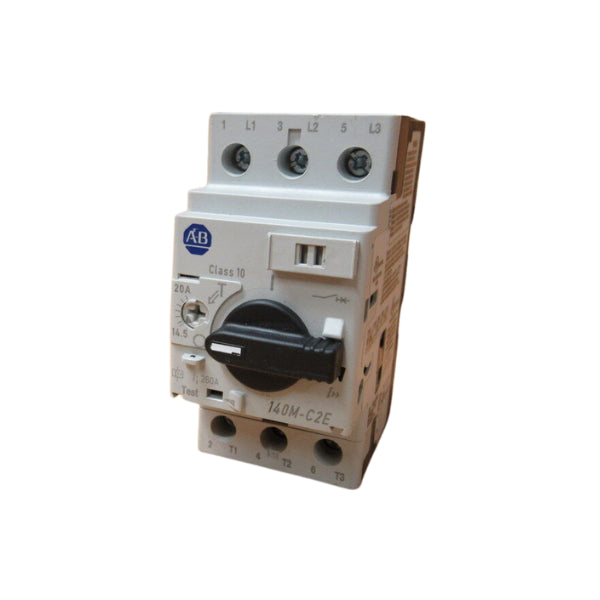

Allen Bradley 140M-C2E-C20 Motor Protection Circuit Breaker

Product Overview:

The Allen Bradley 140M-C2E-C20 Motor Protection Circuit Breaker (MPCB) is designed to provide reliable and effective protection for electric motors in industrial and commercial applications. This breaker offers a current range of 14.5 - 20 A, with a fixed magnetic trip (13 x In) for enhanced motor protection. With its standard performance and frame size C design, this MPCB ensures long-lasting durability and protection against overloads, short circuits, and other motor-related faults. It is ideal for use in motor control centers and various motor-driven equipment.

Technical Specifications:

• Model: 140M-C2E-C20
• Current Rating: 14.5 - 20 A
• Trip Type: Standard Magnetic Trip (Fixed at 13 x In)
• Frame Size: C
• Protection Type: Overload, Short-circuit, and Phase Loss Protection
• Voltage Rating: 480V AC
• Poles: 3
• Mounting: Direct Mount or Panel Mount
• Dimensions (H x W x D): 104mm x 90mm x 71mm (approx.)
• Weight: Approx. 1.4 kg (3.1 lbs)
• Environmental Rating: NEMA Type 1 (Indoor Use)

Benefits:

• Reliable Motor Protection: Provides dependable protection for motors against overloads, short circuits, and phase loss.
• Adjustable Magnetic Trip: The fixed magnetic trip offers quick response to short circuits, ensuring fast disconnection to avoid damage.
• Durable Construction: Built with high-quality materials to withstand harsh industrial environments and prolong the life of both the circuit breaker and the motor.
• Easy Integration: Designed for seamless integration with motor control systems and can be easily mounted in control panels.
• Prevents Motor Damage: Safeguards motors from potential electrical faults that could lead to expensive repairs or replacements.

Applications:

• Industrial Motor Control: Ideal for protecting motors in conveyor systems, pumps, fans, and other machinery requiring reliable circuit protection.
• Manufacturing Equipment: Suitable for use in manufacturing environments to ensure motor-driven machines operate safely and efficiently.
• HVAC Systems: Provides essential protection for motors used in heating, ventilation, and air conditioning systems.
• Pumping Stations: Effective in protecting motors driving pumps in water treatment plants or other pumping systems.
• Material Handling: Essential for motors in material handling systems, such as conveyors, to prevent motor damage during operation.

Key Features:

• Magnetic Trip (Fixed): Provides quick disconnection in case of a short circuit with a fixed trip setting of 13 x In.
• Current Range: Adjustable between 14.5 to 20 A, suitable for a wide variety of motor protection needs.
• Frame Size C: Standard frame size that fits a wide range of applications.
• Overload Protection: Safeguards motors from prolonged overloads, enhancing the operational lifespan of equipment.
• Compact Design: Space-efficient design for easy installation in motor control centers and panels.
• NEMA Type 1 Rating: Suitable for indoor use in a variety of industrial and commercial environments.

Why Choose Allen Bradley 140M-C2E-C20 Motor Protection Circuit Breaker?

The Allen Bradley 140M-C2E-C20 Motor Protection Circuit Breaker is the perfect choice for industries looking for reliable and efficient motor protection. Its standard magnetic trip ensures fast reaction to electrical faults, providing superior protection against overloads and short circuits. With a current range of 14.5 - 20 A, this circuit breaker is versatile and fits a wide range of motor protection needs. Its robust design, coupled with a compact frame size, ensures reliable performance even in harsh industrial environments. Choosing this MPCB means safeguarding your motors, reducing downtime, and extending the life of your equipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
