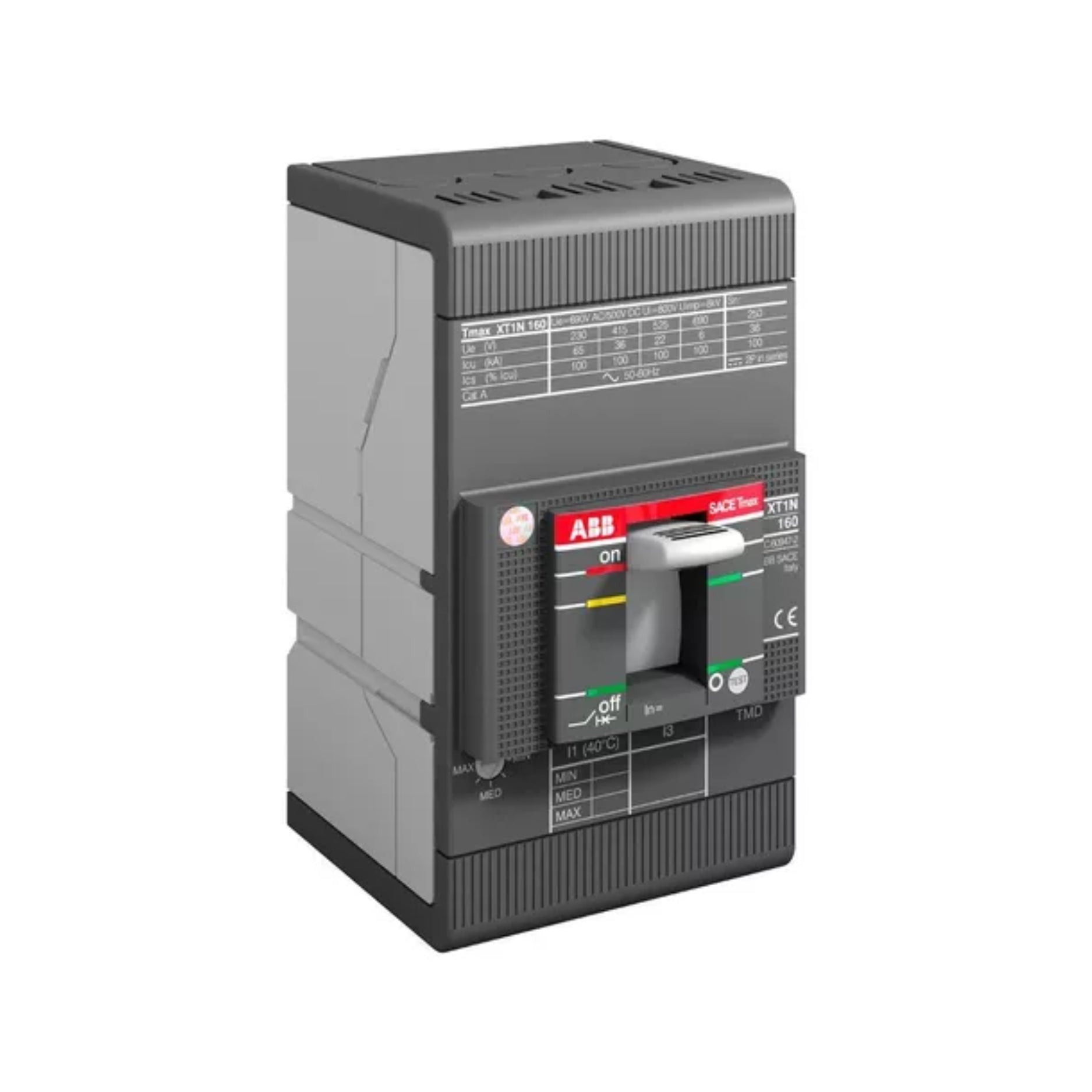

ABB XT1N 160 | 1SDA067416R1 | Molded Case Circuit Breaker 160A, 3-Pole, IEC

ABB XT1N 160 | Molded Case Circuit Breaker 160A, 3-Pole, IEC

Global Commercial Alias: XT1N 160
Product ID: 1SDA067416R1
ABB Type Designation: XT1N 160
Catalog Description: TMAX XT1 molded case circuit breaker, 160 A, 3-pole, IEC standard

Overview

The ABB XT1N 160 is a compact and robust molded case circuit breaker (MCCB) with a rated current of 160 A and 3-pole configuration. It ensures reliable circuit protection under demanding industrial and commercial conditions, complying with IEC 60947-2 standards.

Key Features

• Rated Current (In): 160 A

• Poles: 3

• Rated Insulation Voltage (Ui): 800 V

• Rated Operating Voltage (Ue): Up to 690 V AC

• Breaking Capacity: Up to 36 kA at 415 V AC (dependent on model variant)

• Standards Compliance: IEC 60947-2

• Trip Unit Type: Thermal-magnetic or electronic (varies by variant)

• Mounting: Fixed or plug-in base options

• Connection Type: Front terminal connections

• Accessories: Compatible with auxiliary contacts, shunt trip, undervoltage release, etc.

Technical Specifications

• Model Number: XT1N 160

• Rated Frequency: 50/60 Hz

• Utilization Category: A

• Mechanical Life: Up to 20,000 operations

• Electrical Life: Up to 10,000 operations (dependent on load)

• Operating Temperature: -25°C to +70°C

• Protection Degree: IP20 (without terminal covers), higher with accessories

• Certifications: CE, EAC, UL, IEC

Applications

• Main and sub-distribution panels

• Industrial plants and machinery

• Commercial buildings and infrastructure

• OEM control systems

• Energy management and safety circuits

Product Description

The XT1N 160 offers high-performance protection for electrical systems, featuring a modular design for easy installation and customization. With advanced breaking performance and reliable trip units, it meets a wide range of application needs, from basic protection to complex automation systems.

Why Choose ABB XT1N 160?

High breaking capacity and reliability
Compact design with flexible installation
Compliant with international standards
Wide range of accessories for enhanced functionality

Order Now

Available for immediate international shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
