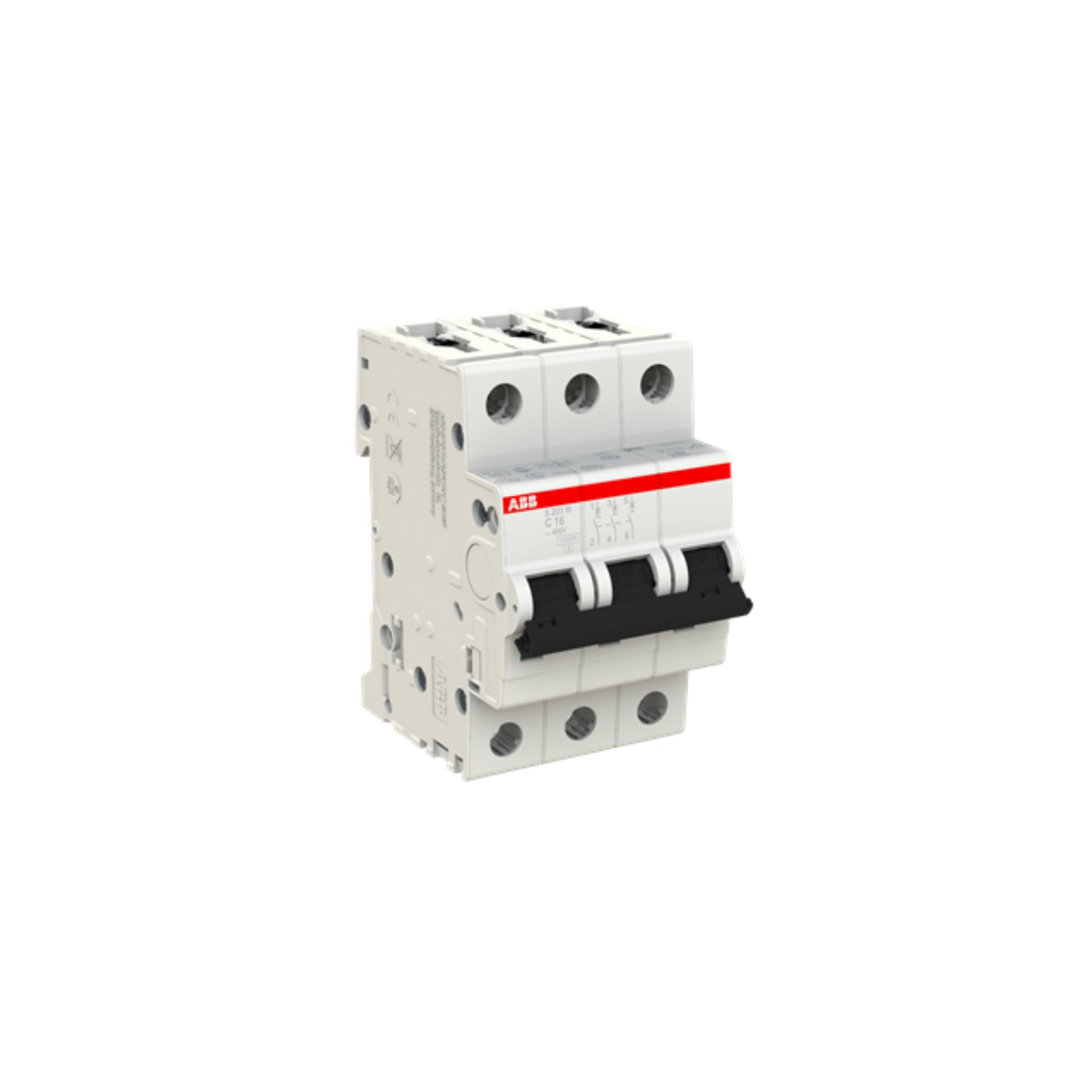

ABB S203M-C16 | Miniature Circuit Breaker

Overview

The ABB S203M-C16 is a high-performance miniature circuit breaker (MCB) designed for efficient protection against short circuits and overloads. With a 16A rated current and a C-characteristic tripping curve, it provides precise and reliable operation in industrial, commercial, and residential electrical systems. The S203M series is known for its robust design, long-term durability, and easy installation, making it a trusted solution for electrical protection.

Key Features

• Model: ABB S203M-C16
• Function: Miniature circuit breaker for short-circuit and overload protection
• Rated Current: 16A
• Poles: 3
• Tripping Curve: C (suitable for general applications with moderate inrush currents)
• Breaking Capacity: 10kA at 230/400V AC
• Reliable Performance: Ensures fast and precise tripping to protect circuits
• Compact & Durable: Space-saving design with high-quality materials

Technical Information

• Number of Poles: 3
• Rated Current: 16A
• Rated Voltage: 400V AC
• Breaking Capacity: 10kA
• Tripping Characteristic: C-curve
• Mounting Type: DIN rail
• Operating Temperature: -25°C to +55°C
• Weight: 0.45 kg

Applications

• Industrial Electrical Panels: Ensures safe power distribution
• Commercial Installations: Protects lighting and power circuits
• Residential Electrical Systems: Provides reliable overload and short-circuit protection
• Automation Systems: Ideal for control and distribution panels

Benefits

• Reliable Protection: Prevents damage to electrical circuits and connected devices
• Easy Installation: DIN rail mounting for quick integration
• Compact Design: Saves space in control panels
• Long-Term Durability: Engineered for harsh industrial environments

The ABB S203M-C16 is a high-quality miniature circuit breaker, ensuring safe and efficient electrical protection in industrial, commercial, and residential applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
