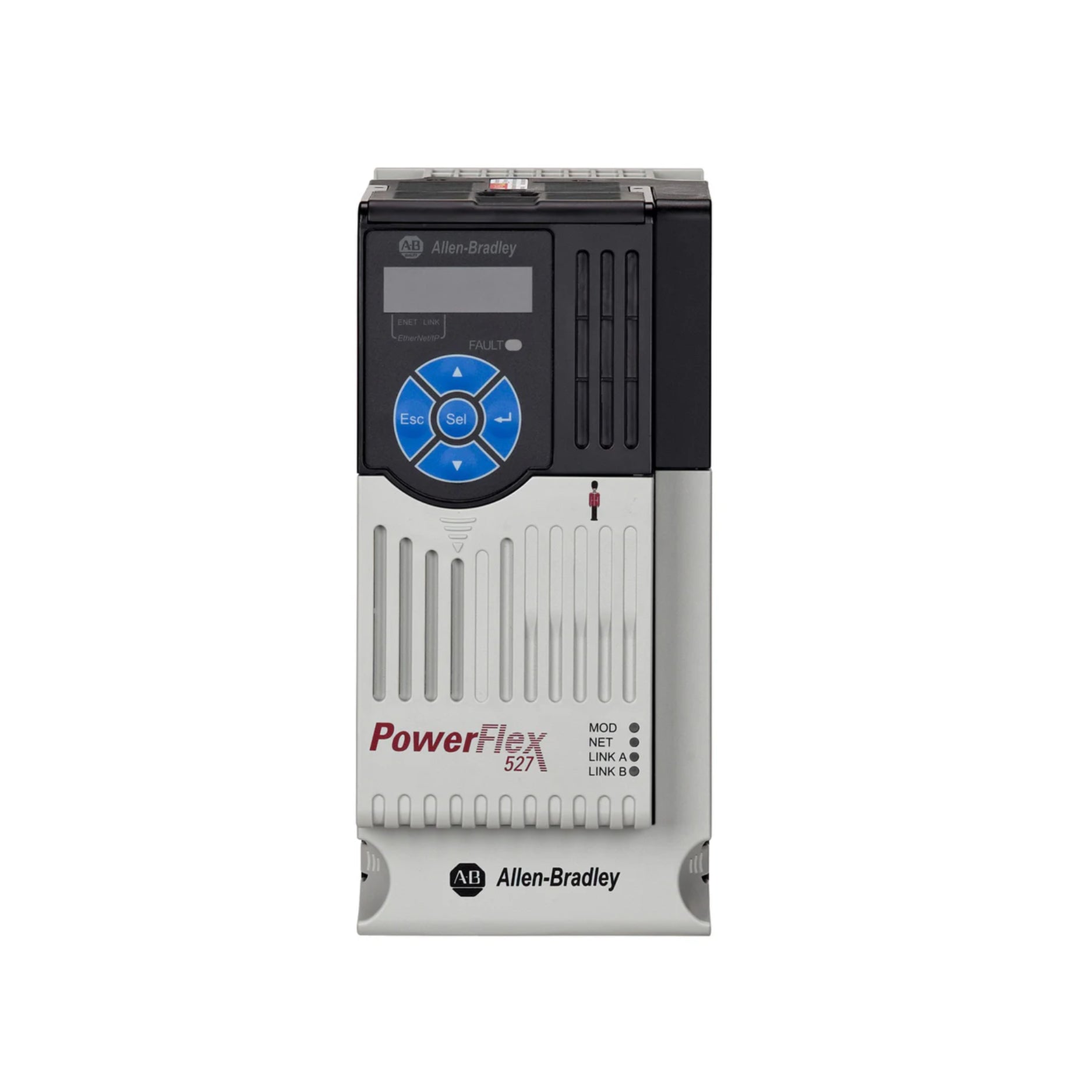

Allen Bradley 25C-D010N104 PowerFlex 527 AC Drive, 480V AC, 10A,

Product Overview:

The Allen Bradley 25C-D010N104 PowerFlex 527 AC Drive is a high-performance, versatile drive designed to deliver reliable control for industrial applications. Featuring an embedded dual-port EtherNet/IP for seamless communication and integrated safety features, this drive is ideal for demanding environments. Operating at 480V AC, it supports both normal and heavy-duty applications with a power rating of 5HP/4kW and a 10A current capacity. Designed with a compact Frame B form factor, this drive comes in an IP20 NEMA / Open Type enclosure, ensuring reliable protection without the need for a filter.

Technical Specifications:

• Model Number: 25C-D010N104
• Power Supply: 480V AC, 3 Phase
• Current Rating: 10A
• Power Rating: 5HP / 4kW
• Duty Type: Normal and Heavy Duty
• Frame Size: B
• Enclosure Type: IP20 NEMA / Open Type
• Integrated Safety: Yes
• Communication: Embedded Dual-Port EtherNet/IP
• Filter: No filter
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Mounting: Wall-mounted
• Weight: Approx. 6.9 kg (15.2 lbs)
• Dimensions (HxWxD): 243mm x 170mm x 180mm (9.57in x 6.69in x 7.09in)

Benefits:

• Reliable Control: With 480V AC support and 5HP power rating, this drive is ideal for demanding applications requiring precision control and high efficiency.
• EtherNet/IP Connectivity: Embedded dual-port EtherNet/IP ensures seamless communication for ease of integration into existing network infrastructures.
• Integrated Safety: Features integrated safety functions to protect equipment and personnel, ensuring compliance with safety standards.
• Compact Design: Frame B design allows for easy integration into control panels with limited space, maximizing the use of available space.
• Normal and Heavy Duty Applications: Suitable for a wide range of industrial environments, from normal to heavy-duty use.

Applications:

• Industrial Automation: Perfect for use in various automation systems requiring reliable motor control.
• Conveyor Systems: Can be used in conveyor systems for controlling speed, torque, and acceleration.
• Pumps and Fans: Ideal for controlling pumps, fans, and other motor-driven applications in industrial settings.
• Material Handling: Reliable for material handling systems that require variable speed control and safety features.

Key Features:

• Embedded Dual-Port EtherNet/IP: Provides high-speed communication and easy integration into Ethernet-based networks.
• Integrated Safety: Built-in safety features for enhanced protection of both equipment and personnel.
• Compact Frame B Size: Efficient use of space with a compact design, perfect for integration in crowded control panels.
• NEMA / Open Type Enclosure (IP20): Suitable for most industrial environments without the need for additional filters.
• Multi-Application Capability: Supports both normal and heavy-duty applications, offering flexibility for various industries.

Why Choose the Allen Bradley 25C-D010N104 PowerFlex 527 AC Drive?

The Allen Bradley 25C-D010N104 PowerFlex 527 AC Drive is designed for businesses seeking a reliable, high-performance solution for industrial control needs. Its embedded dual-port EtherNet/IP ensures smooth network communication, while integrated safety features enhance security for both workers and machinery. Ideal for a wide range of applications, from conveyor systems to pumps, this drive offers flexibility and durability, making it a smart investment for businesses in need of reliable motor control solutions.

Choose DDPARTS SOLUTION for top-tier automation equipment, competitive pricing, and exceptional customer service. Let us support your industrial automation projects with the best in the market.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
