Siemens 6EP1933-2EC41 | SITOP UPS500S Maintenance-Free

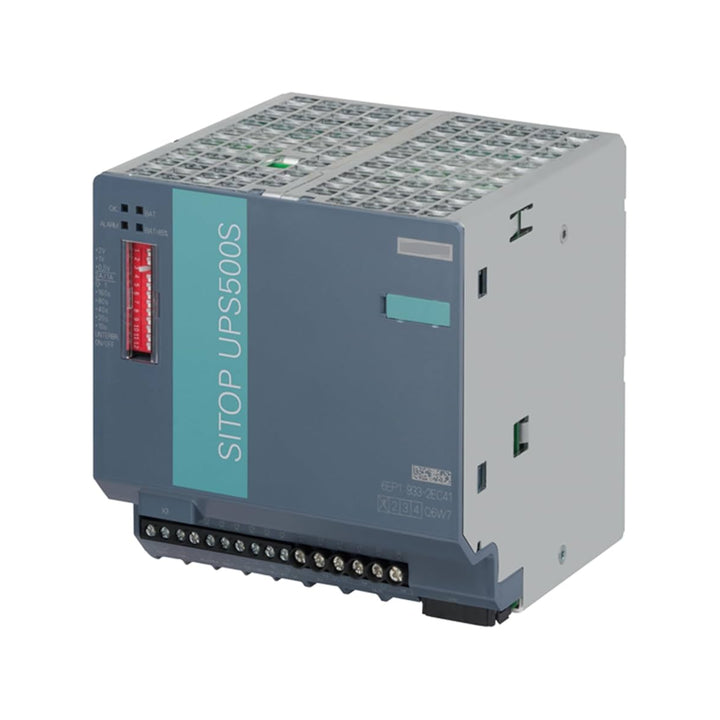

Siemens 6EP1933-2EC41 | SITOP UPS500S Uninterruptible Power Supply

Overview:

The Siemens 6EP1933-2EC41 is part of the SITOP UPS500S series, designed to provide maintenance-free uninterruptible power supply (UPS) solutions for critical industrial applications. Equipped with a USB interface, this UPS ensures seamless integration with automation systems. It offers an energy storage capacity of 2.5 kWs, with both input and output rated at 24 V DC and a maximum output current of 15 A. The unit features a degree of protection IP20, making it suitable for various industrial environments.

Key Features:

• Maintenance-Free Operation: Utilizes capacitive energy storage, eliminating the need for battery maintenance.
• USB Interface: Facilitates easy communication and integration with PC-based automation systems.
• Energy Storage Capacity: Provides 2.5 kWs to support critical processes during power interruptions.
• Input/Output Specifications: Operates at 24 V DC for both input and output, delivering up to 15 A output current.
• Compact Design: Dimensions of 120 x 125 x 125 mm and a weight of approximately 1 kg allow for easy installation in space-constrained environments.
• High Efficiency: Achieves an efficiency of approximately 97.5%, ensuring minimal energy loss during operation.

Technical Specifications:

• Input Voltage Range: 22 to 29 V DC
• Output Voltage: 24 V DC ±3%
• Buffering Time: At 15 A load: 3 seconds; at 10 A load: 6 seconds; at 5 A load: 15 seconds; at 2 A load: 38 seconds. Longer buffering times achievable with expansion modules.
• Charging Current: Factory set to approximately 1 A; adjustable to 2 A if required.
• Protection Features: Includes reverse polarity protection for both input voltage and energy storage unit connections.
• Operating Temperature Range: 0°C to +60°C
• Storage Temperature Range: -40°C to +70°C
• Relative Humidity: 5% to 95% (non-condensing)
• Mounting: Suitable for DIN rail mounting.

Applications:

• Industrial Automation: Ensures uninterrupted power supply to critical control systems, preventing data loss and system downtime during power outages.
• Process Control: Maintains continuous operation of essential process equipment, safeguarding against interruptions that could lead to product loss or quality issues.
• PC-Based Automation Solutions: Provides sufficient energy to save operating and application data and to close software applications in a defined manner during power failures.

Note: For detailed technical information and installation guidelines, please refer to the official Siemens documentation for the 6EP1933-2EC41.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
