Omron S8VK-G24024 | 240W DIN Rail Power Supply

Omron S8VK-G24024 | 240W DIN Rail Power Supply with 24V DC Output

Overview

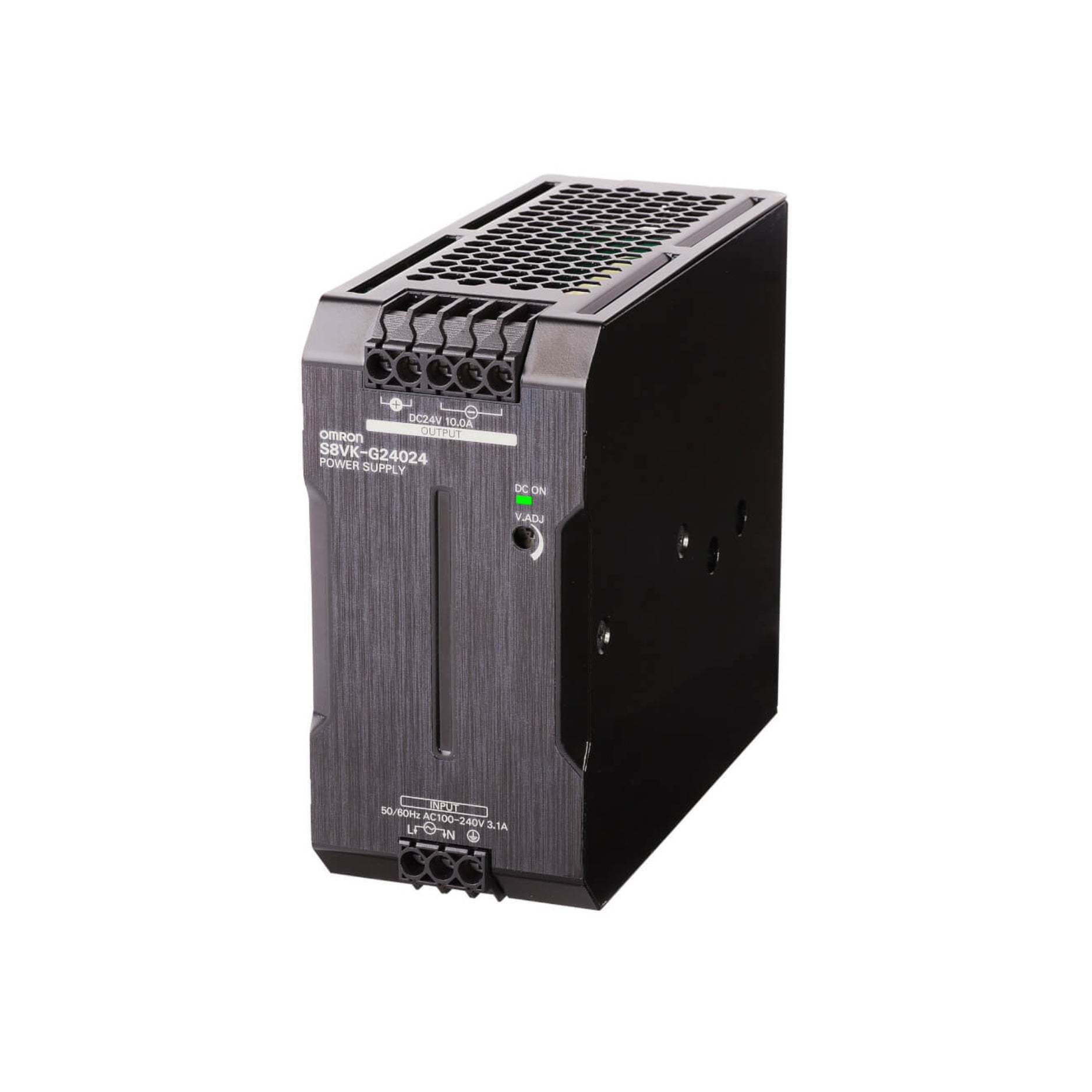

The Omron S8VK-G24024 is a compact and reliable DIN rail-mounted power supply, providing a stable 24V DC output at 10A. Designed for industrial applications, it features a universal input voltage range and operates efficiently across a wide temperature spectrum. Its robust design ensures reliable performance in demanding environments.

Key Features

• Output Power: 240W with 24V DC output at 10A

• Universal Input Voltage: Accepts 85–264V AC and 90–350V DC inputs

• High Efficiency: Achieves up to 92% efficiency

• Compact Design: Measures 60 mm (W) × 125 mm (H) × 140 mm (D), saving panel space

• Wide Operating Temperature Range: Functions reliably from -40°C to +70°C

• Power Boost Function: Provides 120% (12A) power boost for handling inrush currents

• Easy Wiring: Equipped with screw terminal connections for simplified installation

• DIN Rail Mountable: Facilitates quick and secure installation

• Safety Compliance: Conforms to UL508/62368-1, CSA C22.2 No. 107.1/62368-1, EN 62477-1, EN62368-1 standards

Technical Specifications

• Model Number: S8VK-G24024

• Input Voltage Range:

  • AC: 85–264V AC (47–63 Hz)

  • DC: 90–350V DC

• Output Voltage: 24V DC

• Output Current: 10A (12A with power boost)

• Efficiency: Approximately 92% at 230V AC input

• Inrush Current: 16A at 115V AC; 32A at 230V AC

• Leakage Current: 0.5 mA max. at 100V AC; 1.0 mA max. at 200V AC

• Overload Protection: Yes, automatic reset

• Overvoltage Protection: Yes, shuts off input voltage and requires manual reset

• Operating Temperature: -40°C to +70°C

• Storage Temperature: -40°C to +85°C

• Operating Humidity: 0% to 95% (non-condensing)

• Mounting Method: DIN rail

• Dimensions: 60 mm (W) × 125 mm (H) × 140 mm (D)

• Weight: Approximately 900 g

• Certifications: CE, cULus, Lloyd’s, EN 60204-1 PELV, EN 61558-2-16

Applications

• Industrial Automation: Powers controllers, sensors, and actuators in automated systems

• Process Control: Provides reliable power for instrumentation and control devices

• Building Automation: Supplies power to HVAC controls, lighting systems, and security devices

• Machinery: Suitable for various types of industrial machinery requiring stable 24V DC power

Why Choose Omron S8VK-G24024?

• Reliable Performance: Designed to operate in harsh industrial environments with high efficiency

• Flexible Input Range: Accommodates a wide range of AC and DC inputs for global compatibility

• Compact and Space-Saving: Slim profile allows for efficient use of control panel space

• Easy Installation and Wiring: DIN rail mounting and screw terminals simplify setup

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron automation components, DIN rail accessories, and other related products to complete your system.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
