Overview

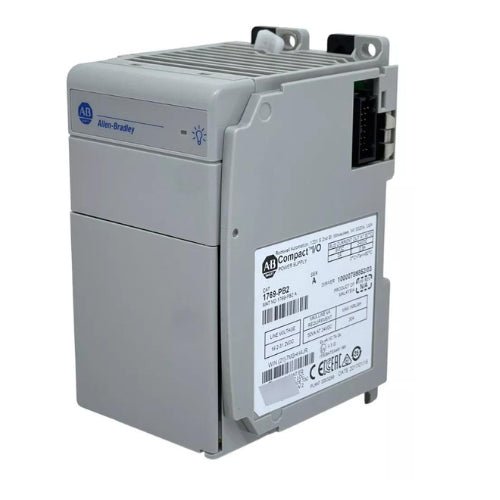

The Allen-Bradley 1769-PB2 is a 24V DC power supply module designed for the CompactLogix and MicroLogix 1500 platforms. It provides regulated power to controller systems and I/O modules, delivering up to 2.0 A at 5V DC and 0.8 A at 24V DC.

Key Features

• Input Voltage: 24V DC nominal (range: 19.2–31.2V DC)

• Output Current:

  • 2.0 A at 5V DC

  • 0.8 A at 24V DC

• Backplane Current Supply:

  • Supports CompactLogix controllers and up to 8 I/O modules (depending on load)

• Protection Features:

  • Electronic protection for overload and short-circuit

  • Status indicators for diagnostics

• Mounting: DIN rail or panel mount

Technical Specifications

• Model: 1769-PB2

• Series: CompactLogix Power Supplies

• Inrush Current: 30 A max

• Isolation Voltage: 75V (continuous), reinforced insulation

• Operating Temperature: 0°C to +60°C

• Dimensions (W x H x D): 70 mm x 118 mm x 87 mm

• Weight: Approx. 0.4 kg

• Certifications: CE, UL, c-UL-us, Class I Div 2, ATEX

Applications

• CompactLogix Controller Power Supply

• MicroLogix 1500 Expansion

• Panel-Based Control Systems

• Automation Systems in Manufacturing and Processing

Why Choose the Allen-Bradley 1769-PB2?

• Reliable Power Output for PLC Systems

• Compact and DIN Rail Mountable

• Supports a Wide Range of Operating Voltages

• Integrated Protection for System Safety

Order Now

Fast shipping and worldwide delivery available.
