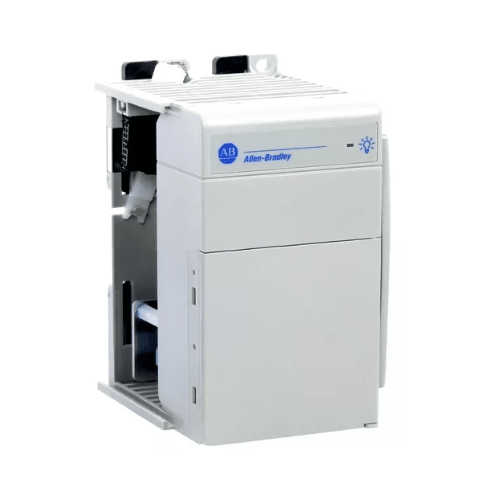

Allen-Bradley 1769-PA2 | Compact I/O Power Supply

Allen-Bradley 1769-PA2 | Compact I/O AC Power Supply – 2A @ 5V DC, 0.8A @ 24V DC

Overview

The Allen-Bradley 1769-PA2 is a Compact I/O power supply module designed to provide power to 1769 CompactLogix or MicroLogix I/O systems. It accepts a wide-range 120/240V AC input and delivers 2A at 5V DC and 0.8A at 24V DC, supporting both logic and field devices within the I/O chassis.

Compact and easy to mount, the 1769-PA2 ensures reliable and efficient power distribution to your Compact I/O modules in machine-level and distributed control applications.

Key Features

• Input Voltage: 120/240V AC

• Output: 2A @ 5V DC, 0.8A @ 24V DC

• Supports Compact I/O Modules – Compatible with CompactLogix and MicroLogix 1500

• DIN Rail or Panel Mountable – Easy to integrate in control enclosures

• Status Indicators – Visual power status feedback

Technical Specifications

• Catalog Number: 1769-PA2

• Series: Compact I/O

• Input Voltage: 85–265V AC

• Output Power: 2A @ 5V DC, 0.8A @ 24V DC

• Max Module Support: Up to 8 I/O modules (module dependent)

• Mounting Type: DIN rail or panel mount

• Operating Temperature: 0°C to +60°C

• Weight: Approx. 500 g

Applications

• CompactLogix Systems – Reliable power for I/O modules

• OEM Machines – Compact power solution for small systems

• Distributed I/O Stations – For use with MicroLogix 1500 platforms

Why Choose the 1769-PA2?

• Trusted Rockwell quality for Compact I/O systems

• Flexible AC input range for global voltage standards

• Simple integration into your automation architecture

Order Now

In stock and ready to ship worldwide. Ideal for powering Compact I/O modules in both local and distributed control systems.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
