Fuji 2MBI450VN-120-50

Fuji 2MBI450VN-120-50

Overview

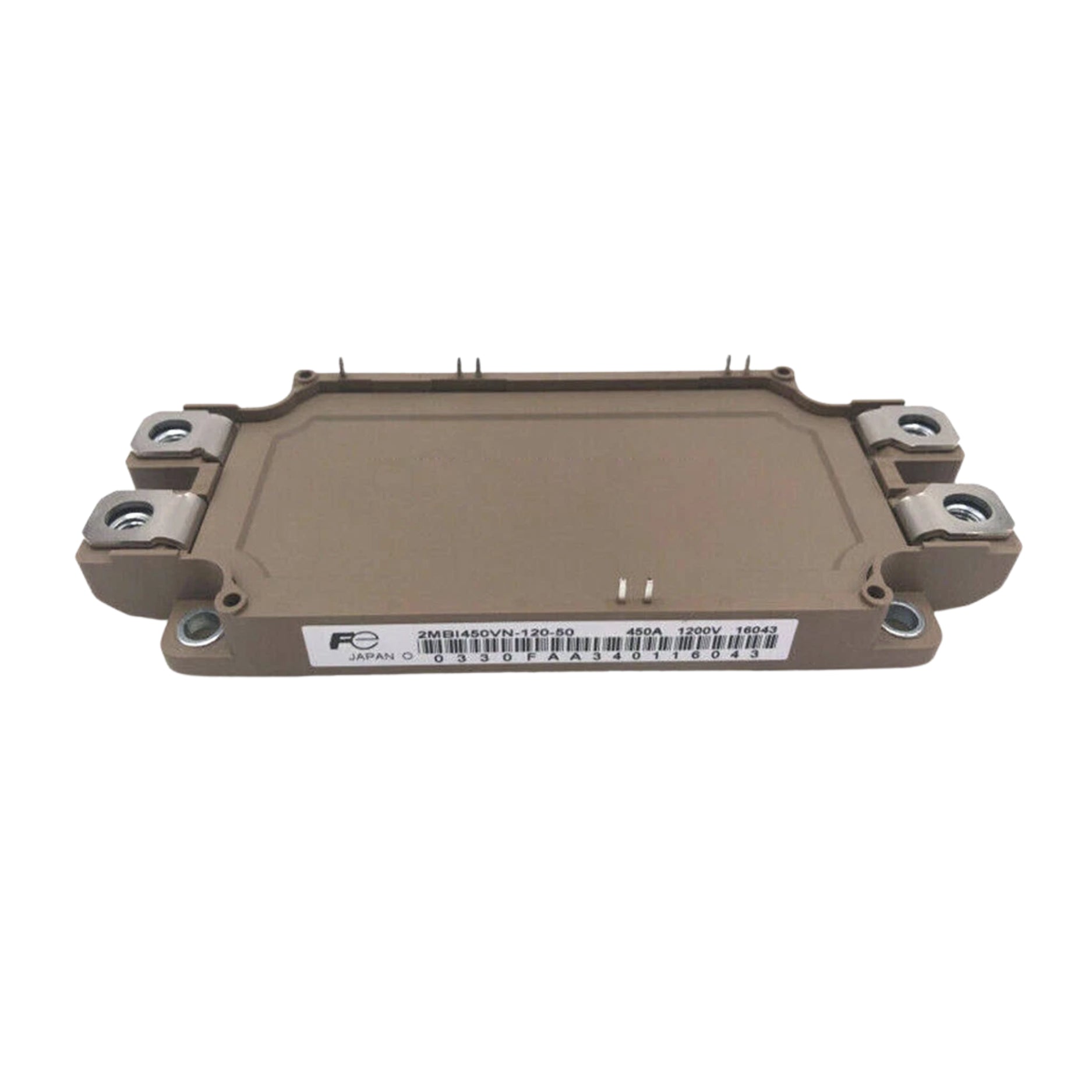

The Fuji 2MBI450VN-120-50 is a high-performance IGBT module featuring a dual insulated-pack design, rated for 1200 V and 450 A. With integrated free-wheeling diodes and fast switching capability, this module is ideal for use in high-power motor drives, industrial inverters, and energy systems that demand reliability and efficiency.

Key Features

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 450 A

• Dual IGBT configuration with diodes

• Low Vce(sat) for efficient power use

• Optimized for high-speed switching

• Insulated baseplate for thermal safety

• Chassis-mount compact package

Technical Specifications

• Part Number: 2MBI450VN-120-50

• Manufacturer: Fuji Electric

• Configuration: Dual-pack

• Vce (Max): 1200 V

• Ic (Rated): 450 A

• Vce(sat): ~2.1–2.6 V typical

• Mounting Type: Chassis mount

• Package: Insulated base module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Switching Frequency: Up to 20 kHz

Applications

• Industrial motor control

• High-voltage inverters

• Renewable energy systems

• Power supplies and UPS

• CNC and robotics systems

Why Choose the 2MBI450VN-120-50

• Delivers 450 A at 1200 V in a compact module

• Excellent thermal and electrical performance

• Integrated diodes reduce external components

• Durable construction for industrial use

• Backed by Fuji's reputation for quality

Order Now

The Fuji 2MBI450VN-120-50 IGBT module is available and ships worldwide.
