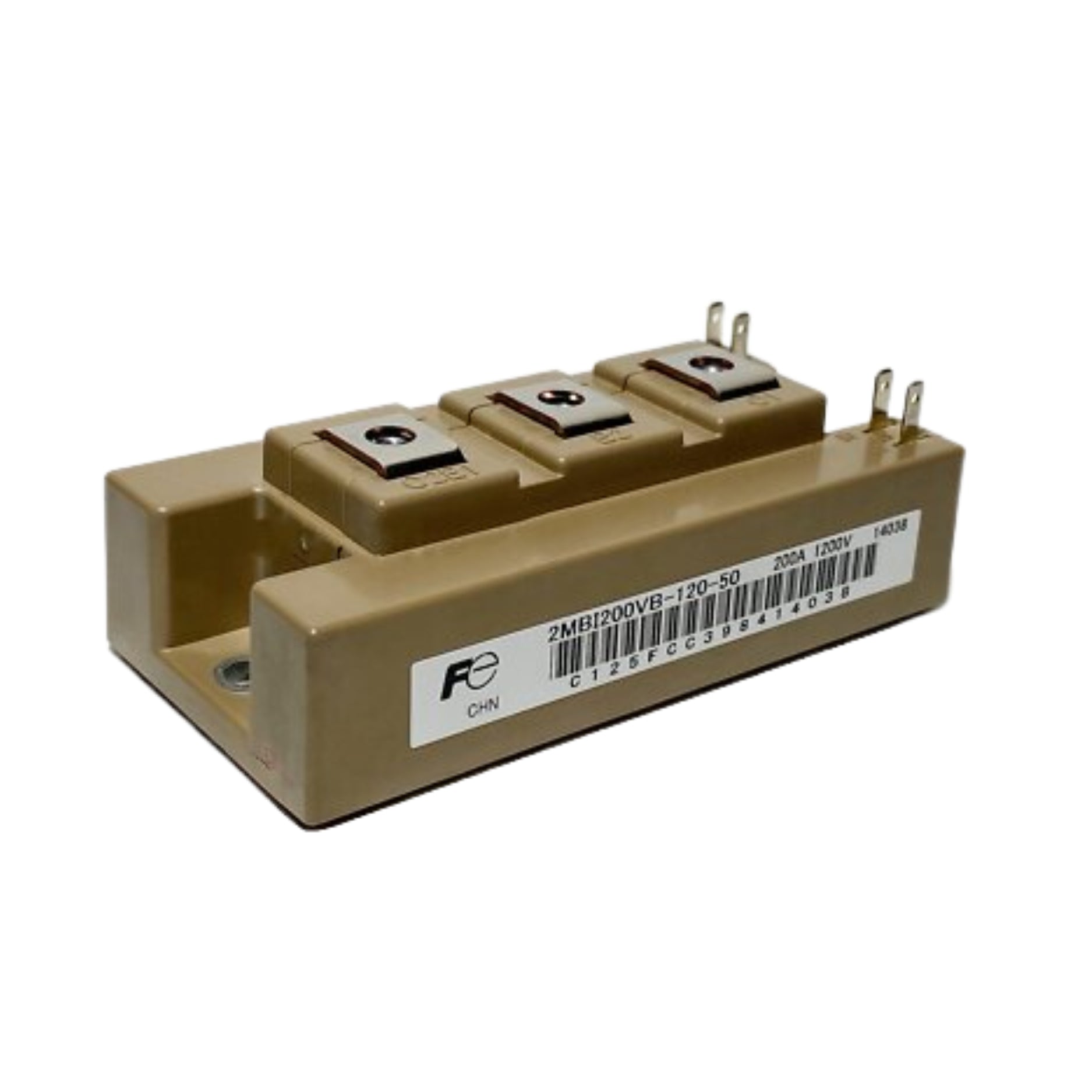

Fuji 2MBI200VB-120-50

Fuji 2MBI200VB-120-50

Overview

The Fuji 2MBI200VB-120-50 is a dual-pack IGBT module engineered for efficient high-voltage power switching in compact industrial systems. Rated at 200 A and 1200 V, it combines low saturation voltage and fast switching speeds, making it ideal for inverters, servo drives, and other power electronics applications requiring both performance and compactness.

Key Features

• Dual IGBT configuration

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 200 A

• Built-in free-wheeling diodes

• Low Vce(sat) for reduced conduction losses

• High-speed switching with minimal EMI

• Insulated baseplate for thermal isolation

• Chassis-mountable for easy system integration

Technical Specifications

• Part Number: 2MBI200VB-120-50

• Manufacturer: Fuji Electric

• Configuration: Dual-pack

• Vce (Max): 1200 V

• Ic (Rated): 200 A

• Typical Vce(sat): ~2.0 V

• Package Type: Chassis mount module

• Baseplate: Isolated

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Power Dissipation: ~750–900 W (approx.)

Applications

• Compact industrial inverters

• Motor control systems

• Power conversion for automation

• Renewable energy systems

• High-efficiency switching equipment

Why Choose the 2MBI200VB-120-50

• Reliable Fuji performance for mid-power systems

• Thermal efficiency and compact footprint

• Proven dual-IGBT topology for flexible use

• Designed for high-voltage and continuous-duty cycles

• Simplified integration into control panels

Order Now

The Fuji 2MBI200VB-120-50 IGBT module is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
