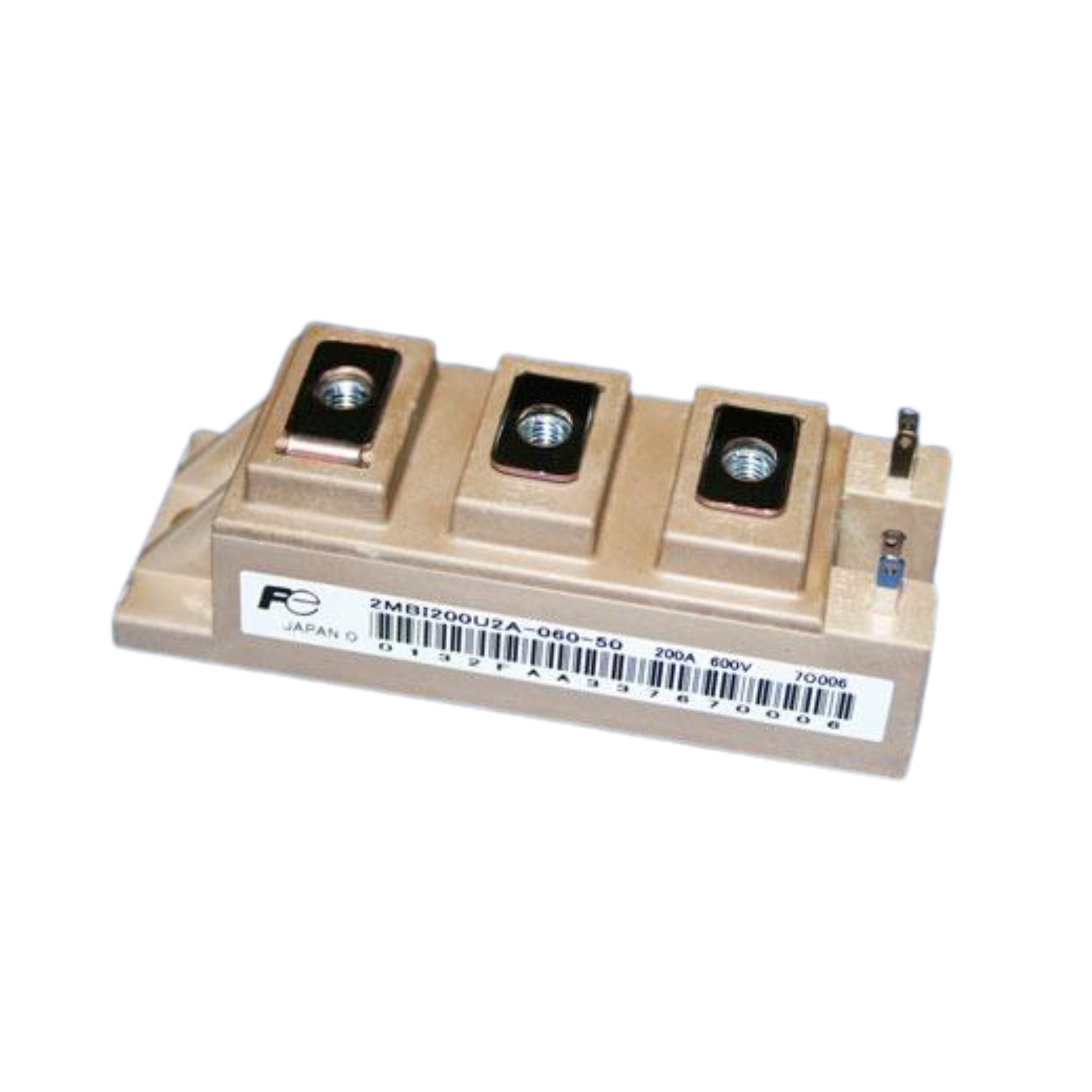

Fuji 2MBI200U2A-060-50

Fuji 2MBI200U2A-060-50

Overview

The Fuji 2MBI200U2A-060-50 is a high-speed dual IGBT module rated at 200 A and 600 V, ideal for demanding industrial applications such as motor drives, inverters, and power supplies. It features an insulated baseplate and built-in fast recovery diodes for enhanced efficiency and thermal performance.

Key Features

• Collector-Emitter Voltage: 600 V

• Continuous Collector Current: 200 A

• Dual IGBT configuration

• Integrated free-wheeling diodes

• High-speed switching capability

• Low Vce(sat) for efficient conduction

• Insulated base for improved thermal isolation

• Chassis-mount design for industrial environments

Technical Specifications

• Part Number: 2MBI200U2A-060-50

• Manufacturer: Fuji Electric

• Configuration: Dual-pack

• Vce (Max): 600 V

• Ic (Rated): 200 A

• Vce(sat): ~1.8–2.1 V typical

• Mounting Type: Chassis mount

• Package: Insulated base module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Switching Frequency: Up to 20 kHz

Applications

• Industrial motor drives

• High-efficiency inverters

• Renewable energy systems

• UPS and power conditioning units

• CNC machinery and automation

Why Choose the 2MBI200U2A-060-50

• Excellent current capacity in compact form

• Reliable Fuji performance and durability

• Simplifies thermal design with insulated base

• Integrated diodes save space and cost

• Ideal for OEM and industrial retrofit solutions

Order Now

The Fuji 2MBI200U2A-060-50 IGBT module is available and ships worldwide.

Return to the Fuji IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
