Fuji 2MBI150VA-120-50

Fuji 2MBI150VA-120-50

Overview

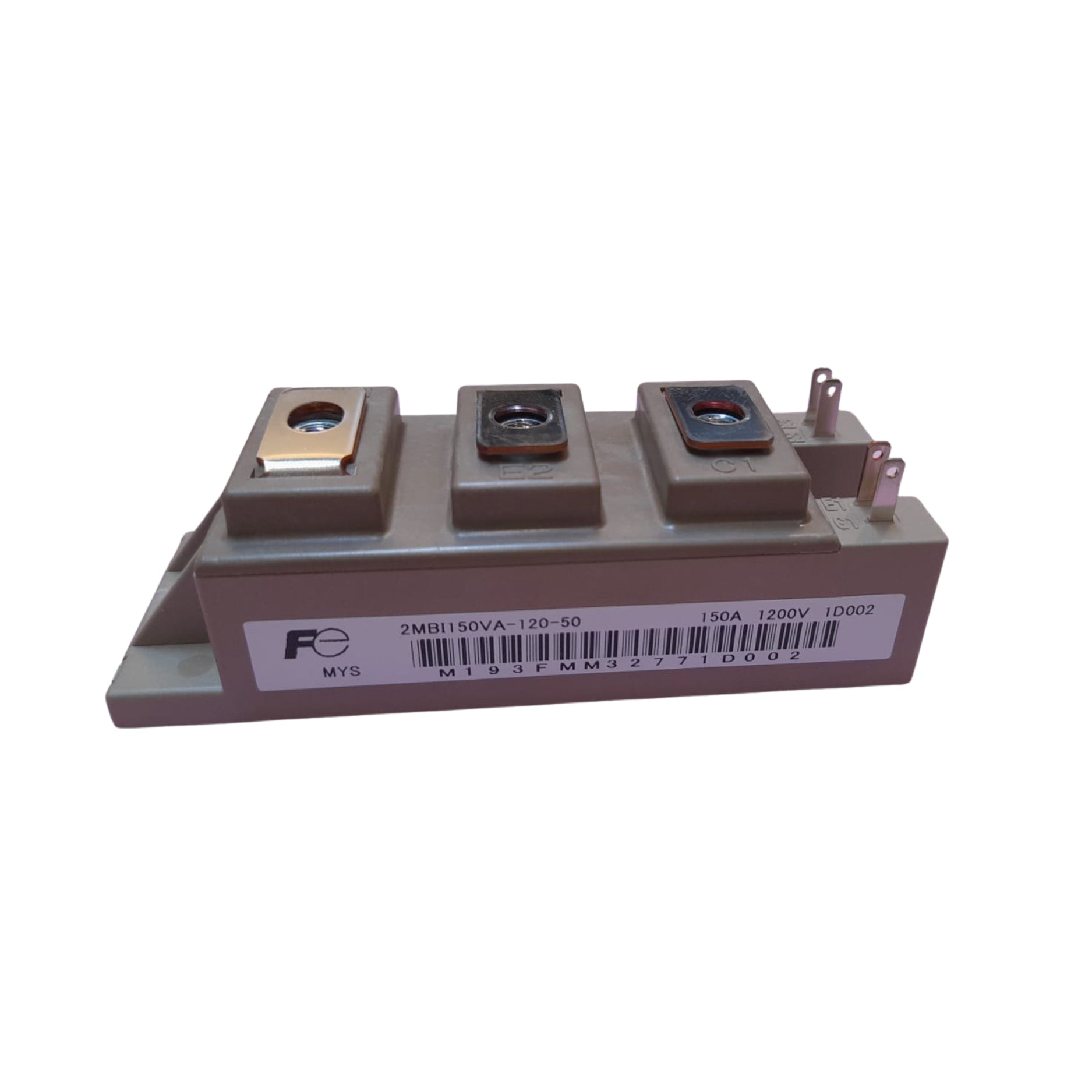

The Fuji 2MBI150VA-120-50 is a compact and efficient dual IGBT module designed for high-voltage switching applications. With a voltage rating of 1200 V and 150 A continuous current, it is ideal for use in motor drives, UPS systems, and industrial inverters. The module offers fast switching, low Vce(sat), and robust thermal management through its insulated baseplate.

Key Features

• Dual IGBT configuration

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 150 A

• Integrated free-wheeling diodes

• Low saturation voltage for reduced energy loss

• Fast switching with minimal EMI

• Insulated baseplate for superior thermal isolation

• Compact chassis-mount design

Technical Specifications

• Part Number: 2MBI150VA-120-50

• Manufacturer: Fuji Electric

• Configuration: Dual-pack

• Vce (Max): 1200 V

• Ic (Rated): 150 A

• Vce(sat): ~2.1 V typical

• Mounting: Chassis mount

• Package: Isolated base module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Power Dissipation: ~700–850 W (approx.)

Applications

• Medium-power industrial inverters

• Motor control and drives

• UPS and power backup systems

• Renewable energy systems

• Automated power electronics

Why Choose the 2MBI150VA-120-50

• Reliable Fuji IGBT technology

• Compact and thermally efficient design

• Ideal for high-voltage, continuous-duty applications

• Easy to integrate and mount

• Long service life under industrial conditions

Order Now

The Fuji 2MBI150VA-120-50 IGBT module is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
