Fuji 2MBI150VA-060-50

Fuji 2MBI150VA-060-50

Overview

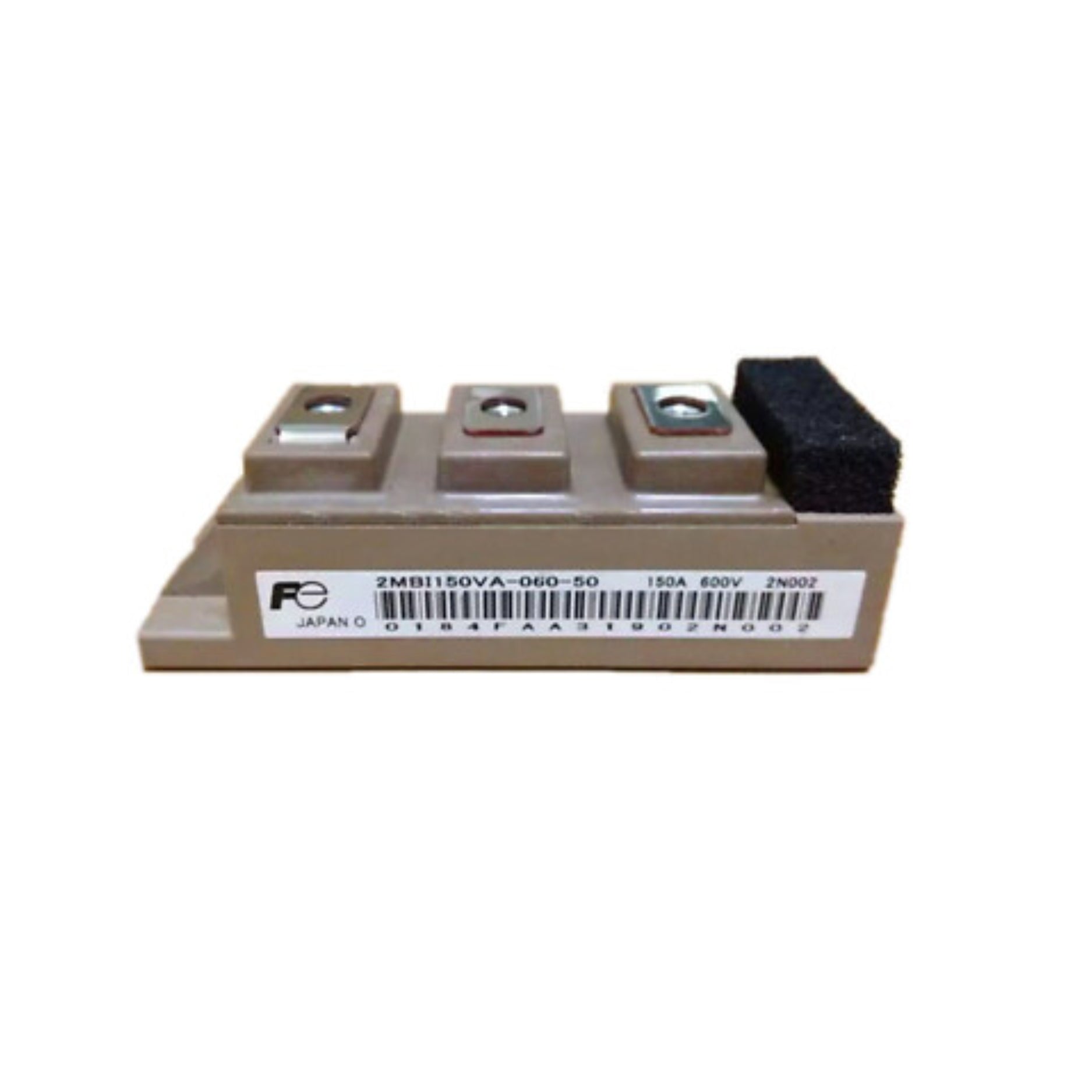

The Fuji 2MBI150VA-060-50 is a compact dual IGBT module designed for efficient switching in low- to mid-voltage industrial applications. With 600 V collector-emitter voltage and 150 A rated current, it offers low conduction losses, high switching speed, and reliable thermal performance—ideal for servo drives, UPS systems, and compact inverter designs.

Key Features

• Dual IGBT configuration

• Collector-Emitter Voltage: 600 V

• Continuous Collector Current: 150 A

• Low saturation voltage for energy savings

• Fast switching response

• Integrated free-wheeling diodes

• Insulated baseplate for thermal isolation

• Chassis-mountable design

Technical Specifications

• Part Number: 2MBI150VA-060-50

• Manufacturer: Fuji Electric

• Configuration: Dual-pack

• Vce (Max): 600 V

• Ic (Rated): 150 A

• Vce(sat): ~2.0 V (typical)

• Power Dissipation: Approx. 600–800 W

• Mounting: Chassis mount

• Package: Isolated base module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

Applications

• Compact servo and motor drives

• Inverter-based power supplies

• UPS and backup systems

• Switching regulators

• Energy-efficient automation

Why Choose the 2MBI150VA-060-50

• Fuji’s proven IGBT reliability

• Efficient switching for compact systems

• Insulated design for easy thermal management

• Ideal for medium-duty industrial loads

• Simplified installation with standard module housing

Order Now

The Fuji 2MBI150VA-060-50 IGBT module is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
