Fuji 2MBI100N-060-03

Fuji 2MBI100N-060-03

Overview

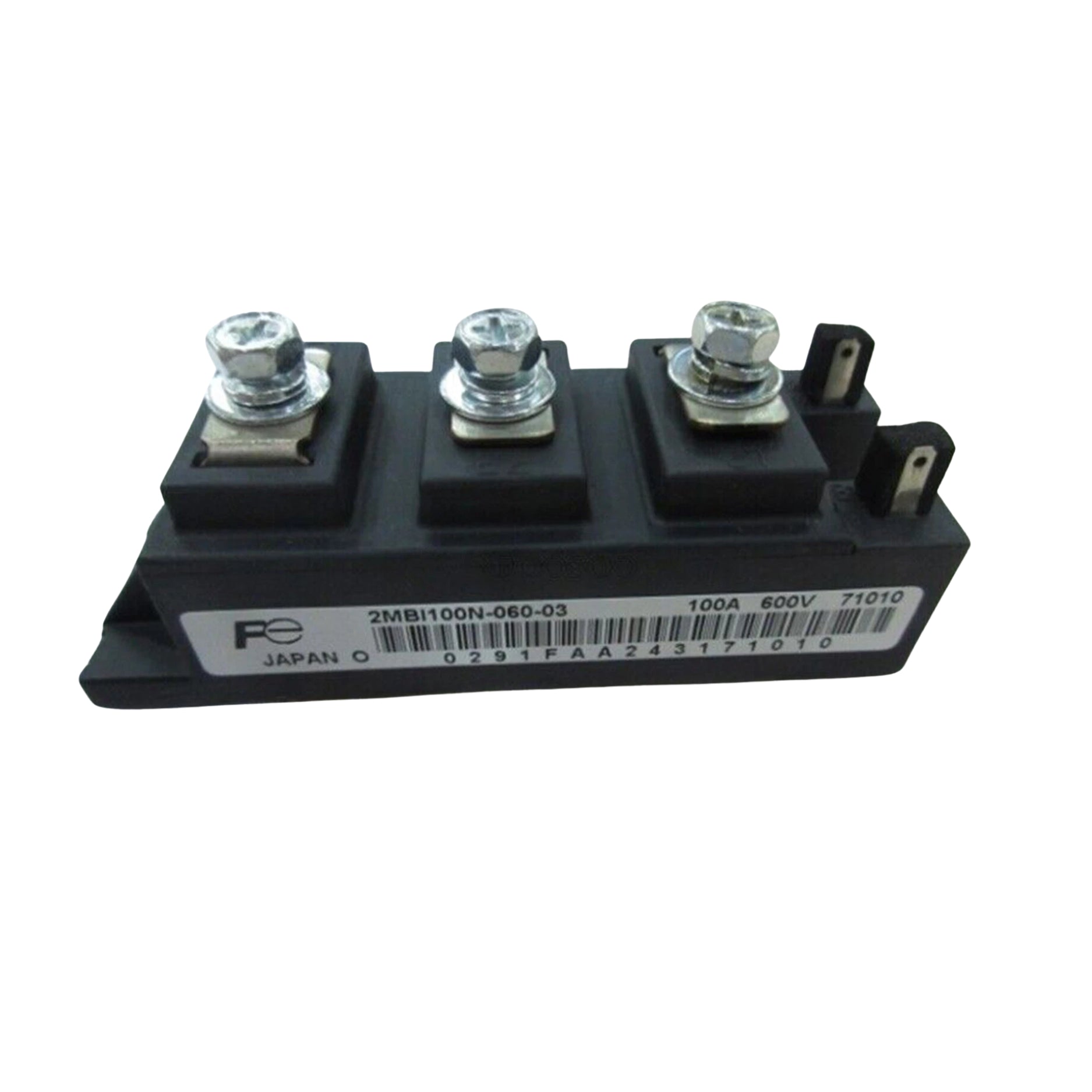

The Fuji 2MBI100N-060-03 is a dual IGBT module engineered for 600 V and 100 A applications, offering high-speed switching and efficient thermal management. With an insulated baseplate and built-in fast recovery diodes, it is ideal for medium-power industrial systems such as inverters, UPS units, and power converters.

Key Features

• Collector-Emitter Voltage: 600 V

• Continuous Collector Current: 100 A

• Dual IGBT configuration

• Built-in fast recovery diodes

• Low Vce(sat) for reduced conduction losses

• Insulated base for effective heat dissipation

• High-speed switching performance

• Rugged chassis-mount design

Technical Specifications

• Part Number: 2MBI100N-060-03

• Manufacturer: Fuji Electric

• Configuration: Dual-pack

• Vce (Max): 600 V

• Ic (Rated): 100 A

• Vce(sat): ~1.9–2.1 V typical

• Mounting Type: Chassis mount

• Package: Insulated module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Switching Frequency: Typically up to 20 kHz

Applications

• Industrial motor control

• Medium-power inverters and converters

• Renewable energy systems

• UPS and backup power systems

• General-purpose automation

Why Choose the 2MBI100N-060-03

• Optimized for efficient 600 V switching

• Compact and durable dual IGBT design

• Built-in diodes for simplified circuit design

• Proven Fuji Electric performance

• Easy integration into industrial equipment

Order Now

The Fuji 2MBI100N-060-03 IGBT module is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
