Fuji 2MBI100HB-120-50

Fuji 2MBI100HB-120-50

Overview

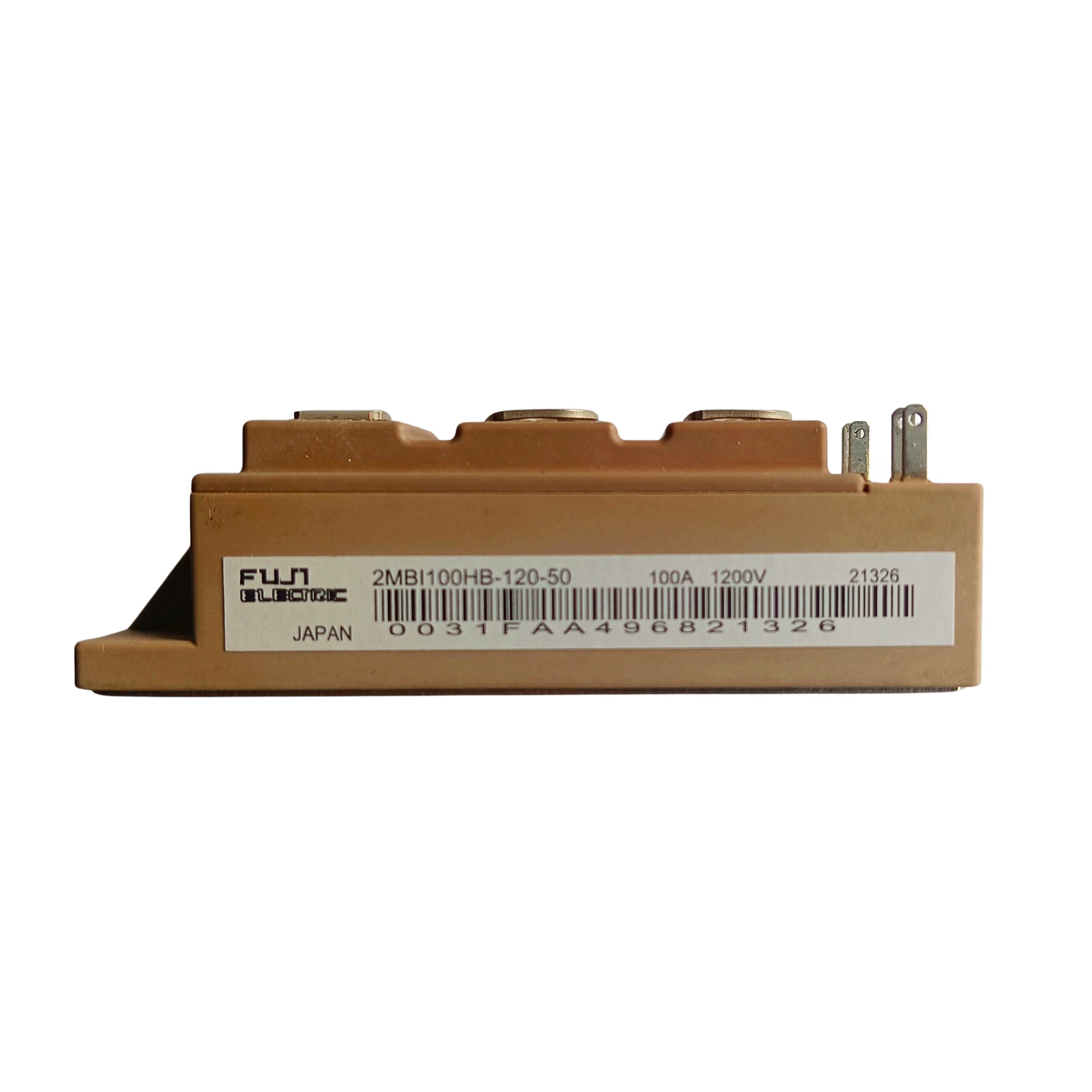

The Fuji 2MBI100HB-120-50 is a dual IGBT module rated at 100 A and 1200 V, ideal for medium-power industrial applications. It features an insulated baseplate, fast recovery free-wheeling diodes, and low Vce(sat), enabling efficient high-speed switching in motor drives, UPS systems, and power converters.

Key Features

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 100 A

• Dual IGBT configuration

• Built-in fast recovery diodes

• Low saturation voltage for reduced conduction losses

• High-speed switching capability

• Insulated base for safe thermal management

• Robust chassis-mount design

Technical Specifications

• Part Number: 2MBI100HB-120-50

• Manufacturer: Fuji Electric

• Configuration: Dual-pack

• Vce (Max): 1200 V

• Ic (Rated): 100 A

• Vce(sat): ~2.0 V typical

• Mounting Type: Chassis mount

• Package Type: Isolated module

• Operating Temp: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Switching Frequency: Typically up to 20 kHz

Applications

• Industrial motor drives

• Power inverters and converters

• Renewable energy systems

• UPS and backup power

• Automation and control systems

Why Choose the 2MBI100HB-120-50

• Compact and reliable dual IGBT solution

• Efficient thermal performance with insulated base

• Low switching and conduction losses

• Fuji Electric’s trusted quality

• Easy to integrate in industrial systems

Order Now

The Fuji 2MBI100HB-120-50 IGBT module is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
