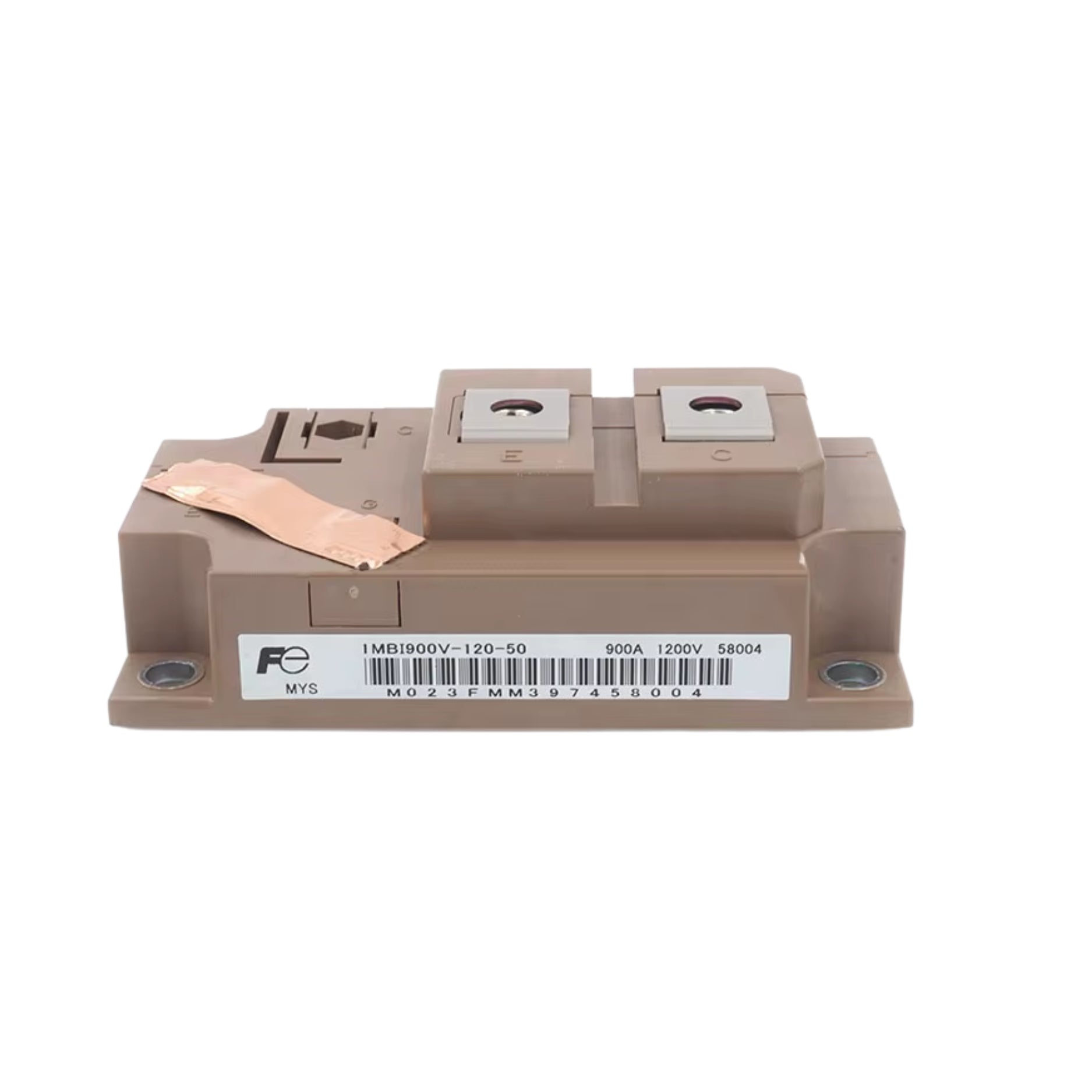

Fuji 1MBI900V-120-50

Fuji 1MBI900V-120-50

Overview

The Fuji 1MBI900V-120-50 is a high-current IGBT module engineered for heavy-duty industrial use. With a 900 A rating and 1200 V blocking voltage, it supports efficient power conversion in demanding systems such as inverters, UPS units, and motor drives. Its insulated base and compact design ensure reliable operation and ease of integration in high-power setups.

Key Features

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 900 A

• Single IGBT configuration

• Fast recovery free-wheeling diode

• Low saturation voltage (Vce(sat))

• High-speed switching capability

• Insulated baseplate for superior thermal management

• Rugged chassis-mount package

Technical Specifications

• Part Number: 1MBI900V-120-50

• Manufacturer: Fuji Electric

• Configuration: Single-pack

• Vce (Max): 1200 V

• Ic (Rated): 900 A

• Vce(sat): ~2.1–2.3 V typical

• Mounting Type: Chassis mount

• Package: Isolated base module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Switching Frequency: Up to 10 kHz

Applications

• High-power inverters and converters

• Industrial motor drives

• Renewable energy systems

• UPS and backup power systems

• Automation in heavy machinery

Why Choose the 1MBI900V-120-50

• Supports very high current with minimal losses

• Designed for heavy-duty industrial systems

• High thermal and electrical reliability

• Compact and easy-to-mount design

• Fuji Electric’s trusted IGBT technology

Order Now

The Fuji 1MBI900V-120-50 IGBT module is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
