Fuji 1MBI600V-120-50

Fuji 1MBI600V-120-50

Overview

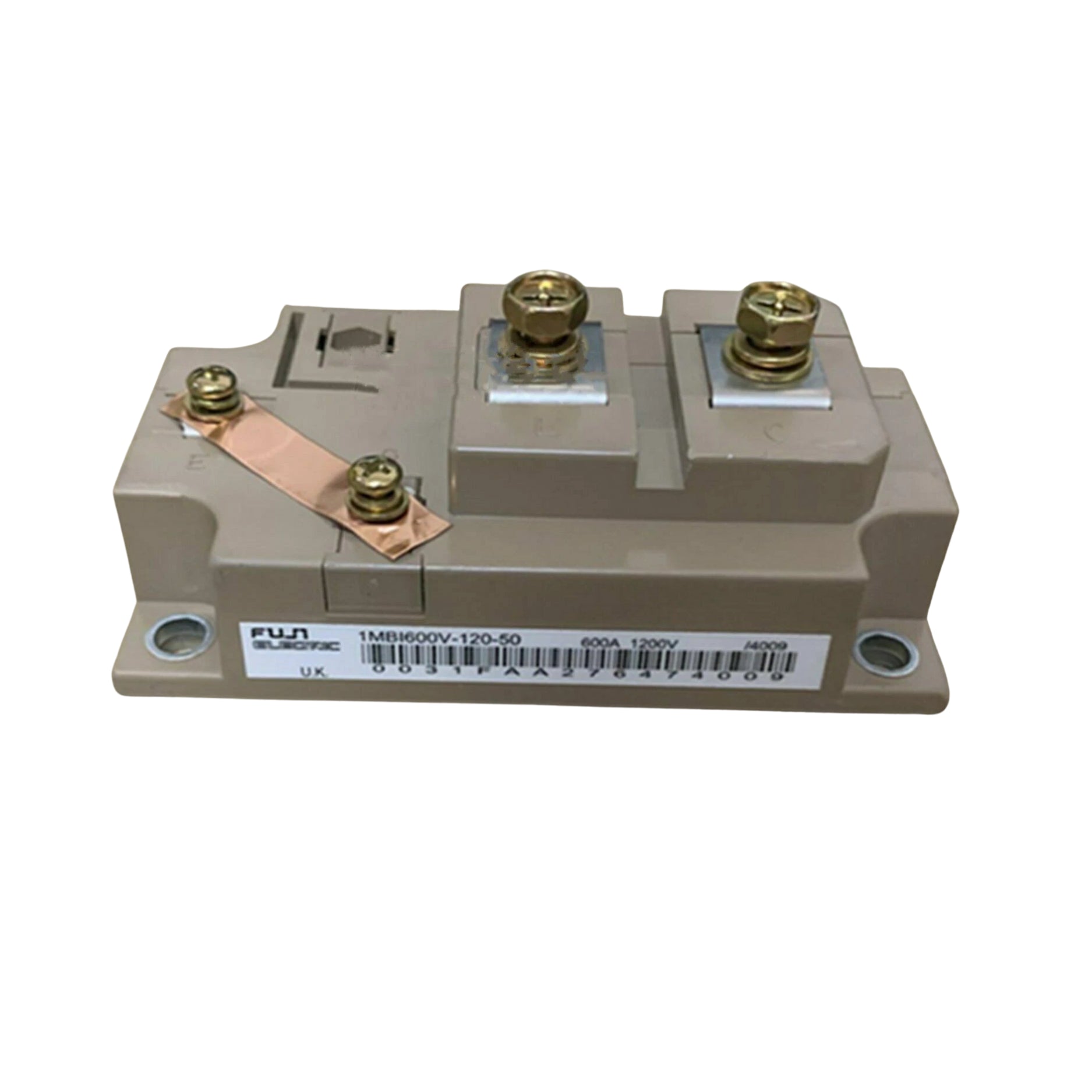

The Fuji 1MBI600V-120-50 is a high-current IGBT module designed for 600 A and 1200 V operation in industrial power systems. It features a single-pack configuration with an insulated baseplate and a built-in free-wheeling diode, making it ideal for high-efficiency switching in inverters, motor drives, and power supplies. The module is known for its rugged performance and thermal reliability.

Key Features

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 600 A

• Single IGBT configuration

• Built-in fast recovery diode

• Low Vce(sat) for reduced conduction losses

• High-speed switching capability

• Chassis mount with insulated baseplate

• Compact and durable design

Technical Specifications

• Part Number: 1MBI600V-120-50

• Manufacturer: Fuji Electric

• Configuration: Single-pack

• Vce (Max): 1200 V

• Ic (Rated): 600 A

• Vce(sat): ~2.1 V typical

• Mounting Type: Chassis mount

• Package Type: Insulated module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Switching Frequency: Up to 10–15 kHz

Applications

• High-power inverters

• Industrial motor drives

• Renewable energy systems

• Uninterruptible power supplies (UPS)

• Heavy-duty automation systems

Why Choose the 1MBI600V-120-50

• High current handling in a compact footprint

• Excellent thermal and switching performance

• Fuji Electric's proven IGBT technology

• Easy to integrate into industrial systems

• Ideal for demanding, high-power applications

Order Now

The Fuji 1MBI600V-120-50 IGBT module is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
