Fuji 1MBI400V-120-50

Fuji 1MBI400V-120-50

Overview

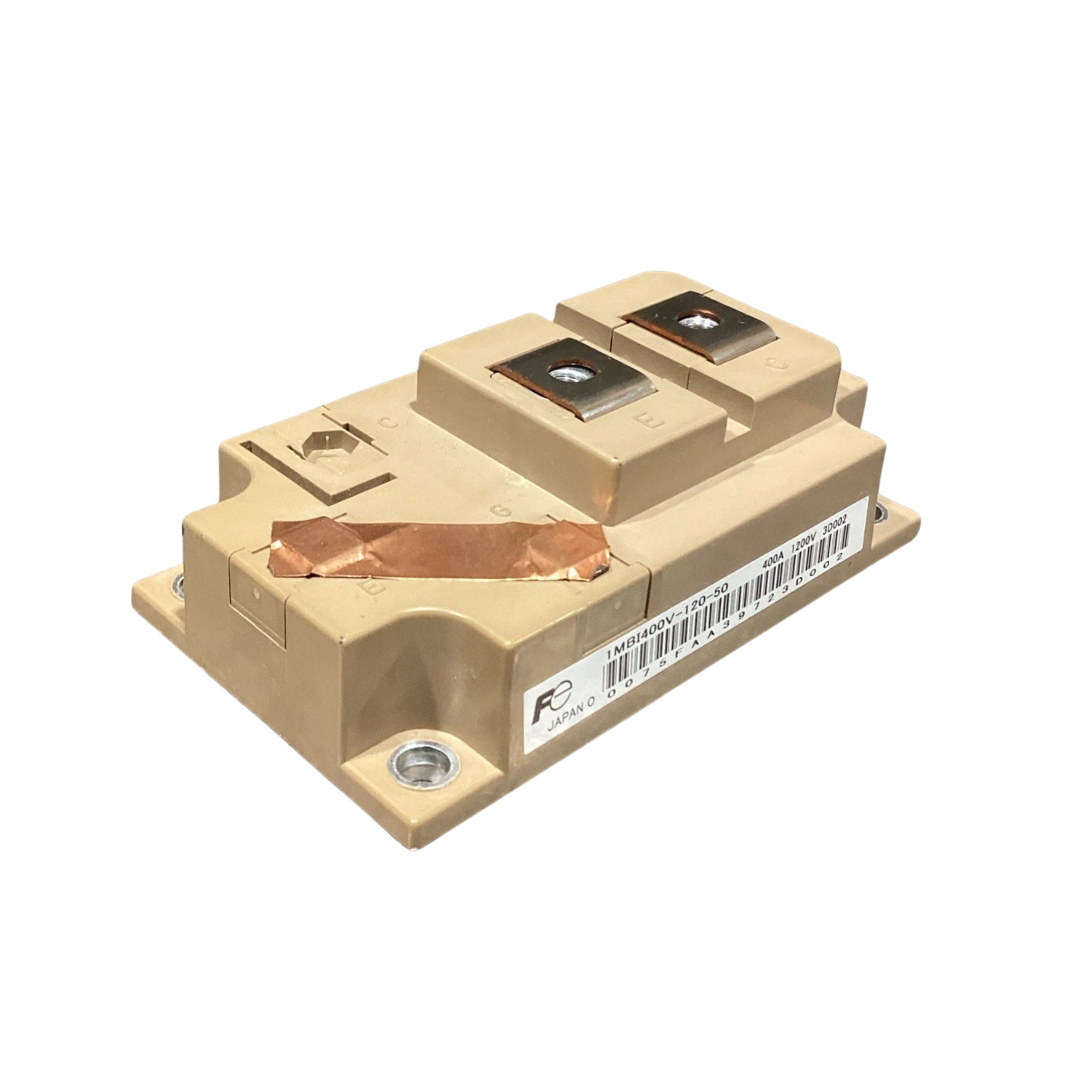

The Fuji 1MBI400V-120-50 is a high-performance single IGBT module rated for 400 A and 1200 V, designed for industrial power control systems. It delivers efficient and reliable switching with low conduction and switching losses, making it suitable for motor drives, power supplies, and inverter applications. The insulated baseplate ensures effective thermal management in compact installations.

Key Features

• Single IGBT configuration

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 400 A

• Built-in free-wheeling diode

• Low Vce(sat) for reduced energy loss

• High-speed switching

• Chassis mount with insulated baseplate

• Rugged and compact design

Technical Specifications

• Part Number: 1MBI400V-120-50

• Manufacturer: Fuji Electric

• Configuration: Single-pack

• Vce (Max): 1200 V

• Ic (Rated): 400 A

• Vce(sat): ~2.1 V typical

• Mounting Type: Chassis mount

• Package: Insulated base module

• Operating Temperature: –40 °C to +150 °C (Tj)

• Isolation Voltage: ≥2500 V

• Estimated Power Dissipation: ~1000–1200 W

Applications

• High-voltage motor drives

• Industrial power inverters

• Energy storage and UPS systems

• Renewable energy conversion

• Automation and heavy machinery

Why Choose the 1MBI400V-120-50

• High-voltage, high-current performance

• Compact design for space-saving installations

• Fuji’s reliable and durable IGBT technology

• Optimized for efficiency and heat dissipation

• Ideal for high-demand industrial applications

Order Now

The Fuji 1MBI400V-120-50 IGBT module is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
