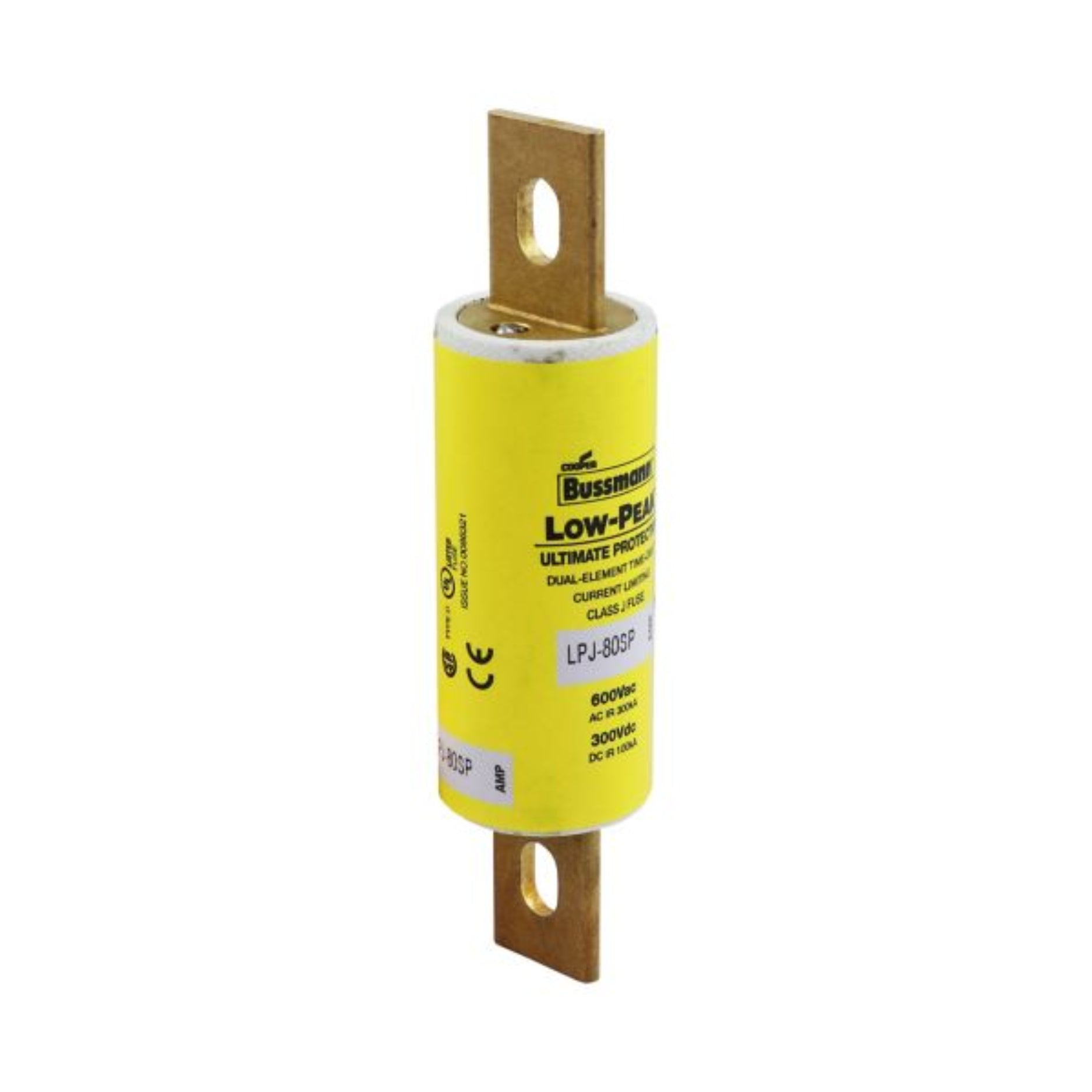

Bussmann LPJ-80SP

Bussmann LPJ-80SP

Overview

The Bussmann LPJ-80SP is a Class J dual-element time-delay fuse built for superior circuit protection in industrial and commercial power systems. Rated at 80 A with a 600 V voltage capacity, this fuse provides both overload and short-circuit protection with a 300 kAIC interrupt rating, ensuring maximum safety in high fault current environments.

Its dual-element design allows for motor and transformer inrush currents without nuisance tripping, while the blade end x blade end connection provides a secure installation. As a non-indicating fuse, it delivers straightforward application in electrical panels and power distribution systems.

Key Features

• Class J dual-element time-delay fuse

• Rated current: 80 A

• Voltage rating: 600 V

• Interrupt rating: 300 kAIC

• Time-delay construction prevents nuisance trips during inrush currents

• Connection: Blade end x blade end

• Fuse indicator: Non-indicating

• Dimensions: 4.63 in length × 1.13 in width × 1.13 in height

• Weight: 0.35 lb

• Certifications: UL Listed, CSA Certified

• Compliance: RoHS Compliant

• Quantity: Sold individually (1 piece)

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: LPJ-80SP

• Product Type: Time-delay current-limiting fuse

• Fuse Class: J

• Amperage Rating: 80 A

• Voltage Rating: 600 V

• Interrupt Rating: 300 kAIC

• Number of Elements: Dual

• Fuse Indicator: Non-indicating

• Connection Type: Blade end x blade end

• Dimensions: 4.63 in (L) × 1.13 in (W) × 1.13 in (H)

• Weight: 0.35 lb

• Certifications: UL Listed, CSA Certified

• Compliance: RoHS Compliant

• Quantity: 1

Applications

• Motor protection with high inrush currents

• Transformer protection

• Industrial machinery circuits

• Power distribution systems

• Commercial electrical panels

Why Choose the LPJ-80SP

• High 300 kAIC interrupt rating ensures safe fault protection

• Dual-element time-delay design prevents nuisance tripping

• Compact Class J design with blade connection

• UL Listed, CSA Certified, and RoHS compliant

• Reliable Bussmann quality for industrial-grade use

Order Now

The Bussmann LPJ-80SP Class J Fuse is available and ships worldwide.
