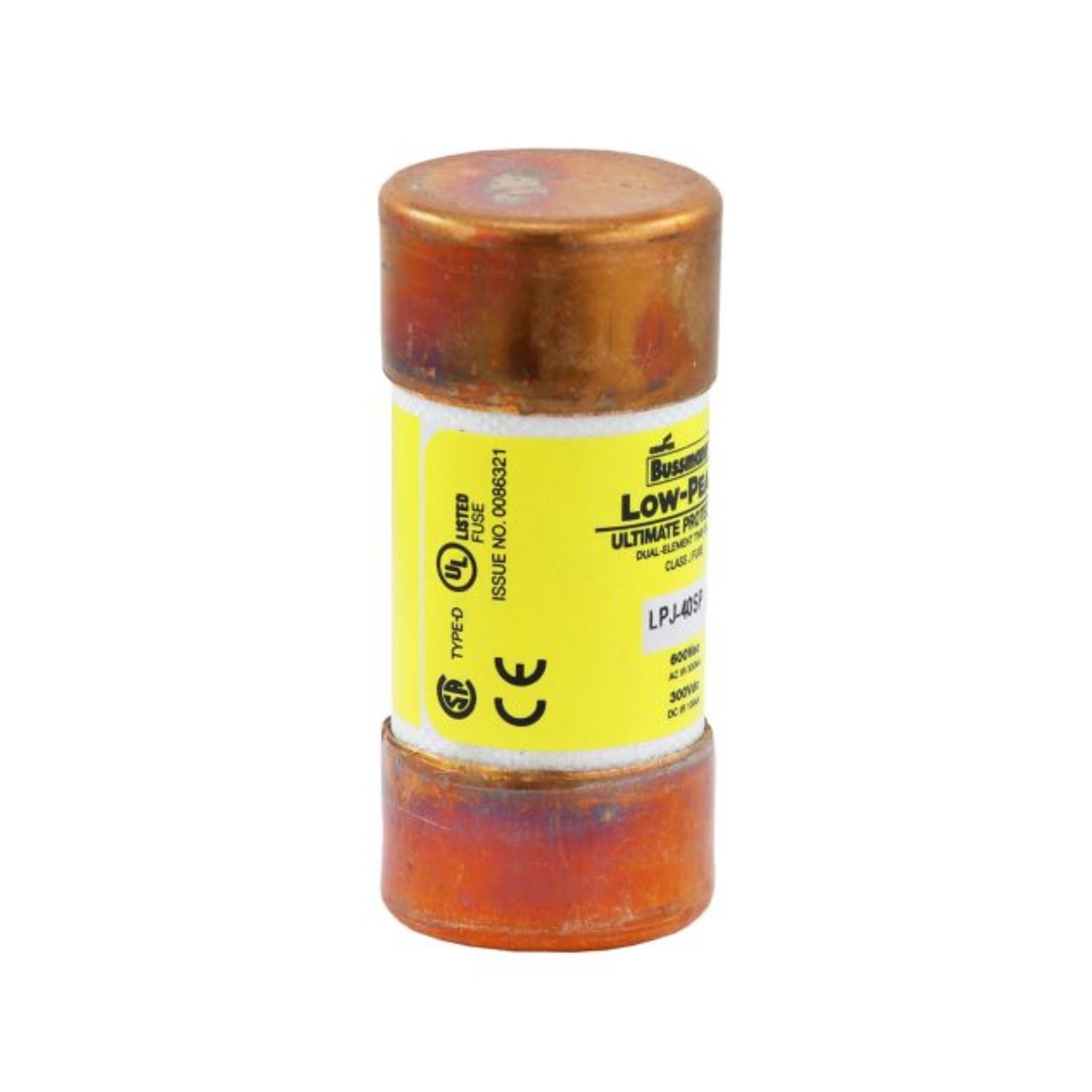

Bussmann LPJ-40SP

Bussmann LPJ-40SP

Overview

The Bussmann LPJ-40SP is a Class J dual-element time-delay fuse designed for industrial and commercial power distribution protection. With a 40 A rating and 600 V capacity, it provides reliable overload and short-circuit protection while accommodating high inrush currents in motor and transformer circuits.

Built with a ferrule end x ferrule end connection, this compact fuse ensures secure installation. Its time-delay dual-element design prevents nuisance tripping and supports safe, efficient operation. With a 300 kAIC interrupt rating, the LPJ-40SP guarantees dependable fault clearing in high-energy environments.

Key Features

• Class J dual-element time-delay fuse

• Rated current: 40 A

• Voltage rating: 600 V

• Interrupt rating: 300 kAIC

• Current-limiting design for superior fault protection

• Connection: Ferrule end x ferrule end

• Fuse indicator: Non-indicating

• Dimensions: 2.38 in length × 1.06 in width × 1.06 in height

• Weight: 0.18 lb

• Certifications: UL Listed, CSA Certified

• Compliance: RoHS Compliant

• Quantity: Sold individually (1 piece)

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: LPJ-40SP

• Product Type: Current-limiting time-delay fuse

• Fuse Class: J

• Amperage Rating: 40 A

• Voltage Rating: 600 V

• Interrupt Rating: 300 kAIC

• Number of Elements: Dual

• Connection Type: Ferrule end x ferrule end

• Fuse Indicator: Non-indicating

• Dimensions: 2.38 in (L) × 1.06 in (W) × 1.06 in (H)

• Weight: 0.18 lb

• Certifications: UL Listed, CSA Certified

• Compliance: RoHS Compliant

• Packaging Type: Standard

• Quantity: 1

Applications

• Motor protection with high inrush currents

• Transformer protection

• Power distribution systems

• Industrial machinery

• Commercial electrical panels

Why Choose the LPJ-40SP

• Dual-element design for reliable time-delay protection

• High 300 kAIC interrupt rating ensures maximum safety

• Compact Class J fuse for secure installations

• UL Listed, CSA Certified, and RoHS compliant

• Trusted Bussmann reliability for industrial-grade performance

Order Now

The Bussmann LPJ-40SP Class J Fuse is available and ships worldwide.

Return to the Bussmann Fuses collection.

Browse the Industrial Fuses main category explore our full range.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
