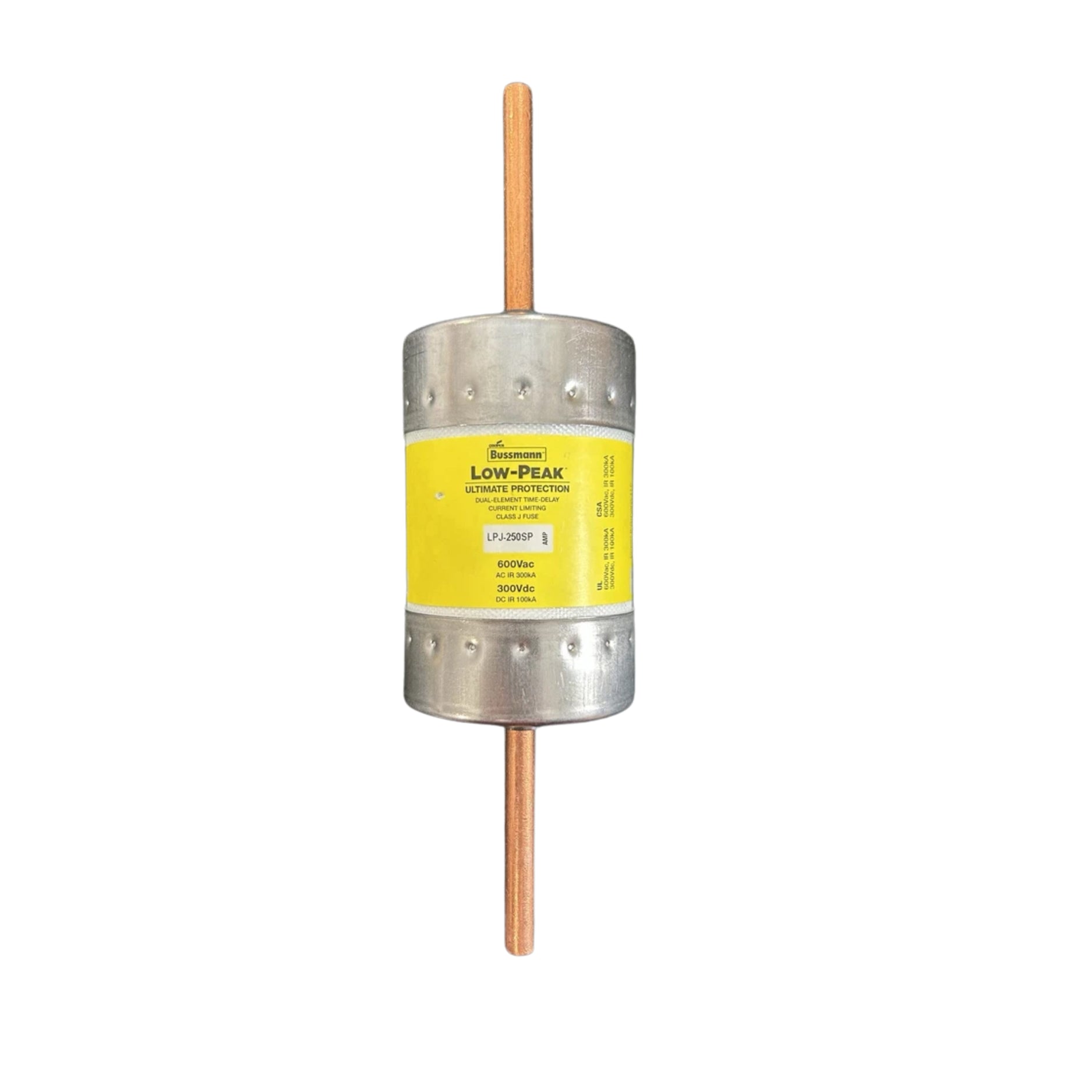

Bussmann LPJ-250SP

Bussmann LPJ-250SP

Overview

The Bussmann LPJ-250SP is a Class J dual-element time-delay fuse engineered for high-power industrial and commercial applications. With a 250 A current rating and a 600 V voltage rating, this fuse ensures reliable protection against both overloads and short-circuits. Its time-delay characteristics allow it to handle high inrush currents from motors and transformers without nuisance tripping.

Designed with a blade end x blade end connection, the LPJ-250SP provides secure mounting and ease of installation. Its current-limiting design and 300 kAIC interrupt rating deliver superior fault protection, reducing let-through energy to safeguard equipment. Built to last, it is UL Listed, CSA Certified, and RoHS compliant for global acceptance.

Key Features

• Class J dual-element time-delay fuse

• Rated current: 250 A

• Voltage rating: 600 V

• Interrupt rating: 300 kAIC

• Time-delay performance supports motor and transformer inrush currents

• Connection: Blade end x blade end

• Fuse indicator: Non-indicating

• Dimensions: 7.12 in height × 2.11 in width × 2.11 in depth

• Weight: 0.18 lb

• Certifications: UL Listed, CSA Certified

• Compliance: RoHS Compliant

• Quantity: Sold individually (1 piece)

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: LPJ-250SP

• Product Type: Current-limiting time-delay fuse

• Fuse Class: J

• Amperage Rating: 250 A

• Voltage Rating: 600 V

• Interrupt Rating: 300 kAIC

• Number of Elements: Dual

• Connection Type: Blade end x blade end

• Fuse Indicator: Non-indicating

• Dimensions: 7.12 in (H) × 2.11 in (W) × 2.11 in (D)

• Weight: 0.18 lb

• Certifications: UL Listed, CSA Certified

• Compliance: RoHS Compliant

• Packaging Type: Standard

• Quantity: 1

Applications

• Motor protection with high inrush currents

• Transformer protection

• Industrial power distribution systems

• Commercial electrical installations

• Machinery circuits requiring high fault current protection

Why Choose the LPJ-250SP

• High 300 kAIC interrupt rating ensures safe and dependable fault protection

• Dual-element time-delay design prevents nuisance tripping

• Blade connection offers secure and stable installation

• UL Listed, CSA Certified, and RoHS compliant for global standards

• Trusted Bussmann reliability for industrial-grade performance

Order Now

The Bussmann LPJ-250SP Class J Fuse is available and ships worldwide.
