Bussmann LPJ-150SP

Bussmann LPJ-150SP

Overview

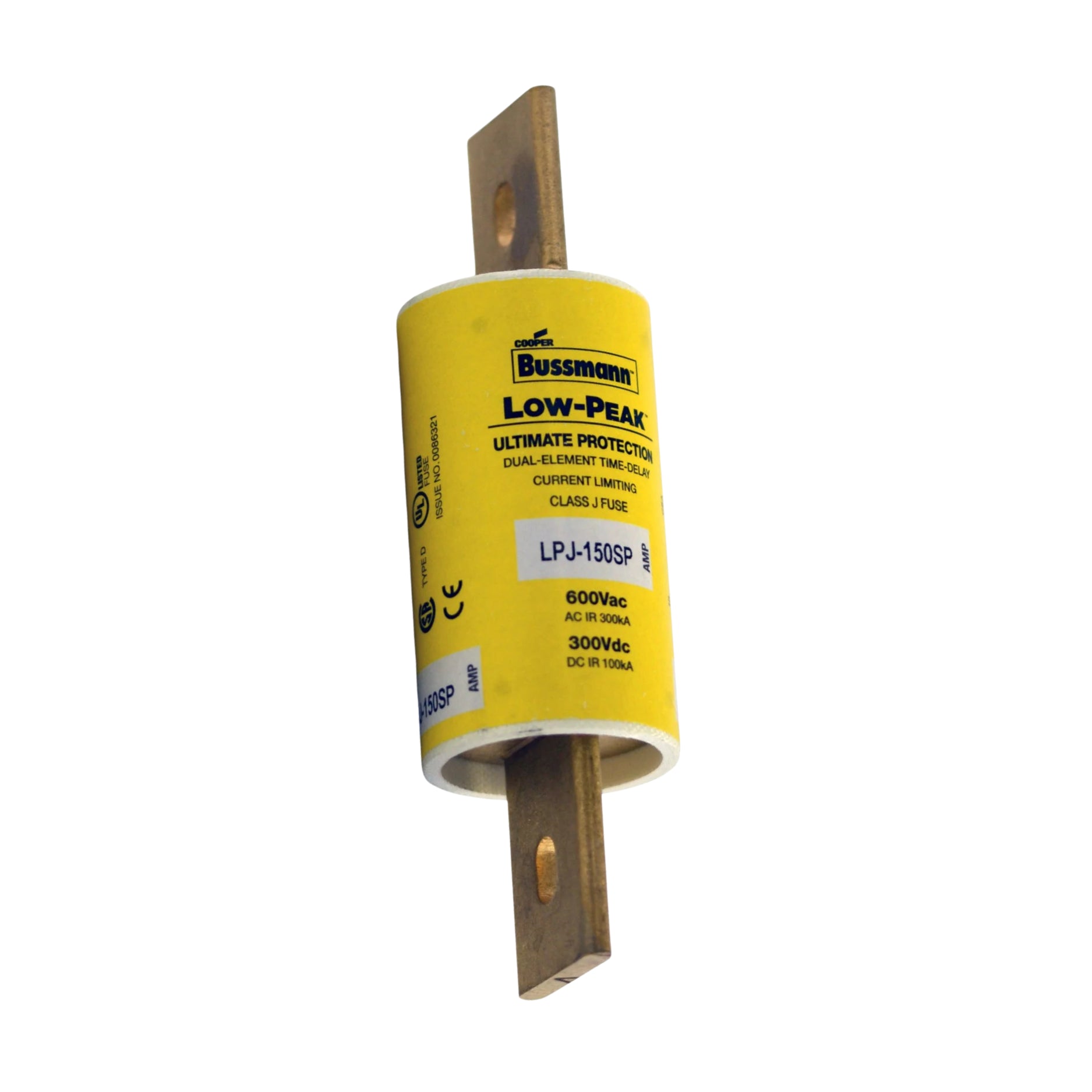

The Bussmann LPJ-150SP is a Class J time-delay fuse designed for superior protection in industrial and commercial applications. With a current rating of 150 A and voltage ratings of 600 V AC and 300 V DC, it ensures reliable short-circuit and overload protection.

Engineered with a dual-element design, the LPJ-150SP accommodates high inrush currents typical of motors and transformers while preventing nuisance tripping. Its blade connection type provides a secure and stable installation, while the current-limiting design reduces fault energy for enhanced system safety. With a 300 kAIC interrupt rating, it delivers maximum protection in high fault current environments.

Key Features

• Class J dual-element time-delay fuse

• Rated current: 150 A

• Voltage rating: 600 V AC / 300 V DC

• Interrupting rating: 300 kAIC

• Dual-element design handles motor and transformer inrush currents

• Connection type: Blade

• Current-limiting design for reduced fault energy

• Provides overload and short-circuit protection

• Built for industrial and commercial power distribution systems

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: LPJ-150SP

• Product Type: Time-delay, current-limiting fuse

• Fuse Class: J

• Amperage Rating: 150 A

• Voltage Rating: 600 V AC, 300 V DC

• Interrupt Rating: 300 kAIC

• Connection: Blade type

• Design: Dual-element, time-delay

• Application: Motor circuits, transformers, industrial distribution

Applications

• Motor protection against high inrush currents

• Transformer protection

• Power distribution panels

• Industrial machinery circuits

• Commercial electrical systems

Why Choose the LPJ-150SP

• High 300 kAIC interrupt rating for maximum safety

• Dual-element time-delay design prevents nuisance tripping

• Blade connection ensures secure installation

• Handles both overload and short-circuit conditions effectively

• Trusted Bussmann quality for industrial-grade reliability

Order Now

The Bussmann LPJ-150SP Class J Fuse is available and ships worldwide.

Return to the Bussmann Fuses collection.

Browse the Industrial Fuses main category explore our full range.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
