Bussmann LP-CC-5

Bussmann LP-CC-5

Overview

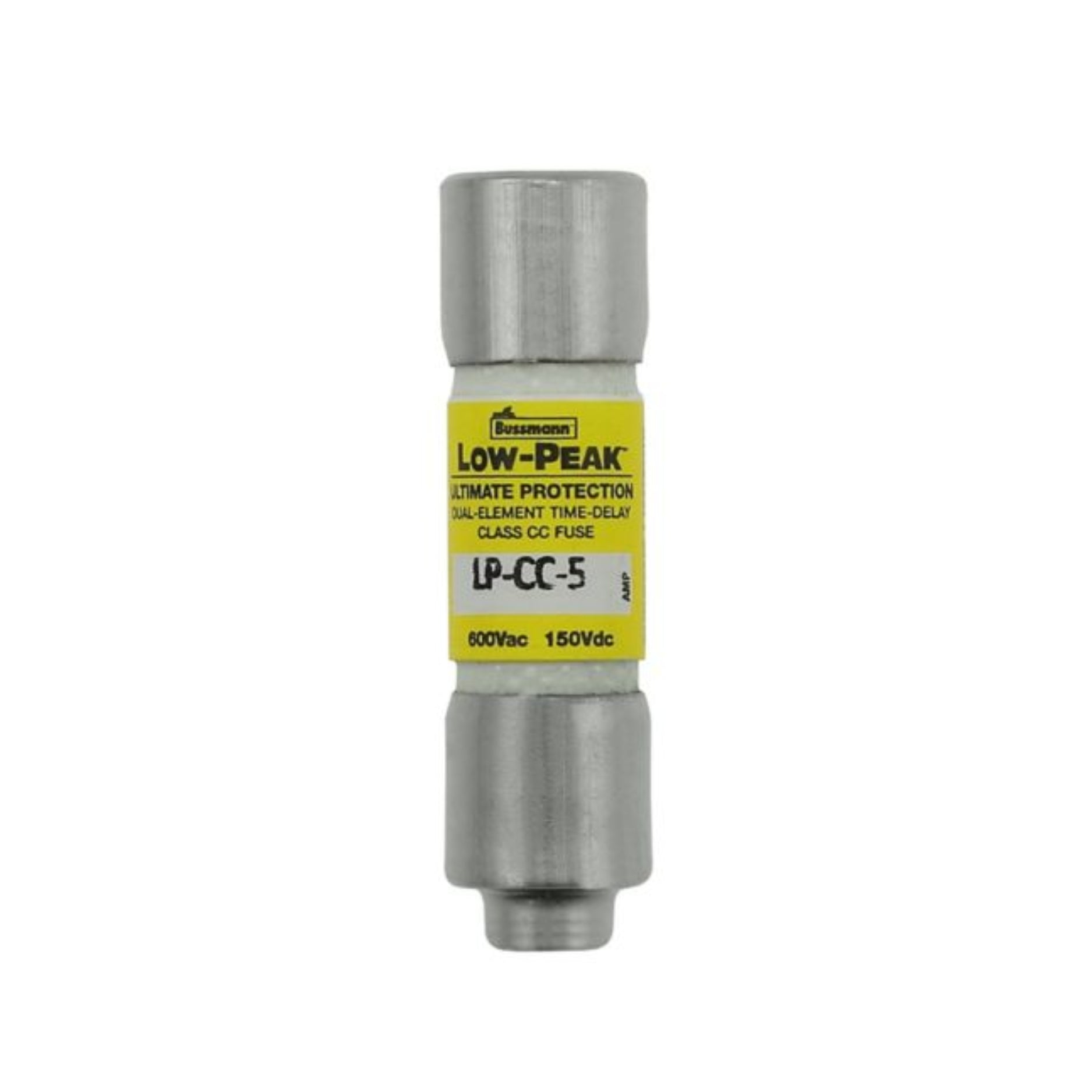

The Bussmann LP-CC-5 is a Class CC dual-element time-delay fuse designed for specialized circuits and industrial control applications. With a 5 A current rating and voltage capacity of 600 V AC and 150 V DC, it delivers superior overload and short-circuit protection. Its 200 kAIC interrupt rating at 600 V AC ensures dependable safety in high fault current environments.

Built with a rejection-style safety feature, the LP-CC-5 prevents misapplication in fuse holders. Its time-delay performance of 12 seconds at 200% overload accommodates inrush currents from motors, solenoids, and transformers without nuisance tripping. The fuse features a ferrule end x ferrule end connection and a durable melamine tube body, providing reliability in demanding electrical systems.

Key Features

• Class CC current-limiting fuse

• Rated current: 5 A

• Voltage rating: 600 V AC / 150 V DC

• Interrupt rating: 200 kAIC at 600 V AC / 20 kAIC at 150 V DC

• Time-delay response: 12 seconds at 200% overload

• Dual-element design for overload and short-circuit protection

• Connection: Ferrule end x ferrule end

• Body material: Melamine tube

• Fuse indicator: Non-indicating

• Special feature: Rejection style for added safety

• Dimensions: 1.5 in height × 0.41 in width × 0.41 in depth

• Weight: 0.15 lb

• Certifications: UL Listed, CSA Certified

• Compliance: CE Marked, RoHS Compliant

• Quantity: Sold individually (1 piece)

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: LP-CC-5

• Product Type: Current-limiting time-delay fuse

• Fuse Class: CC

• Amperage Rating: 5 A

• Voltage Rating: 600 V AC, 150 V DC

• Interrupt Rating: 200 kAIC (600 V AC), 20 kAIC (150 V DC)

• Response Time: 12 seconds at 200% overload

• Number of Elements: Dual

• Body Material: Melamine tube

• Fuse Indicator: Non-indicating

• Connection Type: Ferrule end x ferrule end

• Dimensions: 1.5 in (H) × 0.41 in (W) × 0.41 in (D)

• Weight: 0.15 lb

• Certifications: UL Listed, CSA Certified

• Compliance: CE Marked, RoHS Compliant

• Quantity: 1

Applications

• Specialized circuits

• Industrial control systems

• Motor and solenoid protection

• Control transformers

• Branch circuit protection

Why Choose the LP-CC-5

• Time-delay dual-element design prevents nuisance tripping

• High 200 kAIC interrupt rating ensures reliable protection

• Compact Class CC format with rejection-style safety

• UL, CSA, CE, and RoHS compliant

• Trusted Bussmann quality for industrial applications

Order Now

The Bussmann LP-CC-5 Class CC Fuse is available and ships worldwide.
