Bussmann LP-CC-20

Bussmann LP-CC-20

Overview

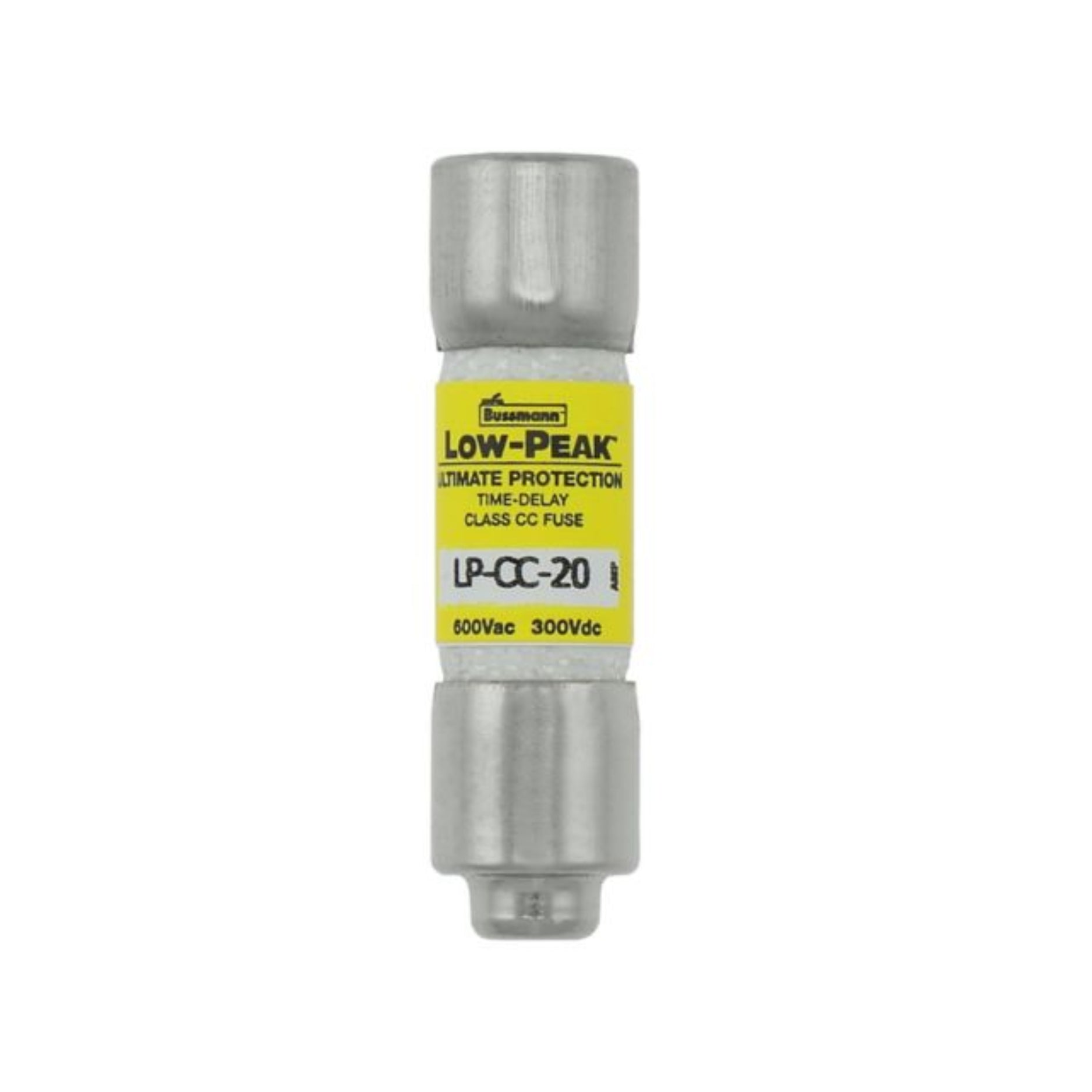

The Bussmann LP-CC-20 is a Class CC dual-element time-delay fuse designed for specialized circuits and industrial control protection. Rated at 20 A with a 600 V AC and 300 V DC rating, it provides reliable overload and short-circuit protection. With a 200 kAIC interrupt rating at 600 V AC, this fuse is engineered for safe performance in demanding applications.

Built with a rejection-style design for enhanced safety, the LP-CC-20 features a ferrule end x ferrule end connection and a durable melamine tube body. Its time-delay response (12 seconds at 200% overload) makes it suitable for motors, solenoids, and control transformers that require protection against nuisance tripping during inrush currents.

Key Features

• Class CC current-limiting fuse

• Rated current: 20 A

• Voltage rating: 600 V AC / 300 V DC

• Interrupt rating: 200 kAIC at 600 V AC / 20 kAIC at 300 V DC

• Dual-element time-delay design

• Response time: 12 seconds at 200% overload

• Connection: Ferrule end x ferrule end

• Body material: Melamine tube

• Fuse indicator: Non-indicating

• Special feature: Rejection style for safety

• Dimensions: 1.5 in height × 0.41 in width × 0.41 in depth

• Weight: 0.15 lb

• CE marked, RoHS compliant, UL Listed, CSA certified

• Quantity: Sold individually (1 piece)

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: LP-CC-20

• Product Type: Current-limiting time-delay fuse

• Fuse Class: CC

• Amperage Rating: 20 A

• Voltage Rating: 600 V AC, 300 V DC

• Interrupt Rating: 200 kAIC (600 V AC), 20 kAIC (300 V DC)

• Response Time: 12 seconds at 200% overload

• Number of Elements: Dual

• Connection Type: Ferrule end x ferrule end

• Tube Material: Melamine

• Fuse Indicator: Non-indicating

• Special Feature: Rejection style

• Dimensions: 1.5 in (H) × 0.41 in (W) × 0.41 in (D)

• Weight: 0.15 lb

• Certifications: UL Listed, CSA Certified

• Compliance: CE Marked, RoHS Compliant

• Packaging Type: Standard

• Quantity: 1

Applications

• Specialized circuits

• Industrial control panels

• Motor and solenoid protection

• Control transformer circuits

• Automation systems

Why Choose the LP-CC-20

• Time-delay design prevents nuisance tripping from inrush currents

• High interrupt rating for reliable short-circuit protection

• Compact Class CC format with rejection-style safety

• UL Listed, CSA Certified, CE and RoHS compliant

• Trusted Bussmann quality for industrial reliability
