Bussmann KTK-R-30

Bussmann KTK-R-30

Overview

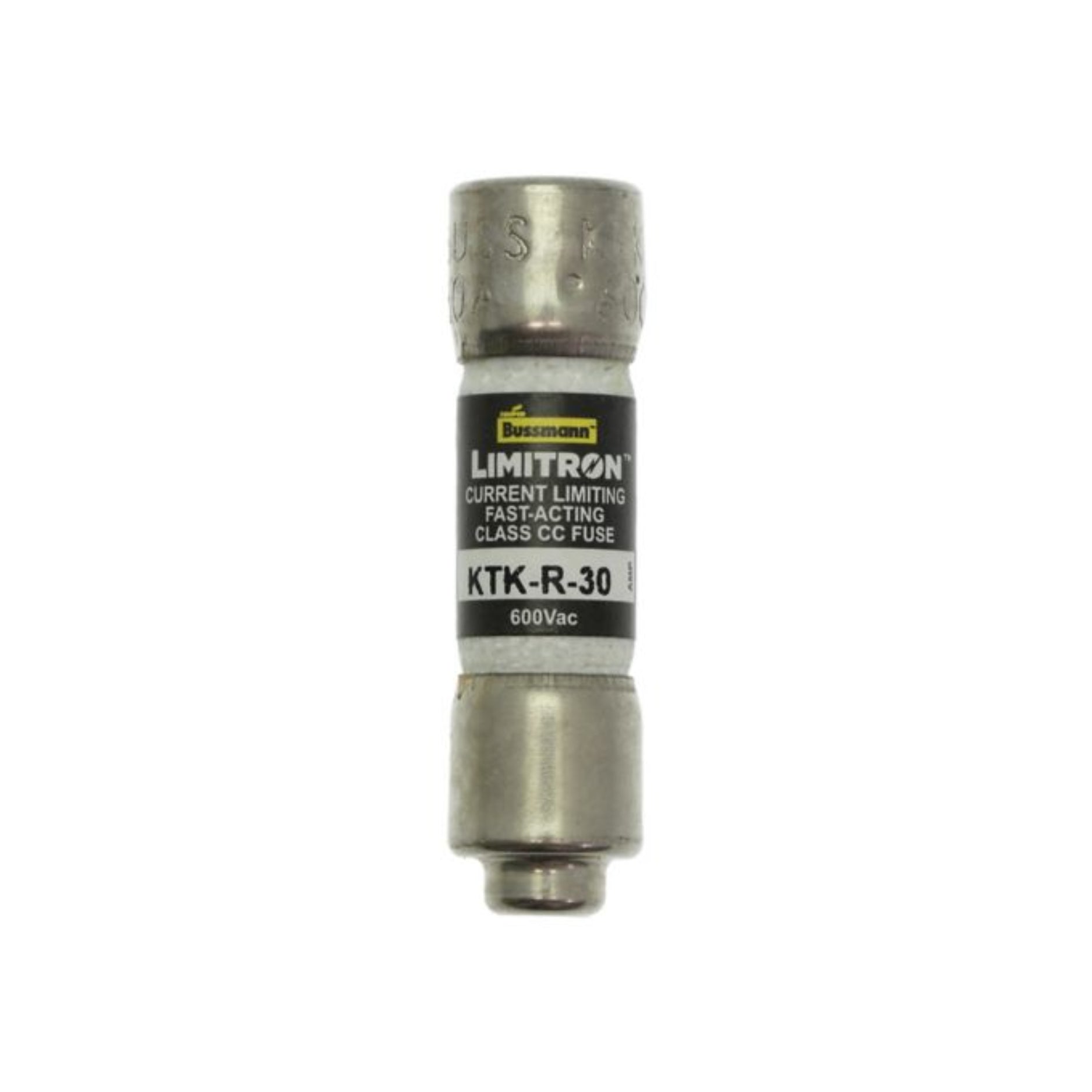

The Bussmann KTK-R-30 is a Class CC fast-acting, current-limiting fuse designed to provide superior short-circuit protection for industrial and commercial electrical systems. With a 30 A current rating and 600 V voltage capacity, it responds quickly to faults, protecting control panels, lighting circuits, machinery, and distribution systems. Its 200 kAIC interrupt rating ensures maximum safety even in high fault current environments.

This fuse features a fast-acting response (see time-current curve), making it ideal for non-inductive loads and applications requiring precise protection. The rejection-style design prevents misapplication, while the ferrule end x ferrule end connection supports secure and easy installation. Its melamine tube construction provides durability and resistance to heat and electrical stress.

Key Features

• Class CC current-limiting fast-acting fuse

• Rated current: 30 A

• Voltage rating: 600 V

• Interrupt rating: 200 kAIC

• Fast-acting protection (see time-current curve)

• Dual-element design for reliability

• Connection: Ferrule end x ferrule end

• Fuse indicator: Non-indicating

• Tube material: Melamine

• Special feature: Rejection style to prevent misapplication

• Dimensions: 1.5 in length × 0.41 in width × 0.41 in height

• Weight: 0.18 lb

• Certifications: UL Listed, CSA Certified

• Compliance: CE Marked, RoHS Compliant

• Quantity: Sold individually (1 piece)

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: KTK-R-30

• Product Type: Current-limiting fast-acting fuse

• Fuse Class: CC

• Amperage Rating: 30 A

• Voltage Rating: 600 V

• Interrupt Rating: 200 kAIC

• Response Time: Fast-acting (refer to time-current curve)

• Number of Elements: Dual

• Connection Type: Ferrule end x ferrule end

• Fuse Indicator: Non-indicating

• Tube Material: Melamine

• Special Feature: Rejection style

• Dimensions: 1.5 in (L) × 0.41 in (W) × 0.41 in (H)

• Weight: 0.18 lb

• Certifications: UL Listed, CSA Certified

• Compliance: CE Marked, RoHS Compliant

• Packaging Type: Standard

• Quantity: 1

Applications

• Industrial control panels

• Machinery circuits

• Street lighting systems

• General lighting circuits

• Capacitor banks

• Power distribution systems

Why Choose the KTK-R-30

• Fast-acting response protects sensitive equipment from faults

• High 200 kAIC interrupt rating for superior circuit safety

• Rejection-style design ensures correct fuse usage

• Compact Class CC format saves valuable panel space

• Backed by Bussmann reliability with UL, CSA, CE, and RoHS compliance

Order Now

The Bussmann KTK-R-30 Class CC Fuse is available and ships worldwide.
