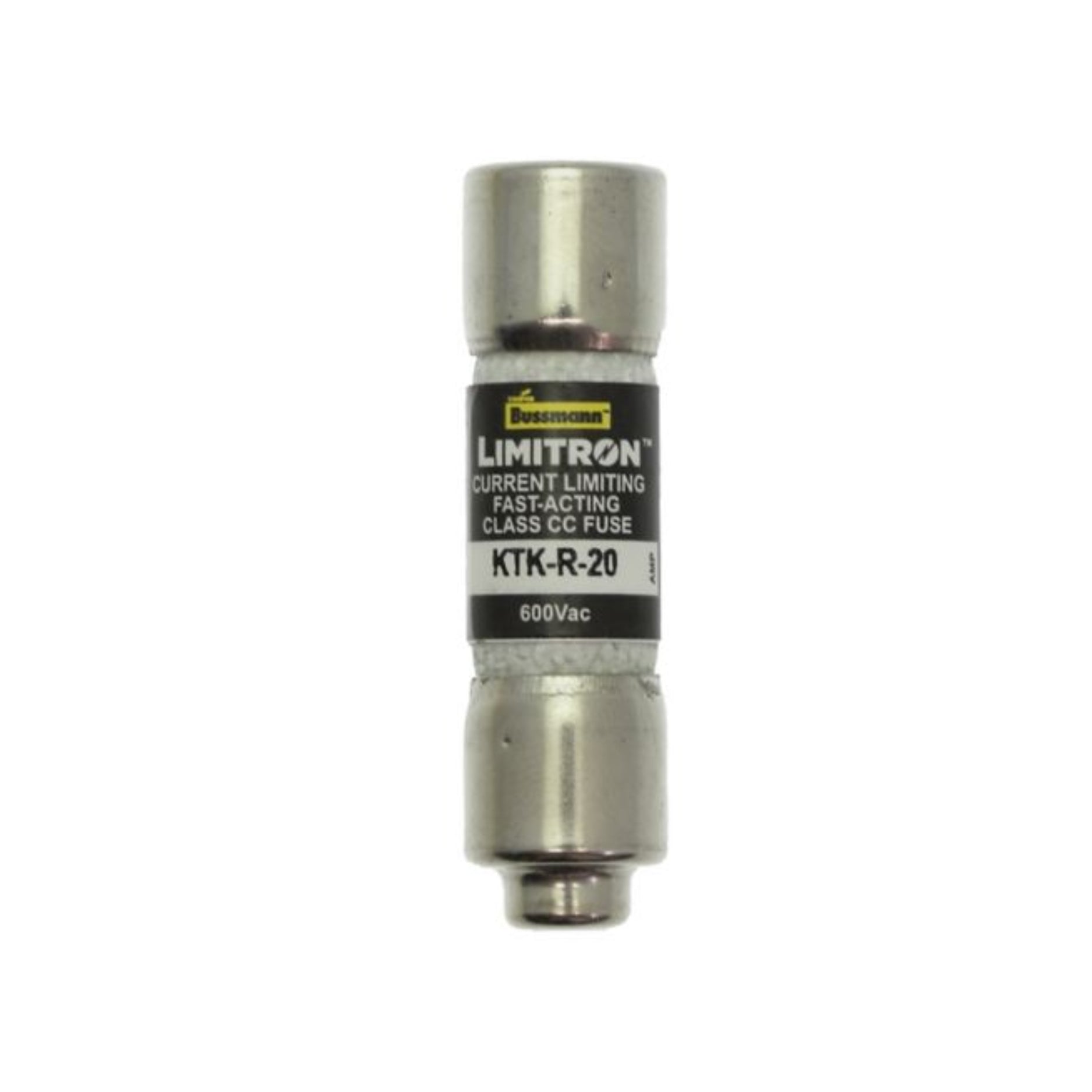

Bussmann KTK-R-20

Bussmann KTK-R-20

Overview

The Bussmann KTK-R-20 is a Class CC current-limiting fast-acting fuse designed for reliable protection of industrial and commercial circuits. With a 20 A current rating and 600 V voltage rating, it provides dependable short-circuit protection for sensitive equipment and branch circuits. Its 200 kAIC interrupt rating ensures robust fault current protection in high-energy environments.

Engineered with a fast-acting response, the KTK-R-20 is ideal for protecting control panels, general lighting, and distribution circuits where precise fault interruption is critical. Its rejection-style design prevents misapplication, while the ferrule end x ferrule end connection ensures secure installation. Built with a durable melamine tube body, this fuse offers long-lasting reliability.

Key Features

• Class CC current-limiting fast-acting fuse

• Rated current: 20 A

• Voltage rating: 600 V

• Interrupt rating: 200 kAIC

• Fast-acting response (see time-current curve)

• Dual-element design for reliable protection

• Connection: Ferrule end x ferrule end

• Fuse indicator: Non-indicating

• Tube body: Melamine

• Special feature: Rejection style prevents misapplication

• Dimensions: 1.5 in height × 0.41 in width × 0.41 in depth

• Weight: 0.18 lb

• Certifications: UL Listed, CSA Certified

• Compliance: CE Marked, RoHS Compliant

• Quantity: Sold individually (1 piece)

Technical Specifications

• Manufacturer: Bussmann Series

• Catalog Number: KTK-R-20

• Product Type: Current-limiting fast-acting fuse

• Fuse Class: CC

• Amperage Rating: 20 A

• Voltage Rating: 600 V

• Interrupt Rating: 200 kAIC

• Response Time: Fast-acting (refer to time-current curve)

• Number of Elements: Dual

• Connection Type: Ferrule end x ferrule end

• Fuse Indicator: Non-indicating

• Tube Material: Melamine

• Special Feature: Rejection style

• Dimensions: 1.5 in (H) × 0.41 in (W) × 0.41 in (D)

• Weight: 0.18 lb

• Certifications: UL Listed, CSA Certified

• Compliance: CE Marked, RoHS Compliant

• Packaging Type: Standard

• Quantity: 1

Applications

• Industrial control panels

• Machinery circuits

• Street lighting

• General lighting

• Capacitor banks

• Power distribution systems

Why Choose the KTK-R-20

• Fast-acting design ensures precise short-circuit protection

• High 200 kAIC interrupt rating for maximum circuit safety

• Rejection-style feature prevents incorrect fuse replacement

• Compact Class CC design saves panel space

• Bussmann reliability with UL, CSA, CE, and RoHS compliance

Order Now

The Bussmann KTK-R-20 Class CC Fuse is available and ships worldwide.
