Omron SRT2-ID16-1

Omron SRT2-ID16-1 | High-Density Digital Input Module for Efficient I/O Integration

Overview

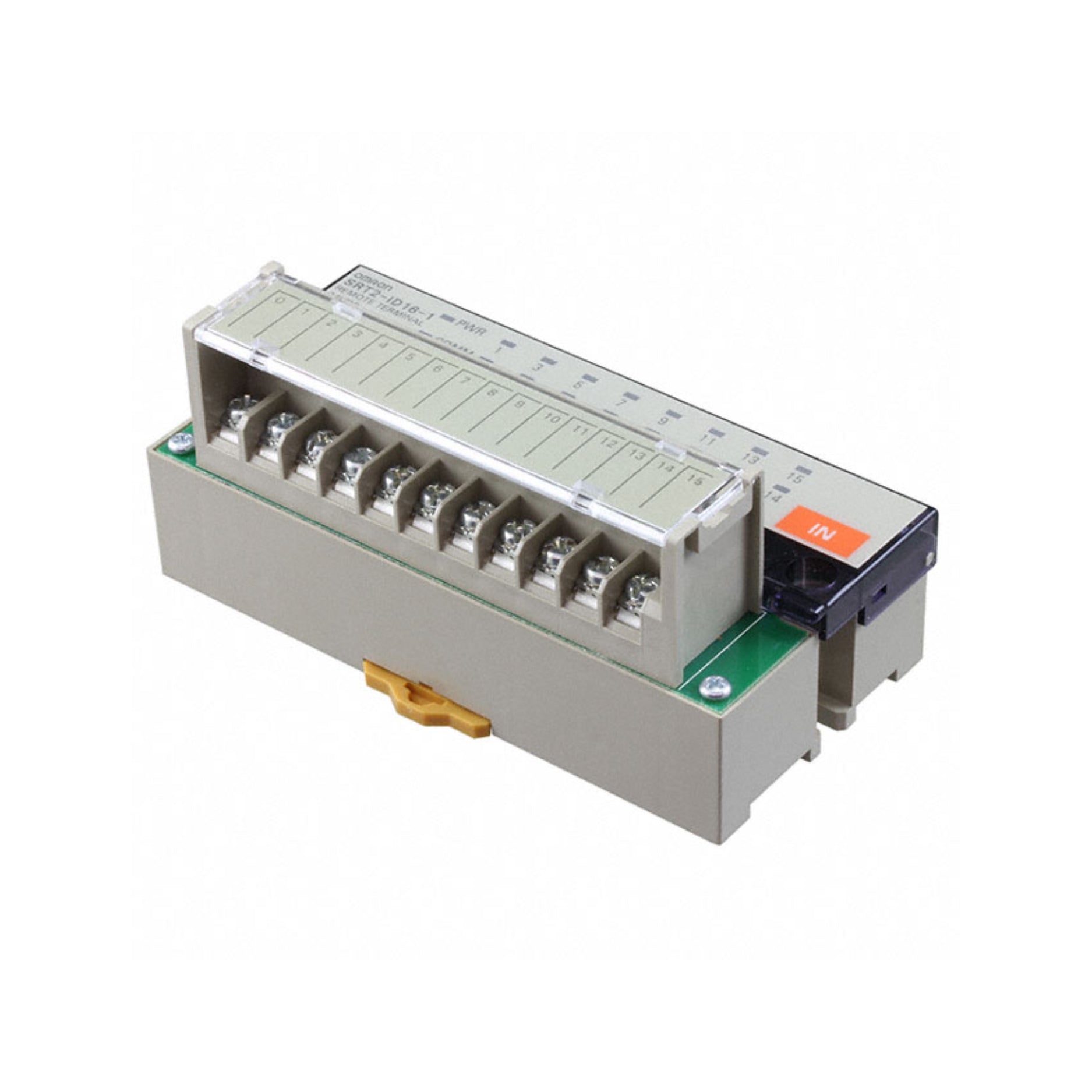

The Omron SRT2-ID16-1 is a 16-channel digital input module designed for seamless integration into CompoBus/S networks. Operating at 24 VDC, this module utilizes PNP (sourcing) inputs and offers a compact, DIN rail-mountable design. Its fast cycle times and straightforward setup make it ideal for efficient industrial automation applications.

Key Features

• 16 Digital Input Channels: Accommodates multiple input signals within a single module.

• PNP (Sourcing) Inputs: Compatible with sourcing output devices, providing design flexibility.

• 24 VDC Operation: Standard voltage level for industrial automation systems.

• CompoBus/S Network Compatibility: Ensures seamless integration into existing networks.

• Compact Design: Measures 105 mm (L) × 48 mm (W) × 50 mm (H), conserving control panel space.

• Fast Cycle Time: Less than 1 ms per 256 I/O points, enhancing system responsiveness.

• Easy Setup: No software required, simplifying installation and configuration.

• DIN Rail Mountable: Facilitates straightforward and secure installation.

Technical Specifications

• Model Number: SRT2-ID16-1

• Input Type: Digital, PNP (sourcing)

• Number of Inputs: 16

• Input Voltage: 24 VDC

• Input Current: 6 mA max. per point

• ON Voltage Level: 15 VDC min.

• OFF Voltage Level: 5 VDC max.

• ON Response Time: 1.5 ms max.

• OFF Response Time: 1.5 ms max.

• Mounting Type: DIN rail

• Termination Style: Screw terminals

• Operating Temperature Range: 0°C to 55°C

• Dimensions: 105 mm (L) × 48 mm (W) × 50 mm (H)

• Weight: Approximately 110 g

• Certifications: CE, CSA, UL

Applications

• Industrial Automation: Efficiently collects multiple digital input signals from sensors and switches.

• Process Control: Monitors various process parameters through digital inputs.

• Machine Monitoring: Gathers status signals from machinery for centralized control systems.

• Building Automation: Integrates with building management systems to monitor various inputs.

Why Choose Omron SRT2-ID16-1?

• High-Density Input Capability: Consolidates 16 inputs into a single module, reducing space and wiring requirements.

• Fast and Reliable Performance: Quick response times enhance overall system efficiency.

• Seamless Network Integration: Designed specifically for CompoBus/S networks, ensuring compatibility and ease of integration.

• User-Friendly Installation: Screw terminal connections and DIN rail mounting simplify the setup process.

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron CompoBus/S master units, output modules, and other automation components to complete your system setup.
