Omron NX-OD5121 | 16-Channel Digital Output Module

Omron NX-OD5121 | Compact 16-Channel NPN Output Module for High-Speed Control

Overview

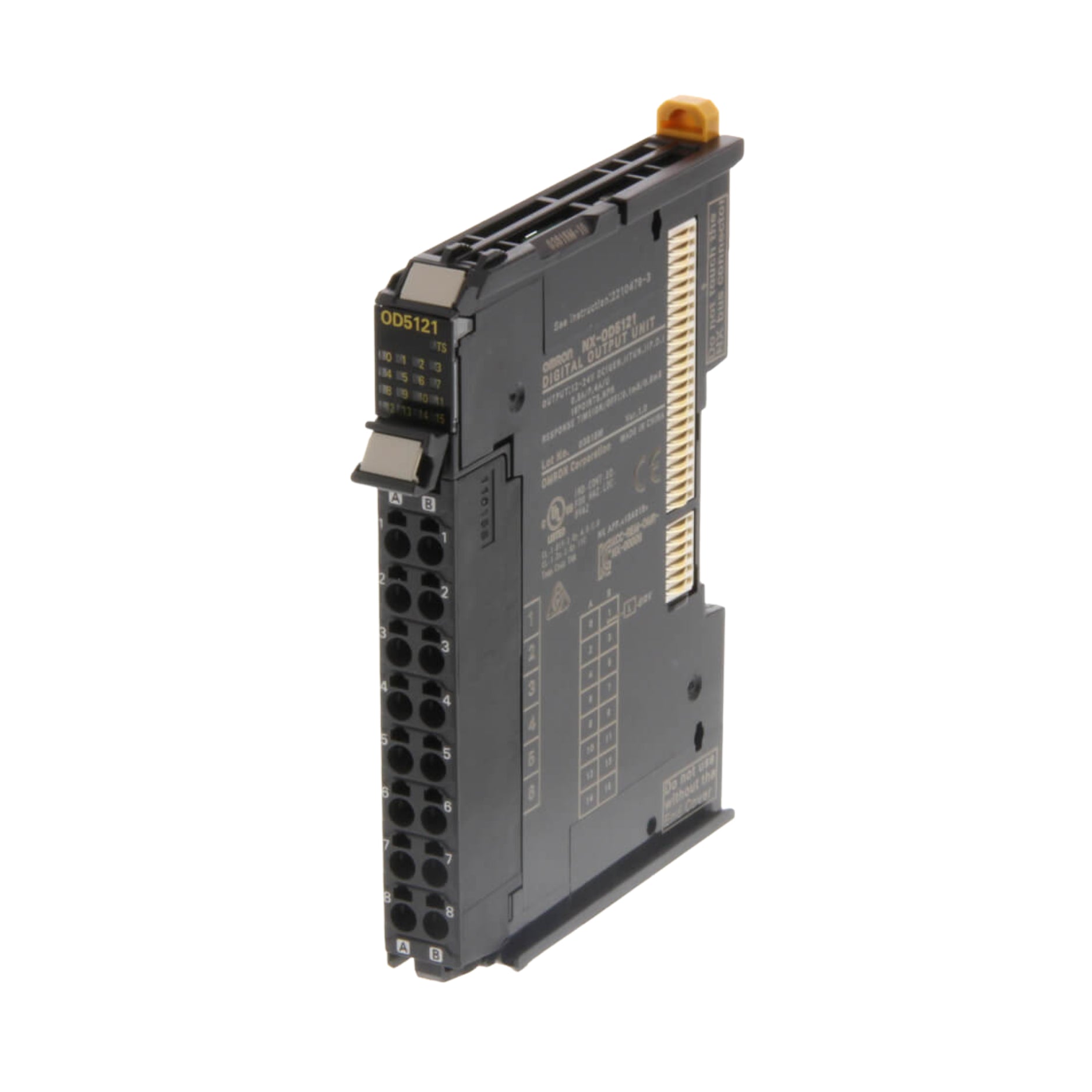

The NX-OD5121 is a 16-channel digital output module from Omron’s NX-Series, designed for NPN transistor-type outputs. With fast response time and high switching capabilities, it is ideal for precise output control in complex automation systems. The module integrates seamlessly with NX and NJ machine automation controllers and supports easy wiring with push-in terminal blocks.

Key Features

• Channels: 16 digital output channels

• Output Type: NPN transistor (sinking)

• Output Voltage: 24 VDC

• Rated Load Current: 0.5 A per point, 2.0 A per common

• Response Time: OFF to ON and ON to OFF ≤ 0.2 ms

• Terminal Type: Push-in connections for secure and tool-free wiring

• Compact Form Factor: 12 mm width saves space in control panels

• Diagnostics: Built-in short-circuit and overcurrent protection

Technical Specifications

• Model Number: NX-OD5121

• Output Type: NPN

• Number of Outputs: 16

• Rated Output Voltage: 24 VDC

• Max Output Current: 0.5 A per point / 2.0 A per common

• ON Voltage Drop: ≤ 0.2 V

• OFF Leakage Current: ≤ 0.1 mA

• Response Time: ≤ 0.2 ms

• Short-Circuit Protection: Yes

• Mounting: DIN rail

• Protection Class: IP20

• Operating Temperature: 0°C to 55°C

• Dimensions: 12 mm (W) × 100 mm (H) × 71 mm (D)

• Certifications: CE, cULus

Applications

• Packaging Machinery

• Material Handling Systems

• Robotic Cells

• Automated Test Equipment

• Factory Automation Panels

Why Choose Omron NX-OD5121?

• High-density output: 16 points in just 12 mm width

• Fast switching: Excellent for time-critical operations

• Integrated protection: Ensures safe and reliable operation

• Easy wiring: Push-in terminals reduce installation time
