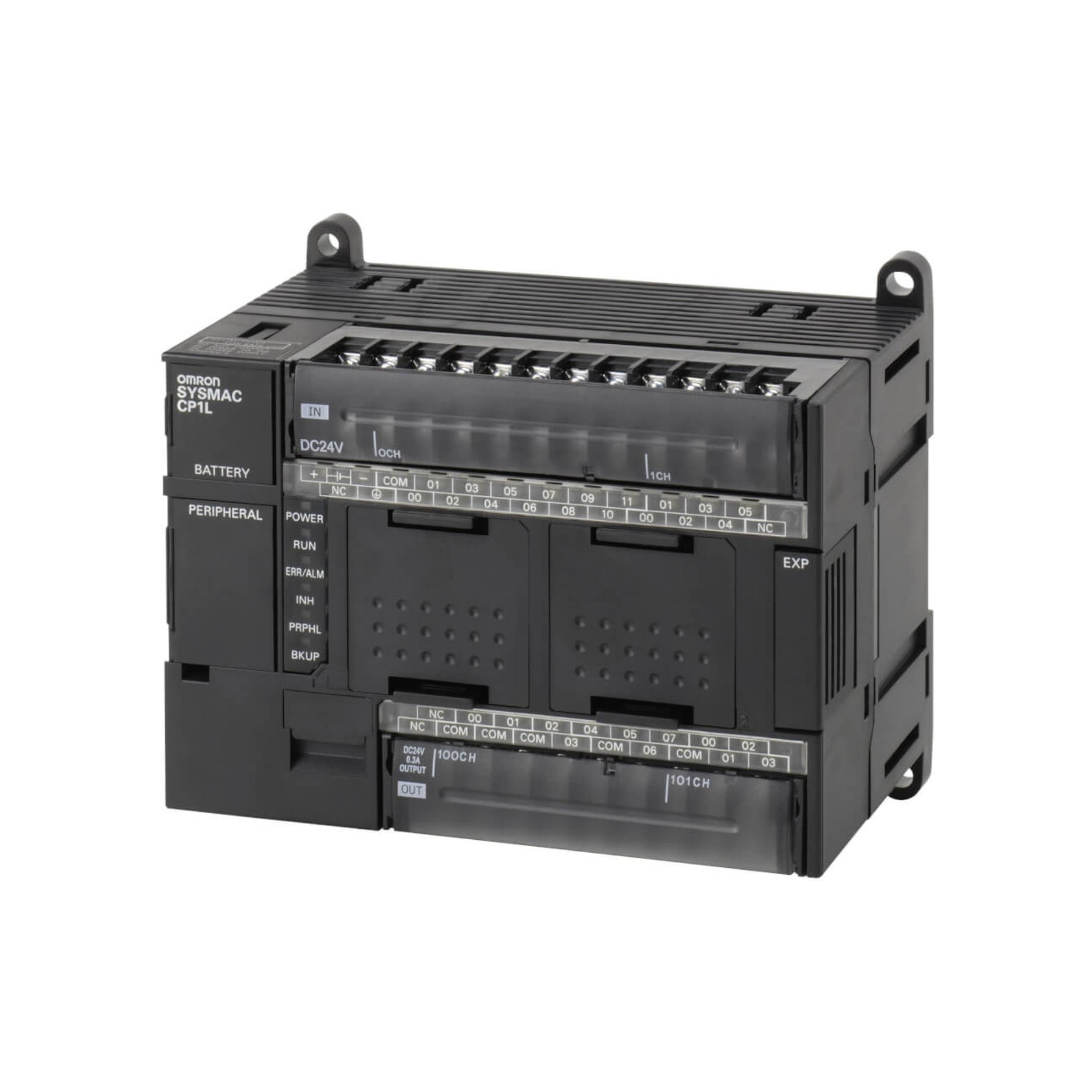

Omron CP1L-M30DR-D

Omron CP1L-M30DR-D | Reliable and Compact PLC for Flexible Industrial Automation

Overview

The CP1L-M30DR-D is a compact and powerful Programmable Logic Controller (PLC) from Omron’s CP1L series. It offers 30 built-in I/O points—18 digital inputs and 12 relay outputs—making it ideal for a wide range of automation tasks. With its 24 VDC power supply, integrated serial communication, and compact design, it's a perfect fit for space-constrained control panels.

Key Features

• Total I/O: 30 built-in points (18 inputs / 12 relay outputs)

• Input Voltage: 24 VDC digital inputs

• Output Type: Relay (dry contact), suitable for various load types

• Program Capacity: 10K steps for complex logic control

• Data Memory: 10K words

• Communication Ports:

  • USB Port: For programming and monitoring

  • RS-232C and RS-485/422 options: Via expansion boards

• High-Speed Counters & Interrupts: Supports fast signal processing for time-critical applications

• Expansion Capability: Supports CP1W and CJ1W expansion units

• DIN Rail Mounting: Easy installation in compact enclosures

Technical Specifications

• Model: CP1L-M30DR-D

• Power Supply: 24 VDC

• Digital Inputs: 18

• Digital Outputs: 12 relay

• Output Current: 2 A per point (max), 8 A per common

• Program Capacity: 10K steps

• Data Memory: 10K words

• High-Speed Counter: Up to 60 kHz

• Pulse Outputs: 2 channels (up to 10 kHz)

• Operating Temperature: 0°C to 55°C

• Certifications: CE, cULus, RoHS

Applications

• Industrial Equipment Control

• Packaging and Labeling Systems

• Material Handling Automation

• Building and Lighting Control Systems

• Process Monitoring and Basic Motion Tasks

Why Choose Omron CP1L-M30DR-D?

• Compact yet powerful for demanding automation requirements

• Flexible communication options and expandability

• Ideal for mixed-load control with reliable relay outputs

• Omron quality and global support ensure long-term dependability

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
