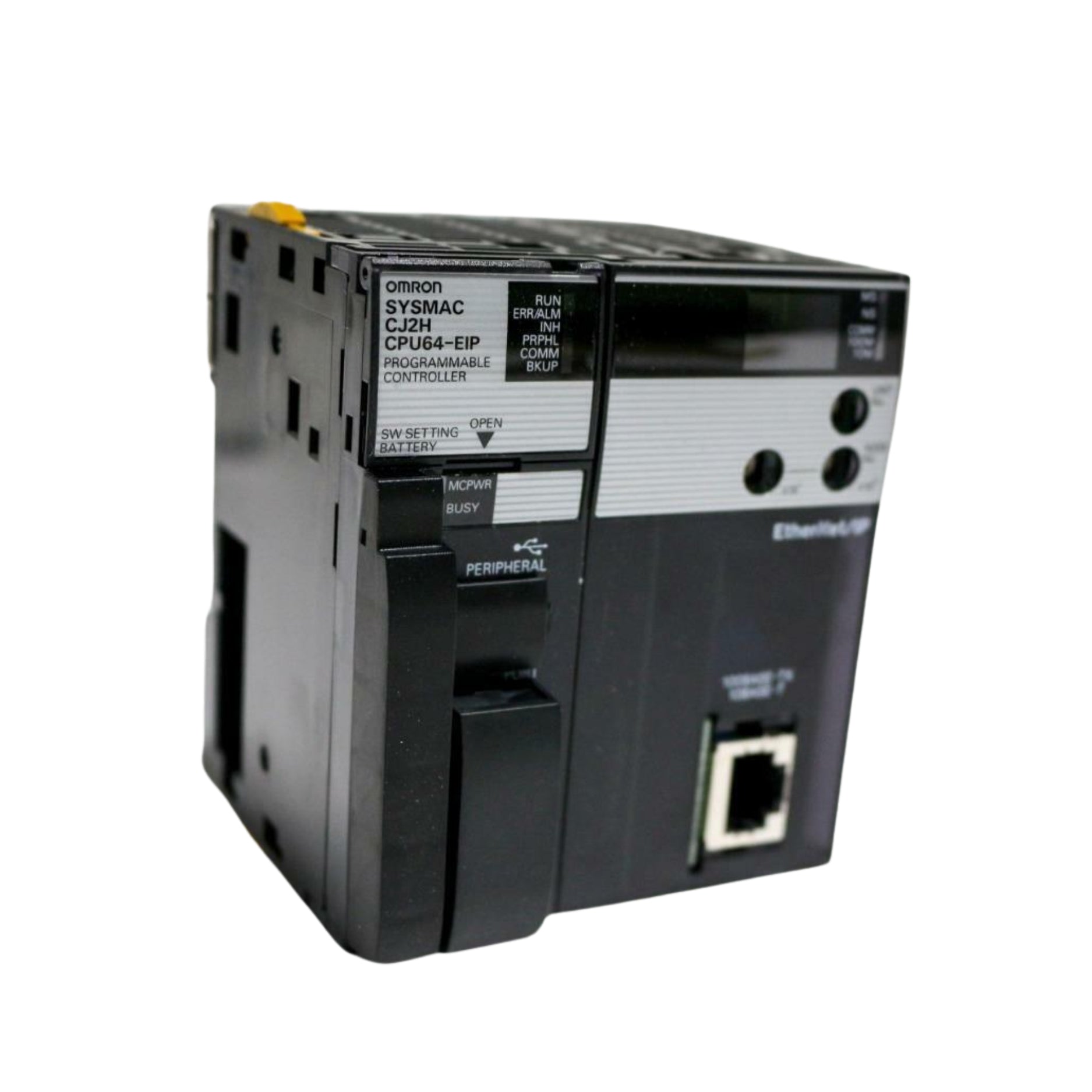

Omron CJ2H-CPU64-EIP

Omron CJ2H-CPU64-EIP | Advanced PLC for High-Speed, High-Capacity Automation Systems

Overview

The Omron CJ2H-CPU64-EIP is a high-performance Programmable Logic Controller (PLC) designed to meet the demands of complex and large-scale industrial automation systems. With a program capacity of 50K steps and 160K words of data memory, this PLC offers ample space for intricate control programs and data handling. The built-in EtherNet/IP port facilitates seamless integration into modern networked environments, enabling high-speed communication and data exchange.

Key Features

• Program Capacity: 50K steps, accommodating complex control algorithms and sequences.

• Data Memory: 160K words, providing extensive storage for variables and data logging.

• Built-in Communication Ports:

  • EtherNet/IP: Enables high-speed, high-capacity Ethernet-based networking for real-time data exchange and remote access.

  • RS-232C Serial Port: Allows connection to serial devices such as HMIs, barcode readers, and other peripherals.

  • USB Programming Port: Facilitates easy and quick programming and debugging via standard USB connection.

• I/O Capacity: Supports up to 2,560 local I/O points across a maximum of 40 units, allowing for extensive system expansion.

• High-Speed Processing: Basic instruction execution time of 0.016 µs, ensuring rapid response and precise control.

• Expansion Capability: Supports up to 3 expansion racks, providing flexibility for system growth and additional modules.

• Compact Design: Dimensions of 90 mm (H) × 79.8 mm (W) × 74.5 mm (D), optimizing control panel space.

Technical Specifications

• Model Number: CJ2H-CPU64-EIP

• Program Capacity: 50K steps

• Data Memory Capacity: 160K words

• Execution Time: Basic instructions: 0.016 µs min.; Special instructions: 0.048 µs min.

• I/O Capacity: 2,560 points / 40 units (maximum of 3 expansion racks)

• Communication Ports:

  • EtherNet/IP: 1 port

  • RS-232C Serial Port: 1 port

  • USB Programming Port: 1 port

• Current Consumption: 5 VDC, 0.82 A

• Operating Temperature Range: 0°C to 55°C

• Storage Temperature Range: -20°C to 70°C (excluding battery)

• Operating Humidity Range: 10% to 90% (with no condensation)

• Vibration Resistance: Conforms to IEC60068-2-6 standards

• Shock Resistance: Conforms to IEC60068-2-27 standards

• Dimensions: 90 mm (H) × 79.8 mm (W) × 74.5 mm (D)

• Weight: Approximately 280 g

• Certifications: CE, cULus, Lloyd, NK

Applications

• Manufacturing Automation: Ideal for controlling complex machinery and production lines requiring high-speed processing and extensive I/O.

• Process Control: Suitable for industries such as chemical, pharmaceutical, and food processing, where precise control and data logging are critical.

• Material Handling Systems: Manages conveyors, sorters, and automated storage and retrieval systems with efficiency.

• Energy Management: Monitors and controls energy distribution systems, ensuring optimal performance and reliability.

• Building Automation: Integrates various building systems like HVAC, lighting, and security for centralized control and monitoring.

Why Choose Omron CJ2H-CPU64-EIP?

• Integrated EtherNet/IP: Simplifies network architecture and reduces the need for additional communication modules.

• High-Speed Processing: Ensures rapid execution of control programs, enhancing system responsiveness.

• Scalable Architecture: Accommodates system expansion with support for multiple I/O units and expansion racks.

• Versatile Connectivity: Multiple communication ports provide flexibility in connecting to various devices and networks.

• Robust and Reliable: Designed to withstand industrial environments with compliance to international standards.

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron I/O modules, power supplies, and other automation components to complete your system setup.
