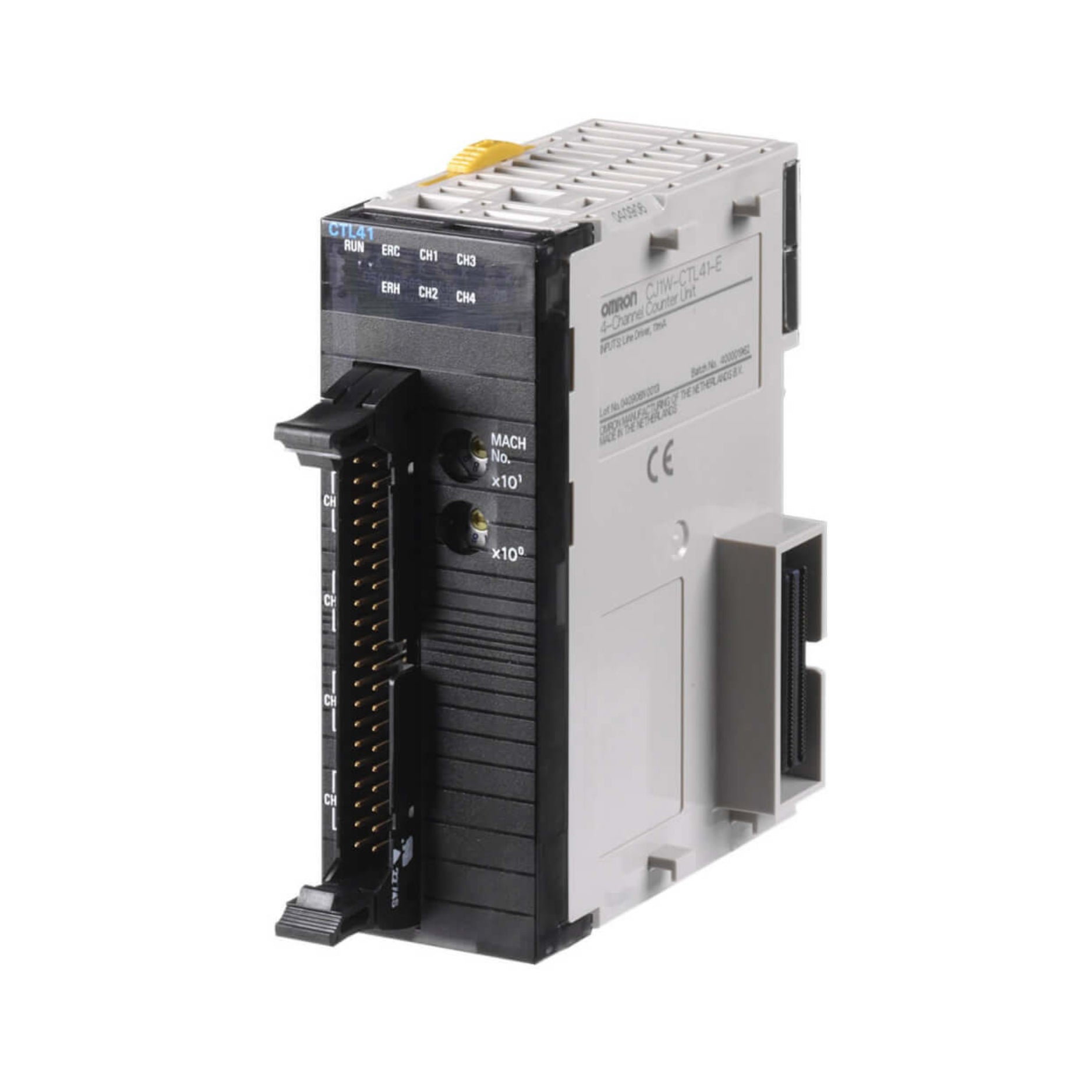

Omron CJ1W-CTL41-E | 4-Axis Position Control Module

Omron CJ1W-CTL41-E | High-Speed Pulse I/O Module for Precise Multi-Axis Motion Control

Overview

The CJ1W-CTL41-E is a 4-axis position control module for Omron CJ-Series PLCs, designed to provide pulse train outputs and encoder feedback for high-speed, high-precision motion control. Capable of controlling up to four axes simultaneously, it’s perfect for applications that demand responsive and synchronized positioning.

Key Features

• 4 Independent Axes: Simultaneously controls 4 servo or stepper drives

• Pulse Output: Up to 500 kHz pulse train output per axis

• Encoder Feedback: 4 inputs for incremental encoders to support closed-loop control

• Control Modes: Positioning, origin return, jog operation, speed control

• Data Refresh Rate: 1 ms for real-time performance

• Compatibility: Fully integrates with Omron CJ-Series PLCs

• Advanced Features: Interpolation (linear and circular), cam profiles, and origin search functions

Technical Specifications

• Model Number: CJ1W-CTL41-E

• Number of Axes: 4

• Pulse Output Frequency: Max. 500 kHz

• Output Signal Type: Pulse + direction or CW/CCW

• Encoder Input: 4 channels, differential or single-ended

• Input Frequency: Max. 500 kHz

• Mounting: DIN rail

• Power Supply: 5 VDC (supplied by PLC rack)

• Operating Temperature: 0°C to 55°C

• Dimensions: Approx. 90 mm (H) × 31 mm (W) × 89 mm (D)

• Certifications: CE, cULus

Applications

• Robotics and Automated Machinery

• CNC Systems and Precision Assembly

• Pick-and-Place Machines

• Packaging Equipment

• Inspection and Testing Systems

Why Choose Omron CJ1W-CTL41-E?

• Multi-axis support for complex motion control in compact form

• High-speed pulse control enables accurate, responsive movements

• Encoder feedback allows closed-loop precision and diagnostics

• Omron reliability with global support and integration flexibility
