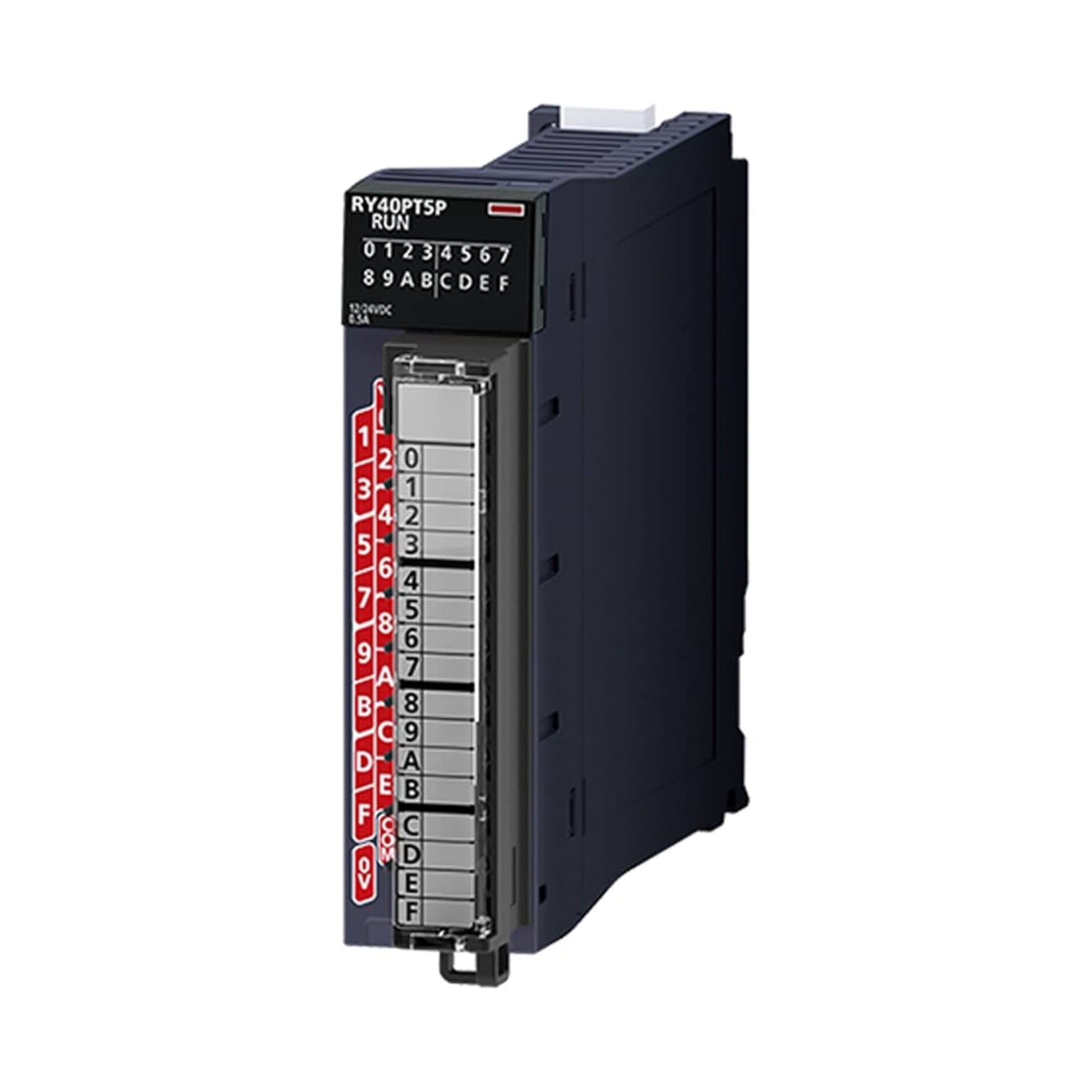

Mitsubishi RY40PT5P

Mitsubishi RY40PT5P

Overview

The Mitsubishi RY40PT5P is a 16-point digital output module designed for the MELSEC iQ-R series PLCs. It supports 12–24V DC source-type transistor outputs and provides fast switching speeds, making it ideal for real-time industrial automation control. The module features screw terminal connections, photocoupler isolation, and is built for demanding factory environments.

Key Features

• Series: MELSEC iQ-R

• Output Type: Transistor, Source (PNP)

• Rated Voltage: 12–24V DC

• Output Points: 16

• Output Current: 0.5A per point, 5A per common

• Wiring Method: Screw terminal

• Response Time: 1 ms or less

• Isolation Method: Photocoupler

• Protection: Overload and overheat protection

• Mounting Type: Rack-mounted in iQ-R base unit

Technical Specifications

• Catalog Number: RY40PT5P

• Output Voltage Range: 10.2–28.8V DC

• Rated Output Current: 0.5A/point, 5A/common

• Points per Module: 16

• Response Time: ≤1 ms

• Leakage Current (OFF): ≤0.1 mA

• Voltage Drop (ON): ≤0.2V DC

• Insulation Type: Photocoupler

• Mounting Format: iQ-R series rack

• Operating Temperature: 0°C to 55°C

• Dimensions: Approx. 106 x 28 x 90 mm

• Weight: ≈ 0.2 kg

• Certifications: CE, UL, RoHS

Applications

• Factory automation outputs

• Solenoid and actuator control

• Signal tower and indicator outputs

• Material handling systems

• Machine tools and robotics

Why Choose the RY40PT5P

• Fast Switching: 1 ms response for real-time output

• Flexible Voltage Support: Operates from 12 to 24V DC

• Easy Wiring: Screw terminal connection simplifies installation

• Reliable Isolation: Photocoupler protection for long-term use

• Designed for iQ-R: Seamless integration with Mitsubishi’s advanced PLC platform

Order Now

The Mitsubishi RY40PT5P digital output module is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
