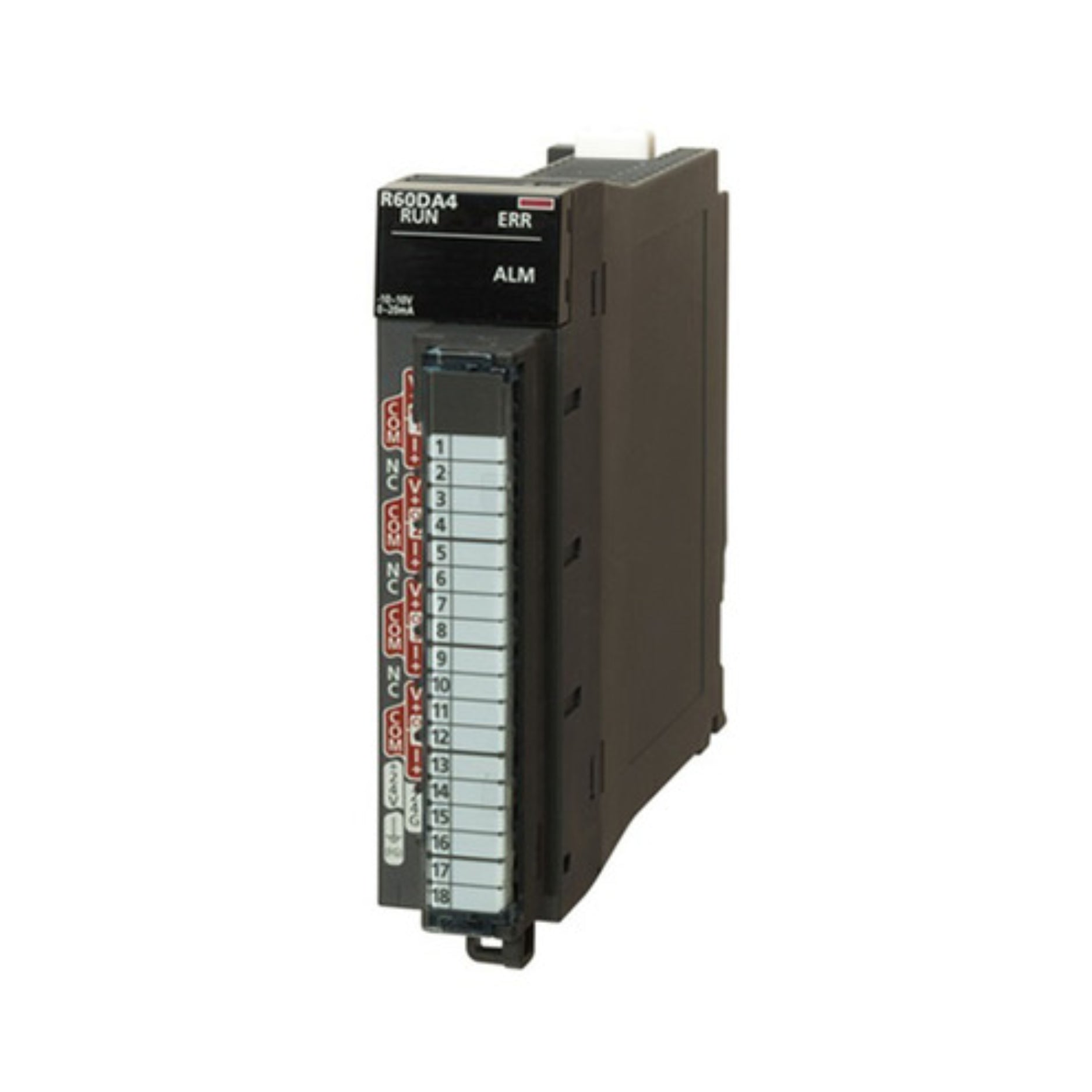

Mitsubishi R60DA4

Mitsubishi R60DA4

Overview

The Mitsubishi R60DA4 is a 4-channel analog output module designed for the MELSEC iQ-R series PLC platform. It provides precise voltage or current output control, enabling high-performance analog signal processing for a wide range of automation and control applications.

Key Features

• 4 analog output channels

• Output types: Voltage (±10 V, 0–10 V) or Current (4–20 mA, 0–20 mA)

• 16-bit resolution for accurate signal output

• Isolated channels for reliable operation

• Channel-specific output range settings

• Built-in diagnostics and error detection

• High-speed response for real-time control

• Compact design for space-saving installation

Technical Specifications

• Catalog Number: R60DA4

• Number of Channels: 4 analog outputs

• Output Range:

  • Voltage: ±10 V, 0–10 V, 1–5 V

  • Current: 4–20 mA, 0–20 mA

• Resolution: 16-bit

• Power Supply: From base unit (no external supply required)

• Isolation: Channel-to-channel and channel-to-PLC

• Operating Temperature: 0 °C to +55 °C

• Mounting: DIN rail (via iQ-R base unit)

• Dimensions: Standard iQ-R module size

• Certifications: CE, UL, cUL, RoHS

Applications

• Analog control of valves, actuators, and drives

• Industrial process automation

• Temperature, pressure, and flow control systems

• Dosing and mixing equipment

• Precision output signal generation

Why Choose the R60DA4

• High-resolution analog output for precise control

• Supports multiple signal ranges per channel

• Seamless integration with MELSEC iQ-R systems

• Built-in diagnostics for enhanced reliability

• Ideal for advanced analog applications in industrial automation

Order Now

The Mitsubishi R60DA4 analog output module is available and ships worldwide.
