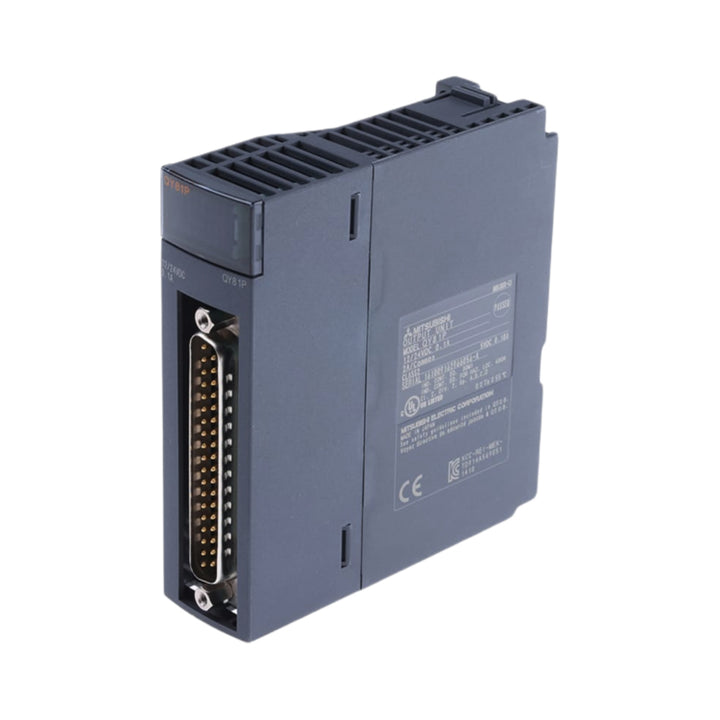

Mitsubishi QY81P

Mitsubishi QY81P

Overview

The Mitsubishi QY81P is a 16-point digital output module for the MELSEC-Q series PLCs, offering sink/source output flexibility with 24V DC voltage. Designed for high-speed signal switching, it is ideal for controlling actuators, relays, solenoids, and indicator devices in a wide range of automation systems.

Key Features

• Series: MELSEC-Q

• Output Type: Transistor (sink/source selectable)

• Number of Outputs: 16

• Rated Voltage: 24V DC

• Output Current: 0.5A/point, 4A/common

• Switching Time: ≤0.1ms

• Interface: Screw terminal block

• Isolation: Photocoupler

• LED Indicators: Per output channel

• Mounting: Installed in Q-series base unit

• Protection: Overcurrent and short-circuit protection

Technical Specifications

• Model Number: QY81P

• Voltage: 24V DC (sink/source)

• Total Output Points: 16

• Max Current per Point: 0.5A

• Max Current per Common: 4A

• Response Time: ≤0.1ms

• Insulation Type: Photocoupler isolation

• Mounting Type: Rack mount (Q series base unit)

• Operating Temperature: 0°C to 55°C

• Dimensions: Approx. 98 x 27.4 x 90 mm

• Weight: ≈ 0.2 kg

• Certifications: CE, UL, cUL, RoHS

Applications

• Control of indicator lights and signal towers

• Driving relays, solenoids, and small actuators

• Conveyor and packaging systems

• Machine tools and general industrial automation

• Output signaling for alarms and monitoring devices

Why Choose the QY81P

• Flexible Output Mode: Supports both sink and source wiring

• Fast Switching: Response time under 0.1ms for real-time control

• Compact & Modular: Fits easily into MELSEC-Q base units

• Safe & Reliable: Built-in short-circuit and overcurrent protection

• Industry Standard: Proven reliability in global automation systems

Order Now

The Mitsubishi QY81P digital output module is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
