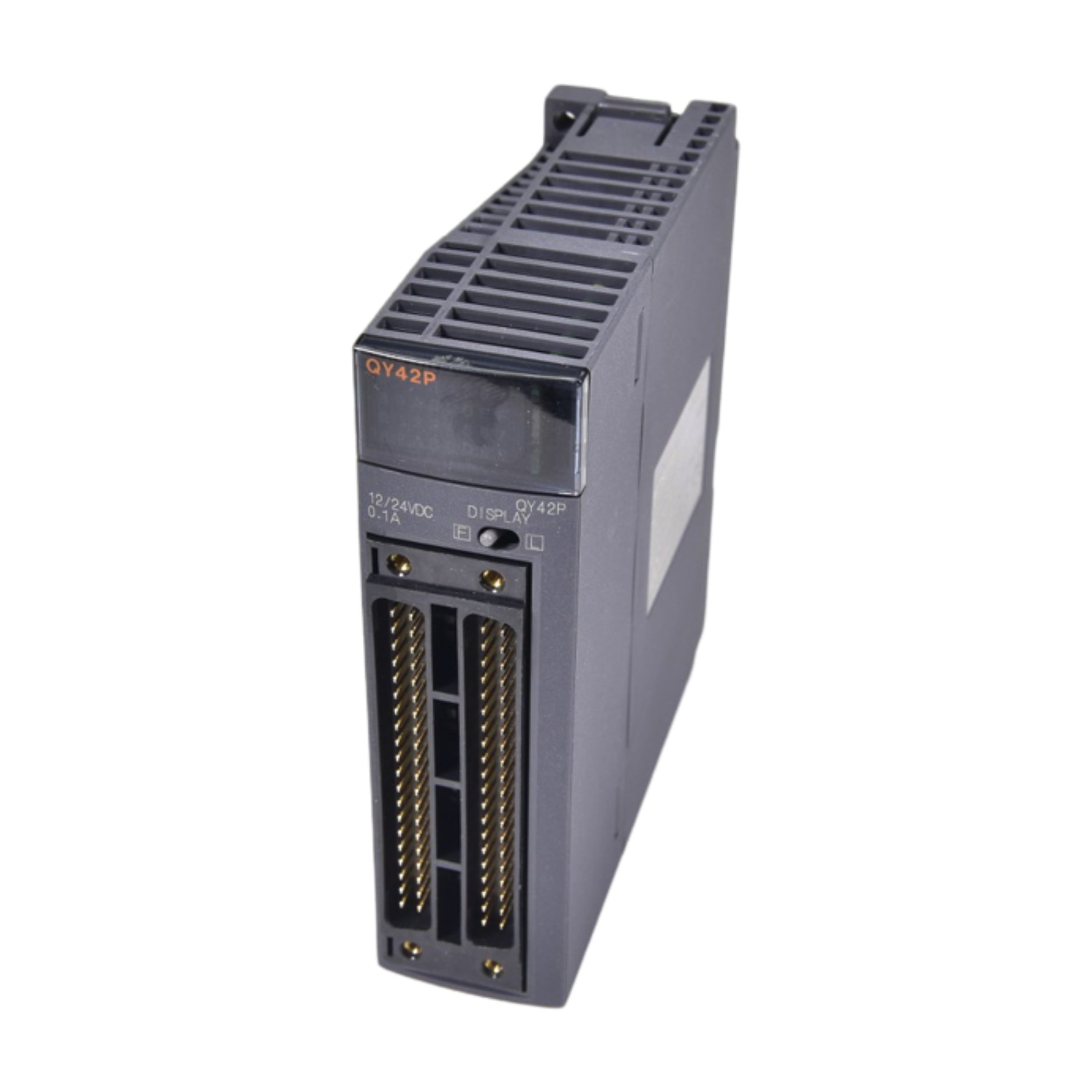

Mitsubishi QY42P

Mitsubishi QY42P

Overview

The Mitsubishi QY42P is a 32-point digital output module in the Q Series PLC family, designed for 24V DC sink/source output control. With built-in LED indicators and high-density I/O, it allows compact, efficient automation in a wide range of industrial systems. Ideal for controlling actuators, solenoids, lamps, and relay logic.

Key Features

• Series: Mitsubishi Q Series

• Output Type: Digital (Transistor)

• Output Mode: Sink/Source selectable

• Output Points: 32 channels

• Rated Voltage: 24V DC

• Output Current: 0.5A per point, 4A per common

• Indicators: Individual LED output status

• Terminal Type: 40-pin connector

• Mounting: DIN rail (base rack)

Technical Specifications

• Model Number: QY42P

• Rated Voltage: 24V DC

• Number of Outputs: 32 points (4 groups of 8)

• Output Type: Transistor (sink/source)

• Max Current per Point: 0.5A

• Max Current per Common: 4A

• Response Time: < 0.2 ms

• Isolation: Photocoupler per channel

• Power Consumption: 5.8W

• Ambient Temperature: 0°C to 55°C

• Storage Temperature: –25°C to 75°C

• Dimensions: Approx. 98 × 27.4 × 90 mm

• Weight: ≈ 0.2 kg

• Certifications: CE, UL, cUL, RoHS

Applications

• Solenoid valve actuation

• Lamp and LED control

• Relay logic output systems

• Machine automation panels

• OEM systems using Q Series architecture

Why Choose the QY42P

• High-Density Output: 32 points in compact format

• Flexible Wiring: Sink/source selectable per application

• Built-In Diagnostics: LED indicators for quick status checks

• Fast Switching: Reliable for real-time automation tasks

• Q Series Integration: Plug-and-play into Mitsubishi Q racks

Order Now

The Mitsubishi QY42P digital output module is available and ships worldwide.
