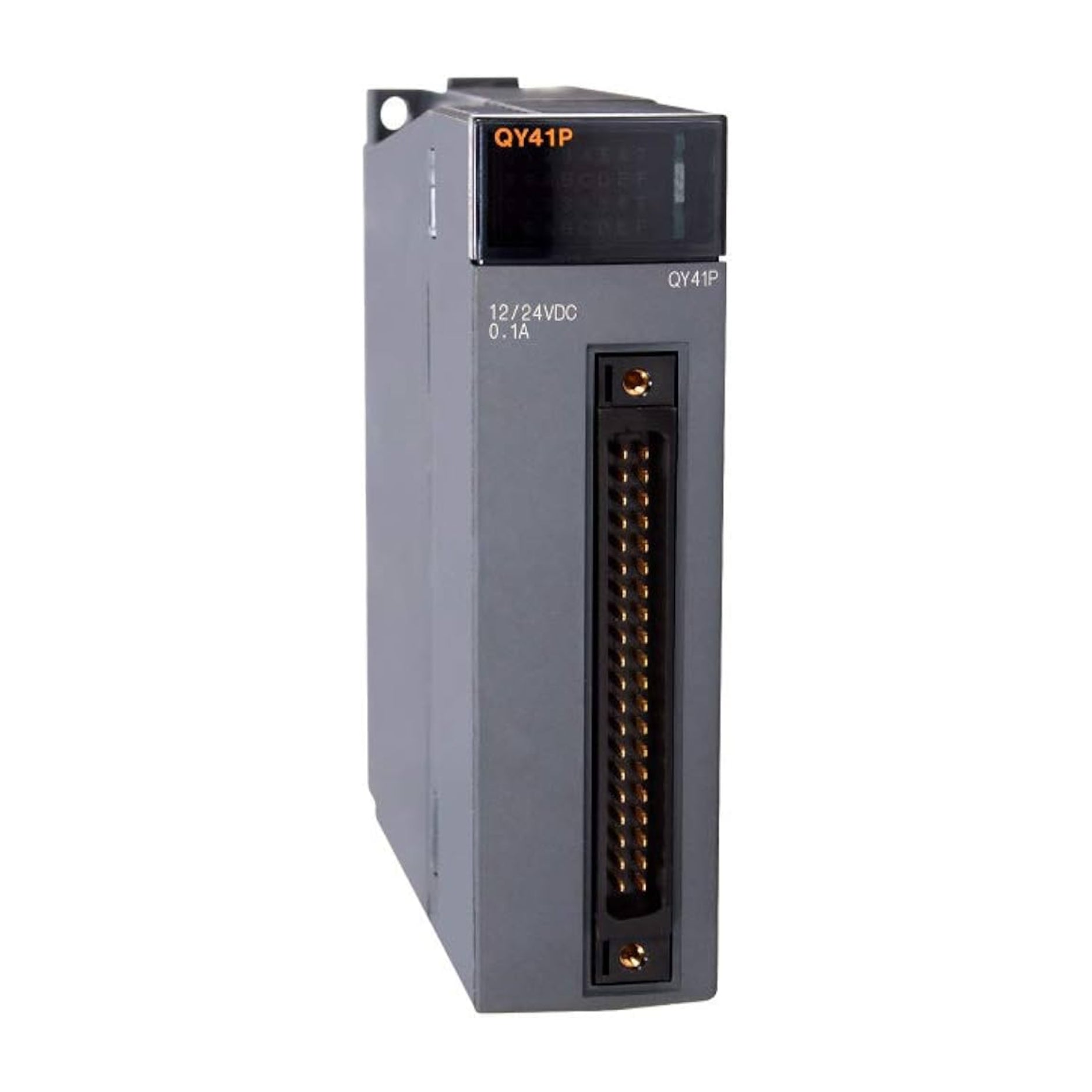

Mitsubishi QY41P

Mitsubishi QY41P

Overview

The Mitsubishi QY41P is a 16-point transistor output module for Mitsubishi Q Series PLCs, supporting 24V DC sink/source output types. Designed for high-speed control applications, it features quick response times and compact DIN rail mounting, making it ideal for controlling solenoids, relays, and indicator lights.

Key Features

• Series: Mitsubishi Q Series

• Output Points: 16 channels

• Output Type: Transistor (sink/source selectable)

• Output Voltage: 24V DC

• Max Output Current: 0.5A/point, 4A/module

• Response Time: ≤ 0.2 ms

• Isolation: Photocoupler

• Built-in Diagnostics: Short-circuit detection, status LEDs

• Mounting: Base unit (rack-mounted)

Technical Specifications

• Catalog Number: QY41P

• Output Type: Transistor (sink/source)

• Rated Voltage: 24V DC

• Output Points: 16

• Max Current/Point: 0.5 A

• Max Current/Module: 4 A total

• ON Voltage Drop: ≤ 1.5V

• OFF Leakage Current: ≤ 0.1 mA

• Response Time: OFF → ON: ≤ 0.2 ms / ON → OFF: ≤ 0.2 ms

• Insulation Resistance: ≥ 50 MΩ

• Ambient Temperature: 0°C to 55°C

• Dimensions: Approx. 98 x 27.4 x 90 mm

• Weight: ≈ 0.2 kg

• Certifications: CE, UL, RoHS

Applications

• Output control of relays and solenoids

• LED indicators and alarm signal output

• High-speed machine automation

• Conveyor systems and I/O panels

• OEM machinery and control cabinets

Why Choose the QY41P

• Flexible Output Modes: Sink/source transistor outputs

• High-Speed Switching: Ideal for responsive automation

• Compact & Modular: Saves space in control systems

• Diagnostic Functions: LED indicators and protection circuits

• Reliable Operation: Designed for industrial environments

Order Now

The Mitsubishi QY41P transistor output module is available and ships worldwide.
