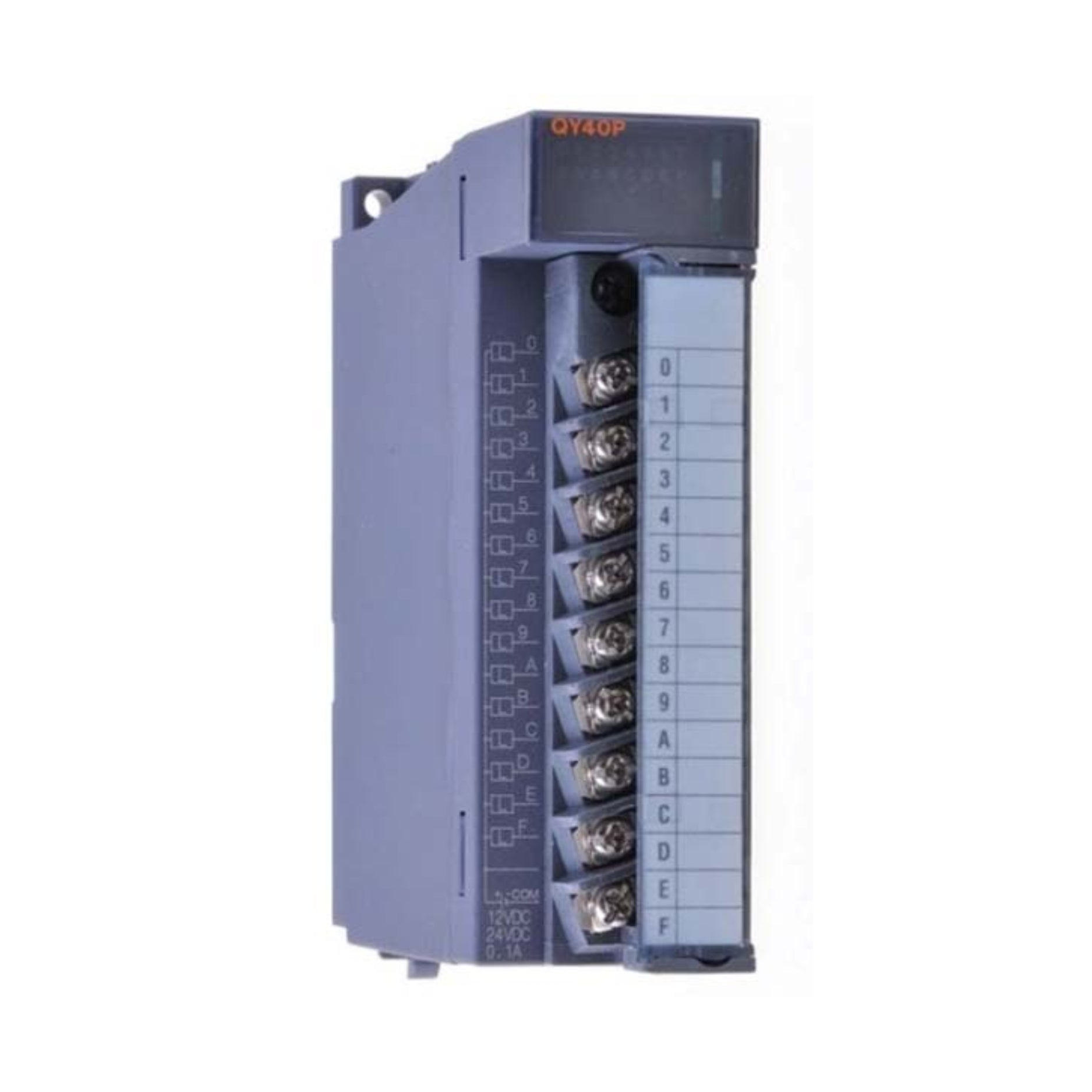

Mitsubishi QY40P

Mitsubishi QY40P

Overview

The Mitsubishi QY40P is a 32-point digital output module designed for the MELSEC-Q series PLCs, supporting 24V DC source-type transistor outputs. With fast response, compact design, and screw terminal wiring, it provides reliable output control for a wide range of industrial applications. Built for long-term operation, it features photocoupler isolation and is ideal for driving indicator lights, relays, and actuators.

Key Features

• Series: MELSEC-Q

• Output Type: Transistor (source type, PNP)

• Rated Voltage: 24V DC

• Output Points: 32

• Output Current: 0.5A per point, 4A per common

• Wiring Method: Screw terminal block

• Isolation: Photocoupler per channel

• Response Time: ≤ 0.1 ms

• Mounting: Installed in Q-series base unit

• Protection: Overcurrent and short-circuit protection

• Status LEDs: Per output channel

Technical Specifications

• Catalog Number: QY40P

• Voltage Range: 15–30V DC

• Output Type: Source (PNP) transistor

• Points per Module: 32

• Max Current per Point: 0.5A

• Max Current per Common: 4A

• Response Time: ≤ 0.1 ms

• Leakage Current (OFF): ≤ 0.1 mA

• Voltage Drop (ON): ≤ 0.5V

• Insulation Type: Photocoupler

• Mounting Method: Rack mount (MELSEC-Q base unit)

• Operating Temperature: 0°C to 55°C

• Dimensions: Approx. 98 x 27.4 x 90 mm

• Weight: ≈ 0.2 kg

• Certifications: CE, UL, RoHS

Applications

• Solenoid and actuator control

• Signal tower and lamp outputs

• Conveyor systems

• Material handling equipment

• Machine automation panels

Why Choose the QY40P

• High-Density Outputs: 32 output points in a compact module

• Fast Switching: Ideal for real-time automation systems

• Safe & Reliable: Photocoupler isolation and output protection

• Easy Wiring: Screw terminals simplify installation and maintenance

• Fully Compatible: Seamless integration with MELSEC-Q platforms

Order Now

The Mitsubishi QY40P digital output module is available and ships worldwide.
