Overview

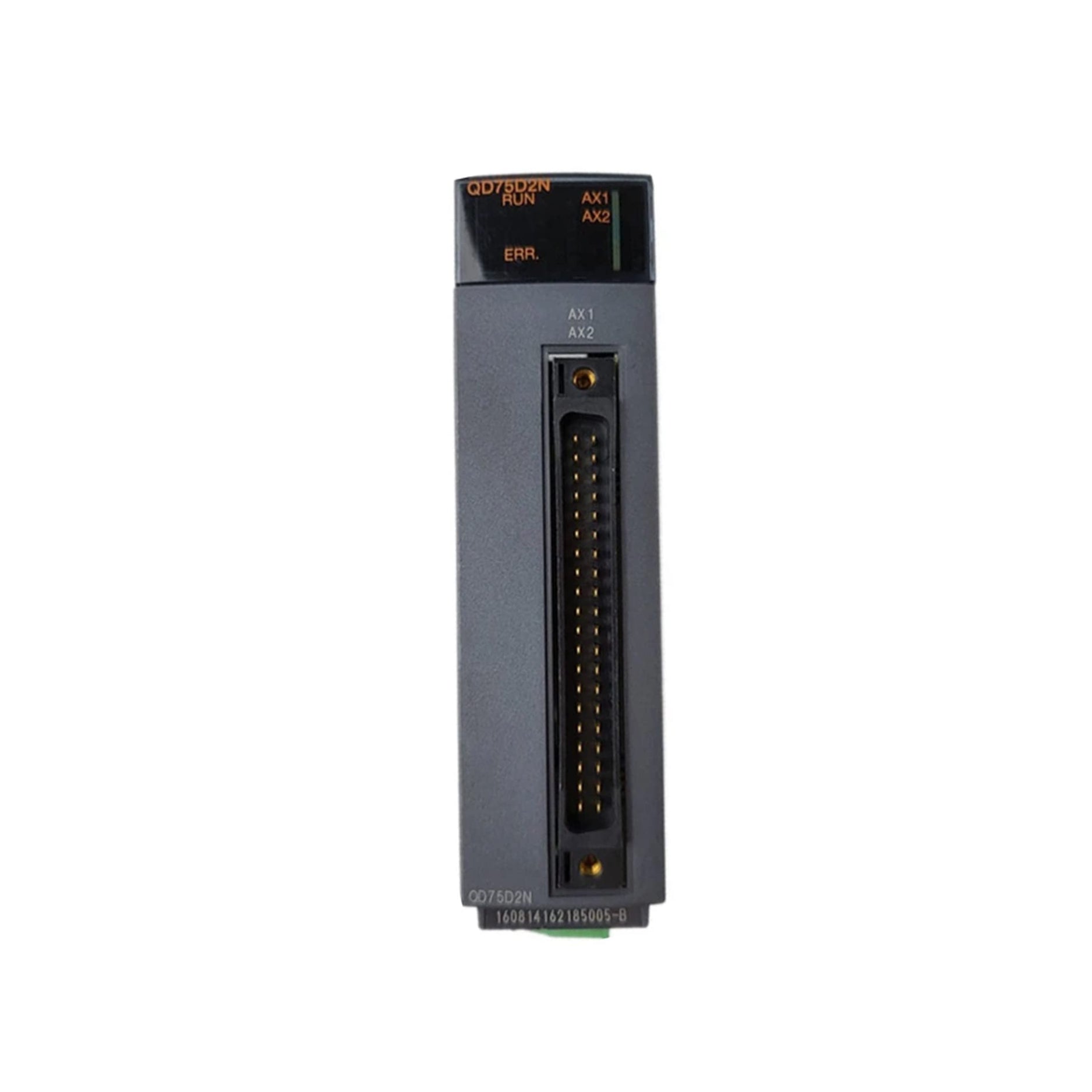

The Mitsubishi QD75D2N is a high-performance 2-axis positioning module designed for precise control of servo and stepper motors. Part of the MELSEC-Q series, it offers pulse train outputs and is ideal for applications requiring accurate motion control in compact automation systems.

Key Features

• 2-axis pulse output control

• Supports linear and circular interpolation

• High-speed positioning via pulse train

• Absolute and relative positioning modes

• Advanced motion profiles and speed control

• Compatible with MELSEC-Q series PLCs

Technical Specifications

• Mitsubishi Code: QD75D2N

• Series: MELSEC-Q

• Number of Axes: 2

• Control Method: Pulse output (line driver)

• Max Output Frequency: 2 Mpps

• Power Supply: 5 VDC (from base unit)

• Positioning Modes: Absolute, relative, interpolation

• Compatible Motors: Servo/stepper motors

• Dimensions (W x H x D): Approx. 27.4 x 98 x 90 mm

• Mounting: Q-series base unit slot

Applications

• CNC machinery

• Robotic arms

• Pick-and-place systems

• Packaging and labeling lines

• Semiconductor and electronic assembly

Why Choose Mitsubishi QD75D2N?

• High-speed and precise motion control

• Seamless integration with Mitsubishi Q-series PLCs

• Flexible motion programming and diagnostics

• Compact footprint with powerful functionality

• Proven Mitsubishi reliability in automation

Order Now

Achieve fast and accurate motion control with the Mitsubishi QD75D2N positioning module — precision-engineered for your automation needs.
