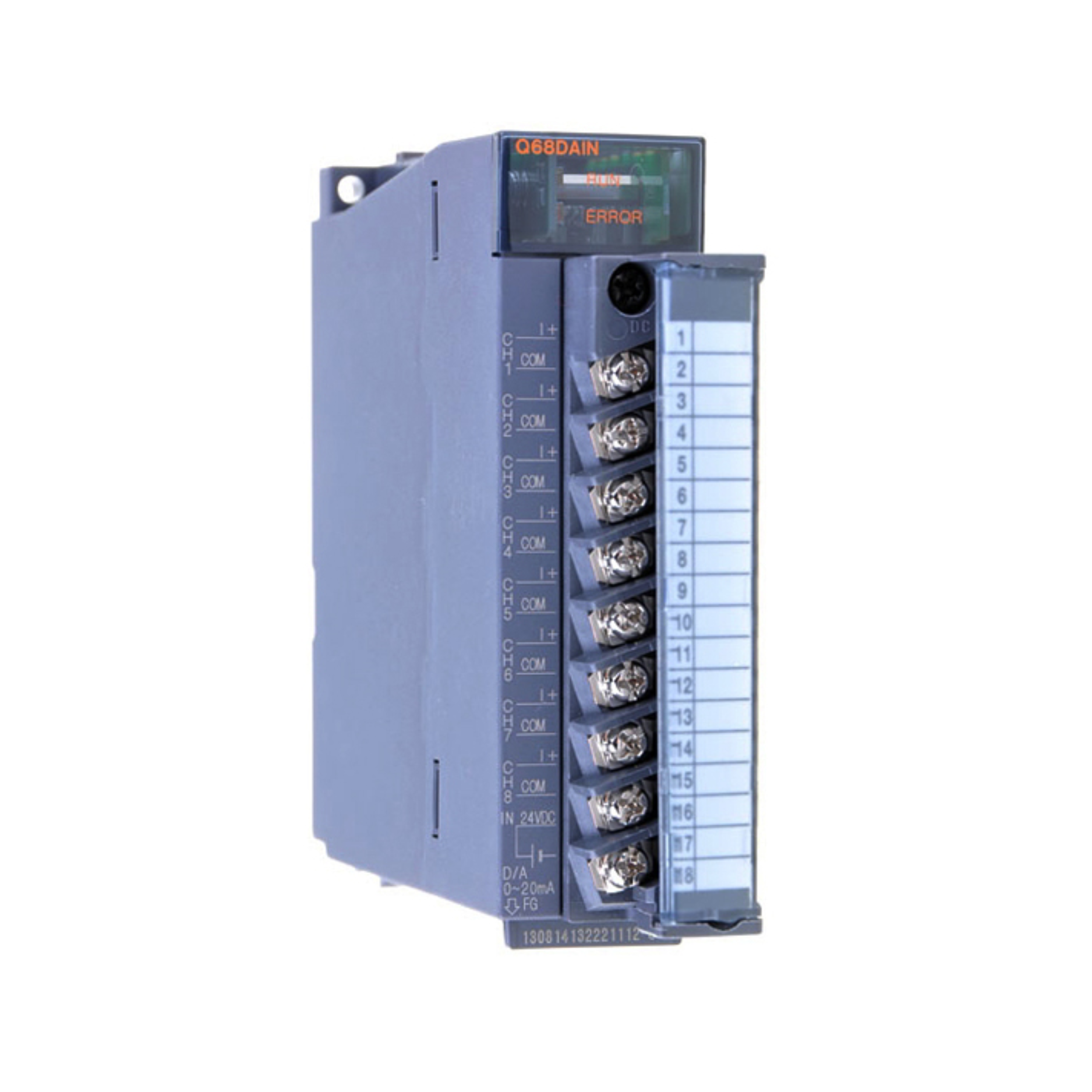

Mitsubishi Q68DAIN

Mitsubishi Q68DAIN | 8-Channel High-Resolution Analog Output Module – Q Series

Overview

The Mitsubishi Q68DAIN is an 8-channel analog output module designed for the MELSEC Q Series PLC platform. It provides both voltage and current output with 16-bit resolution, making it ideal for precise analog signal control in industrial automation applications such as actuator control, process control, and instrumentation.

Key Features

• Output Channels: 8

• Output Types: Voltage (0–10V, ±10V) and Current (0–20 mA, 4–20 mA)

• Resolution: 16-bit (1/65,536 steps)

• Channel Isolation: Each channel is isolated from the system and other channels

• Conversion Speed: Fast and consistent signal processing

• Terminal Block Connection: Simplifies wiring

Technical Specifications

• Model: Q68DAIN

• Series: MELSEC Q Series

• Voltage Output Range: ±10V, 0–10V

• Current Output Range: 0–20 mA, 4–20 mA

• Power Supply: From base unit (5V DC)

• Ambient Operating Temperature: 0°C to 55°C

• Mounting: Rack-mounted (Q Series base)

• Weight: Approx. 0.25 kg (0.55 lbs)

• Certifications: CE, UL, RoHS

Applications

• Actuator and valve control

• Analog interfacing with third-party devices

• Process automation

• Flow, temperature, and pressure control systems

• Distributed I/O systems

Why Choose the Q68DAIN?

• High Precision: 16-bit output resolution for smooth analog control

• Multiple Output Types: Voltage and current options per channel

• Reliable Mitsubishi Design: Industrial-grade performance

• Ideal for Complex Systems: Supports a wide range of automation needs

Order Now

The Mitsubishi Q68DAIN analog output module is in stock and available for fast worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
