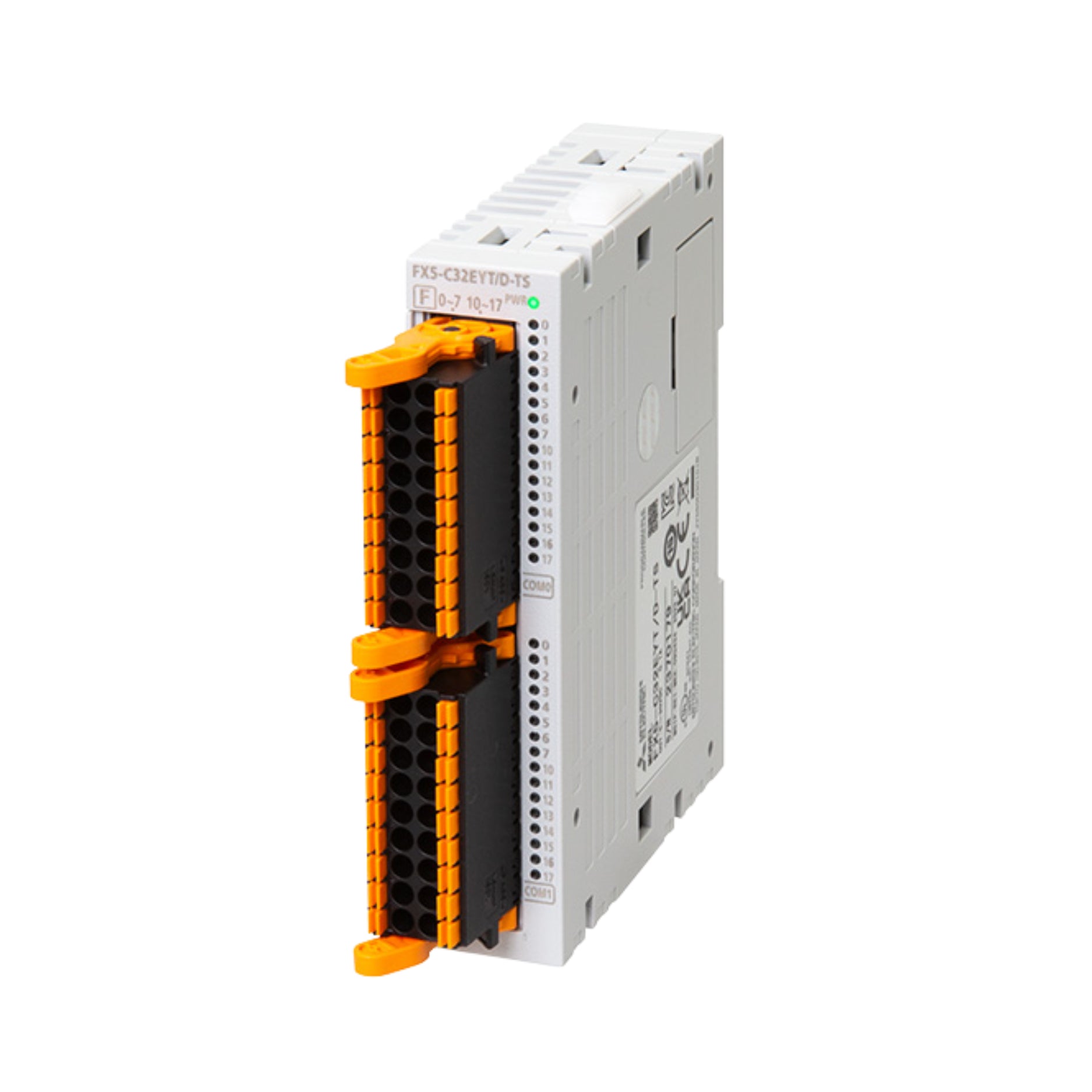

Mitsubishi FX5-C32EYT/D

Mitsubishi FX5-C32EYT/D

Overview

The Mitsubishi FX5-C32EYT/D is a 32-point transistor output module designed for the FX5 series PLC platform. This model provides 24V DC source-type outputs, supporting fast switching and high-density wiring, making it ideal for controlling a wide range of digital devices in industrial automation.

Key Features

• Series: FX5

• Output Points: 32 channels

• Output Type: Transistor (source)

• Output Voltage: 24V DC

• Mounting Type: DIN rail or direct panel mount

• Status Indicators: Individual LED for each output

• Terminal Type: Screw terminal block

• Protection: Built-in short-circuit and overload protection

• Application: General-purpose digital output

Technical Specifications

• Catalog Number: FX5-C32EYT/D

• Voltage Rating: 24V DC

• Output Type: Source-type transistor

• Number of Outputs: 32

• Max Output Current: 0.5A/point, 4A/common

• ON Voltage Drop: ≤ 0.8V

• OFF Leakage Current: ≤ 0.1mA

• Response Time: OFF → ON ≤ 0.2 ms / ON → OFF ≤ 0.2 ms

• Ambient Temperature: 0°C to 55°C

• Storage Temperature: -25°C to 75°C

• Protection Rating: IP20

• Dimensions: Approx. 90 x 65 x 83 mm

• Weight: ≈ 0.25 kg

• Certifications: CE, UL, RoHS

Applications

• Controlling indicators and relays

• General machine automation

• Conveyor systems

• High-speed discrete output tasks

• OEM and modular control panels

Why Choose the FX5-C32EYT/D

• High Output Density: 32 channels in a compact module

• Fast Switching Performance: Ideal for time-critical systems

• Reliable Output Control: Built-in diagnostics and LED indicators

• Seamless Integration: Designed for FX5 PLCs

• Versatile Wiring Options: Screw terminals for easy installation

Order Now

The Mitsubishi FX5-C32EYT/D output module is available and ships worldwide.
