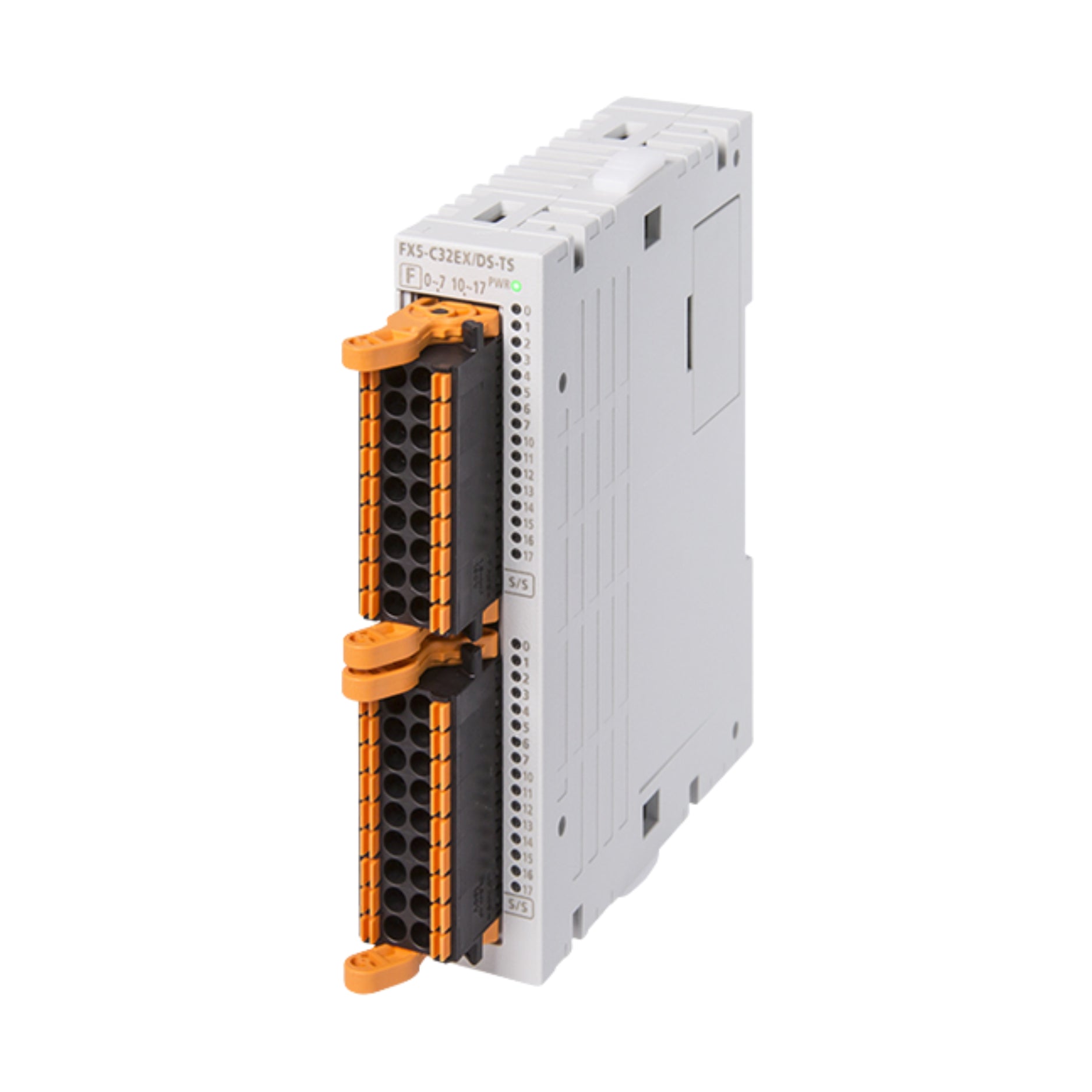

Mitsubishi FX5-C32EX/DS-TS

Mitsubishi FX5-C32EX/DS-TS

Overview

The Mitsubishi FX5-C32EX/DS-TS is a 32-point digital input extension module designed for the FX5U/FX5UC PLCs in the MELSEC iQ-F series. Featuring a source-type configuration, it offers fast and reliable signal acquisition, ideal for expanding input capacity in compact industrial control systems.

Key Features

• 32 digital input points

• Input type: Source (PNP-compatible)

• Voltage: 24 V DC

• Terminal block type: Spring clamp

• DIN rail or panel mountable

• High-speed input response

• Compact size for control panel efficiency

• Status LEDs for all input channels

Technical Specifications

• Model Number: FX5-C32EX/DS-TS

• Number of Inputs: 32 (source-type)

• Rated Voltage: 24 V DC (20.4–26.4 V range)

• Input Current: 7 mA per point (at 24 V DC)

• Response Time: 0.2 ms / 1.5 ms (selectable)

• Terminal Style: Spring clamp

• Power Supply: Internal from base unit

• Mounting: DIN rail or panel

• Operating Temp: 0 °C to +55 °C

• Certifications: CE, UL, RoHS

Applications

• Discrete I/O expansion for FX5U/FX5UC PLCs

• Machine automation and packaging equipment

• Sensor and switch monitoring

• OEM industrial panel builders

• High-speed digital input acquisition

Why Choose the FX5-C32EX/DS-TS

• Efficient I/O expansion with 32 input points

• PNP-compatible source-type input for modern sensors

• Fast and reliable response for real-time control

• Compact and easy to install

• Backed by Mitsubishi’s trusted iQ-F platform

Order Now

The Mitsubishi FX5-C32EX/DS-TS input module is available and ships worldwide.
