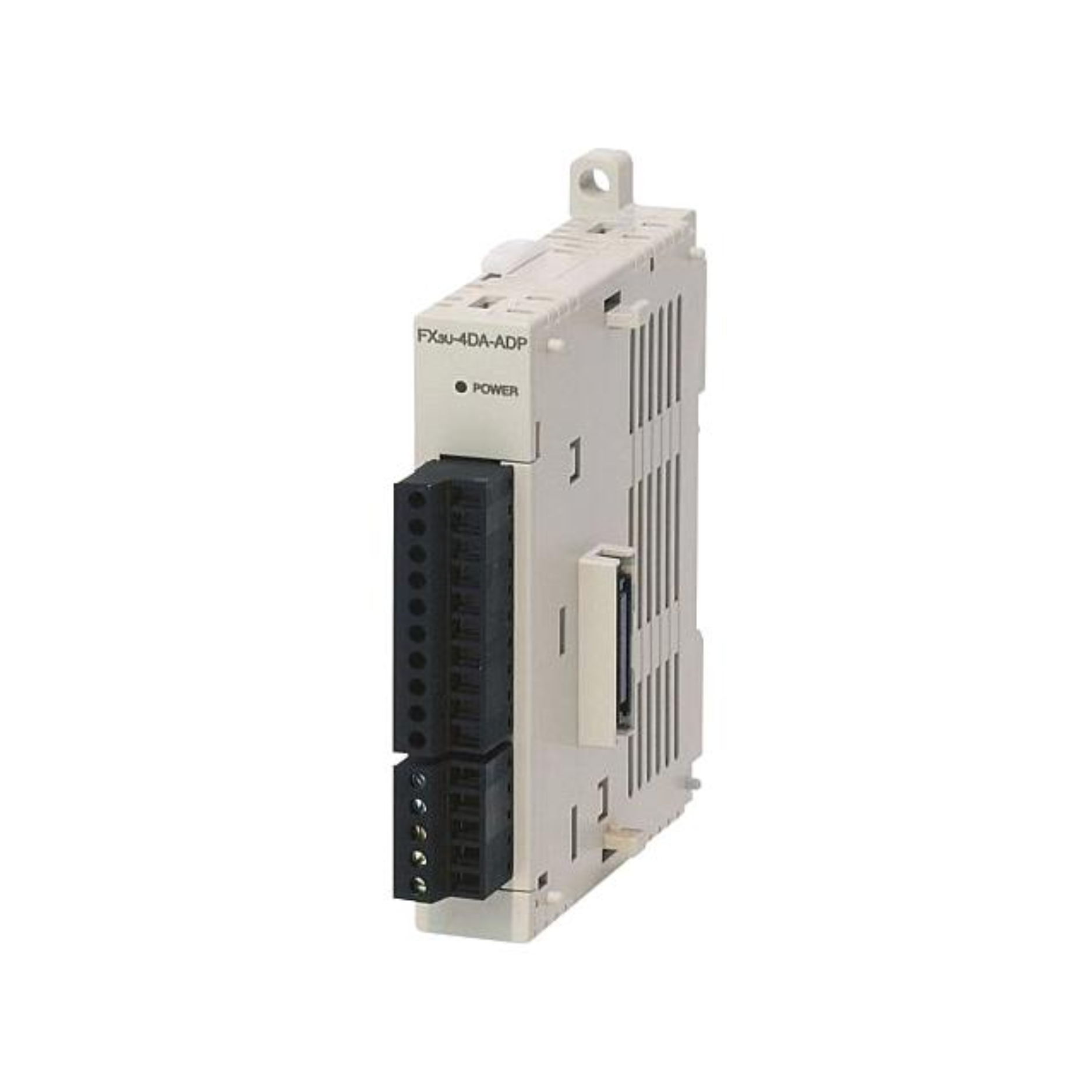

Mitsubishi FX3U-4DA-ADP

Mitsubishi FX3U-4DA-ADP | 4-Channel Analog Output Expansion Block – FX3U Series

Overview

The Mitsubishi FX3U-4DA-ADP is a 4-channel analog output module designed for FX3U and FX3UC Series PLCs. It provides both voltage and current outputs with 12-bit resolution, enabling precise analog signal control for various industrial automation tasks, including actuator control and process regulation.

Key Features

• Analog Output Channels: 4

• Output Types: Voltage (0–10V, 1–5V) and Current (4–20 mA)

• Resolution: 12-bit (1/4096 steps)

• Connection Type: ADP (adapter) mount on the side of PLC

• Compact Design: Saves panel space

• Status Indicators: LEDs for diagnostics and output monitoring

Technical Specifications

• Model: FX3U-4DA-ADP

• Series: FX3U / FX3UC

• Output Range: Configurable per channel (voltage or current)

• Conversion Speed: Approx. 1 ms/channel

• Operating Temperature: 0°C to 55°C

• Mounting: Side-mounted on PLC main unit

• Weight: Approx. 0.15 kg (0.33 lbs)

• Certifications: CE, UL, RoHS

Applications

• Analog actuator control

• Speed control for VFDs

• Temperature and pressure regulation

• Signal output to analog instruments

• Precise analog interfacing in compact PLC systems

Why Choose the FX3U-4DA-ADP?

• Expandable Control: Adds analog outputs without increasing PLC footprint

• Versatile Output Modes: Supports both voltage and current formats

• Reliable Mitsubishi Design: Engineered for industrial-grade performance

• Ideal for Compact Systems: Perfect for space-constrained applications

Order Now

The Mitsubishi FX3U-4DA-ADP is in stock and ready for immediate shipment.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
