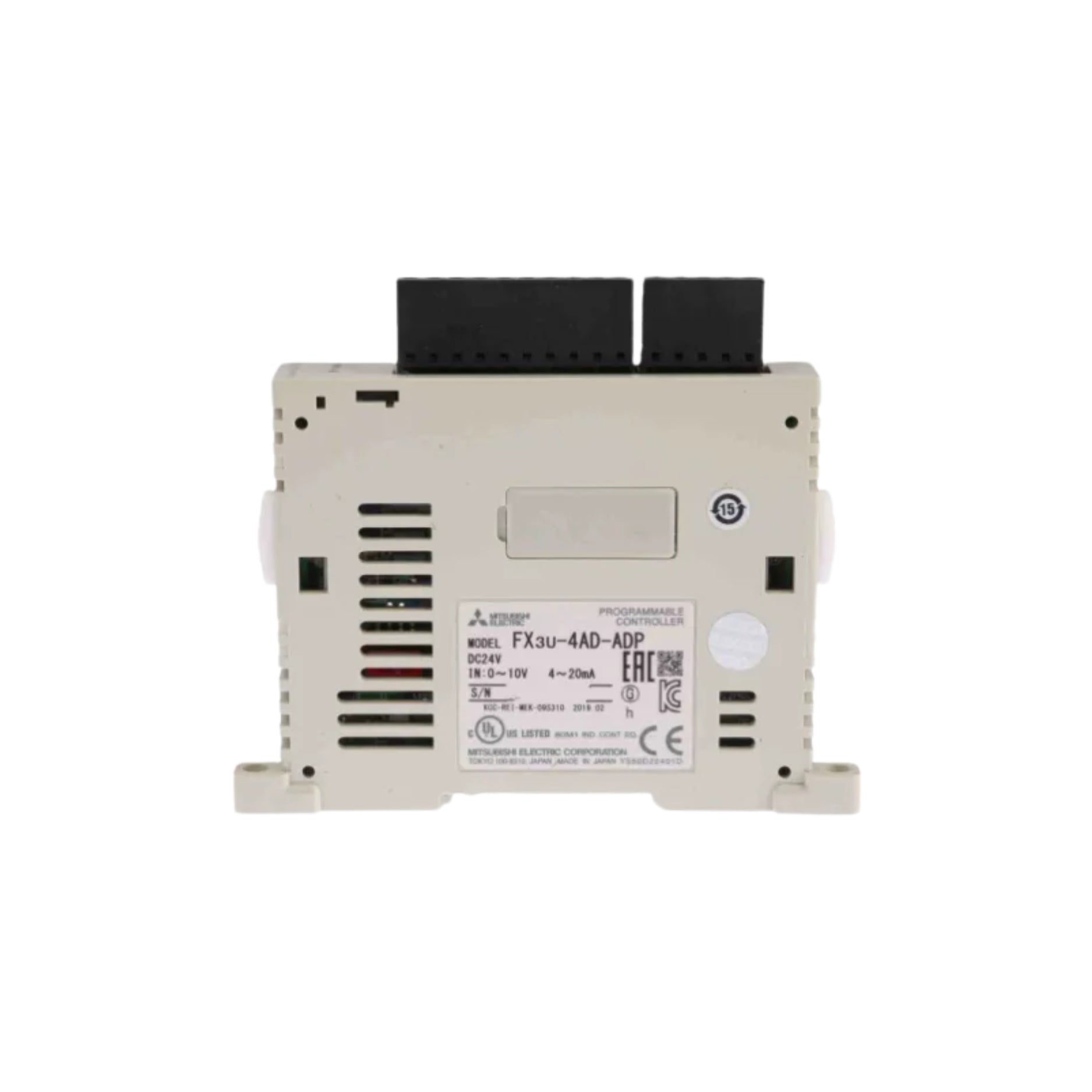

Mitsubishi FX3U-4AD-ADP

Mitsubishi FX3U-4AD-ADP | 4-Channel Analog Input Module – FX3U Series

Overview

The Mitsubishi FX3U-4AD-ADP is a 4-channel analog input adapter module for FX3U and FX3UC Series PLCs, designed to handle analog voltage and current signals. This compact ADP-mounted module enables accurate data acquisition and analog signal processing in tight control cabinet environments.

Key Features

• Number of Channels: 4 analog inputs

• Input Range:

  • Voltage: ±10V, 0–10V, 1–5V

  • Current: 4–20mA

• Resolution: 12-bit

• Mounting: Left side of main FX3U/FX3UC PLC unit (ADP slot)

• Isolation: Non-isolated inputs

• Data Conversion Speed: 2 ms per channel

Technical Specifications

• Model: FX3U-4AD-ADP

• Series: FX3U

• Power Supply: Supplied via main PLC unit

• Accuracy: ±1% of full scale

• Operating Temperature: 0°C to 55°C

• Dimensions: Approx. 27.4 x 90 x 75 mm

• Weight: Approx. 0.1 kg (0.22 lbs)

• Certifications: CE, UL, cUL

Applications

• Temperature monitoring

• Pressure and flow control

• Analog sensor integration

• Process control systems

• Data acquisition in factory automation

Why Choose the FX3U-4AD-ADP?

• Space-Saving ADP Mount: No need for extra rack space

• Versatile Signal Support: Works with multiple analog ranges

• Quick Integration: Designed for FX3U/FX3UC PLCs

• Reliable Accuracy: 12-bit resolution ensures solid performance

Order Now

The Mitsubishi FX3U-4AD-ADP analog input module is in stock and ready to ship.
