Mitsubishi FX3G-1DA-BD

Mitsubishi FX3G-1DA-BD

Overview

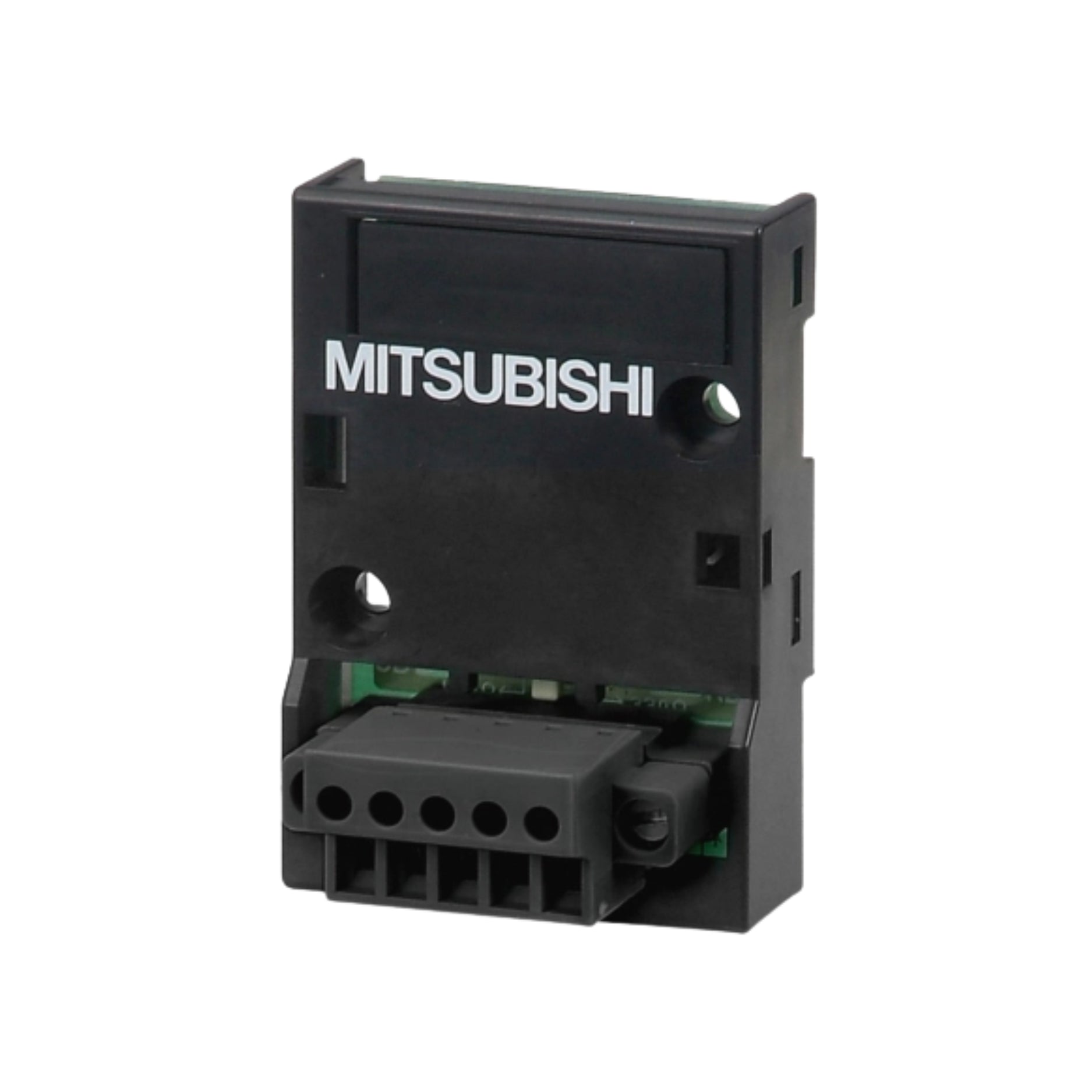

The Mitsubishi FX3G-1DA-BD is a 1-channel analog voltage output module designed for the FX3G series PLC. It provides both bipolar (±10 V) and unipolar (0–10 V) outputs, ideal for precise control of devices like valves, actuators, and analog-input drives in industrial automation.

Key Features

• Single analog output channel

• Voltage range: ±10 V / 0–10 V selectable

• 16-bit D/A resolution for high accuracy

• Excellent linearity and low ripple

• Compatible with FX3G base units and expansion racks

• LED indicator for module status

• DIN-rail or panel mounting

• CE, UL, cUL, RoHS certified

Technical Specifications

• Model Number: FX3G-1DA-BD

• Output Range: ±10 V or 0–10 V

• Resolution: 16-bit (0.3 mV steps)

• Load Impedance: ≥2 kΩ

• Output Accuracy: ±0.1% of full scale

• Linearity: ±0.05% FS

• Response Time: <10 ms

• Power: Supplied from PLC base unit

• Operating Temp: 0 °C to +55 °C

• Mounting: FX3G expansion rack or DIN-rail panel

• Certifications: CE, UL, cUL, RoHS

Applications

• Analog control of proportional valves

• Servo motor speed or position inputs

• D/A control for variable-speed drives

• Process control applications (temperature, pressure)

• OEM and packaging machinery

Why Choose the FX3G-1DA-BD

• High-precision 16-bit output for finer control

• Flexible voltage ranges for diverse field devices

• Compact plug-in design simplifies system expansion

• Ideal for high-quality analog signal generation

• Backed by Mitsubishi's FX3G performance and reliability

Order Now

The Mitsubishi FX3G-1DA-BD analog output module is available and ships worldwide.

Return to the Mitsubishi FX3 Series PLC for more high-performance compact controllers, including FX3U, FX3UC, FX3G, and FX3S models.

Explore the full range of Mitsubishi MELSEC Programmable Controllers (PLC) to discover scalable automation solutions designed for machine control, motion, networking, and industrial applications.
