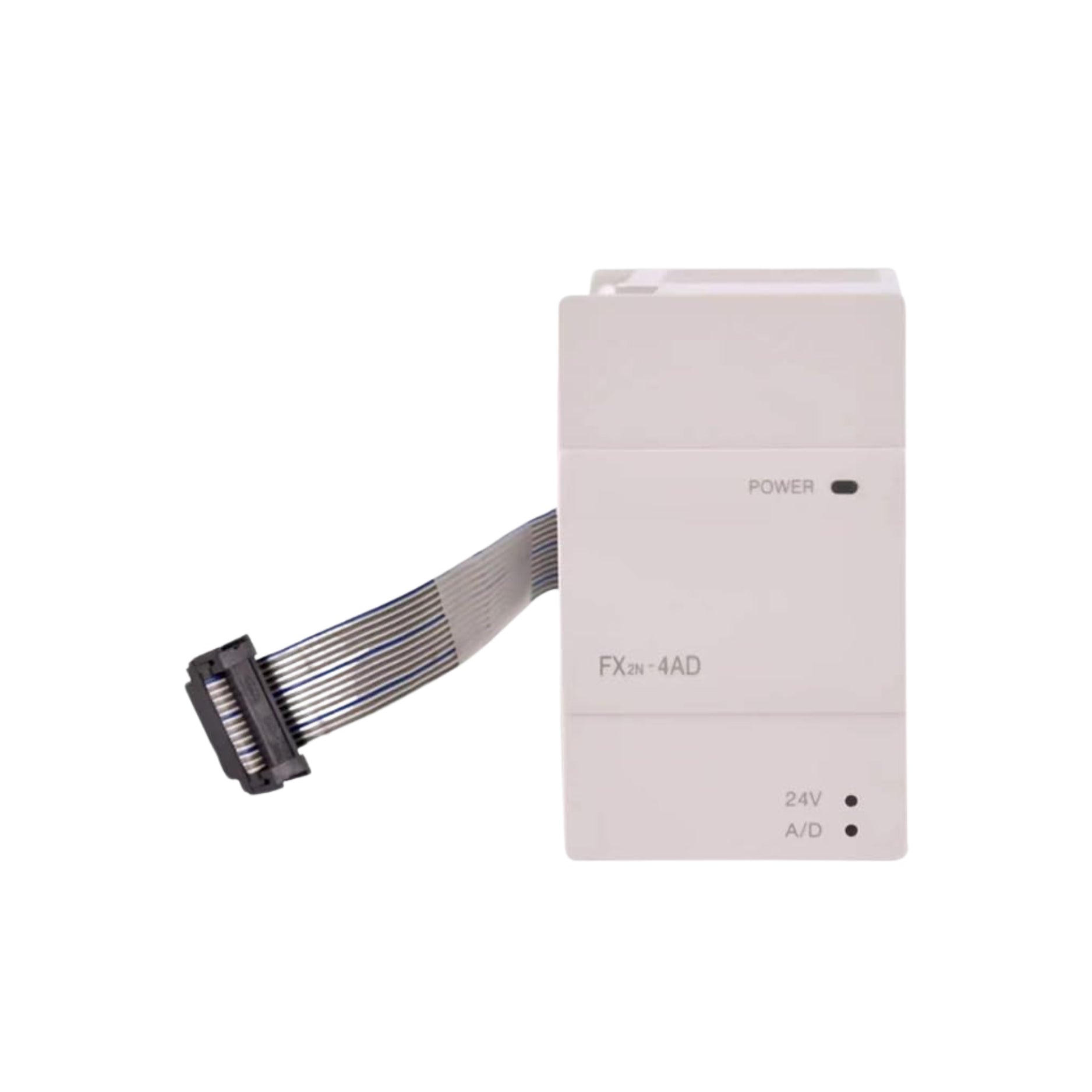

Mitsubishi FX2N-4AD

Mitsubishi FX2N-4AD | 4-Channel Analog Input Module for FX2N PLC Systems

Overview

The Mitsubishi FX2N-4AD is a 4-channel analog input module designed for FX2N Series PLCs, offering precise data acquisition with 12-bit resolution. It supports both voltage and current inputs, making it suitable for monitoring a wide range of analog devices in industrial control systems.

Key Features

• Number of Channels: 4 analog inputs

• Input Signal Types: 0–10V DC, 4–20mA DC

• Resolution: 12-bit analog-to-digital conversion

• Flexible Input Modes: Voltage or current selectable per channel

• Connection Type: Screw terminals

• Status Indicators: LED indicators for channel status

• Compact DIN Rail Mounting: Easy integration into control panels

Technical Specifications

• Model: FX2N-4AD

• Series Compatibility: FX2N

• Input Voltage Range: 0–10V DC (Input impedance: 200kΩ)

• Input Current Range: 4–20mA DC (Input impedance: 250Ω)

• Conversion Speed: Approx. 2 ms per channel

• Operating Temperature: 0°C to 55°C

• Weight: Approx. 0.2 kg (0.44 lbs)

• Certifications: CE, UL

• Power Supply: Supplied via base unit

Applications

• Temperature sensor input

• Flow meter data logging

• Pressure and level measurement

• Analog process monitoring

• Environmental control systems

Why Choose the FX2N-4AD?

• Accurate Signal Capture: High-resolution analog-to-digital conversion

• Versatile Input Range: Accepts voltage and current signals

• Reliable and Compact: Designed for industrial use in tight spaces

• Seamless FX2N Integration: Fully compatible with Mitsubishi FX2N PLC platforms

Order Now

The Mitsubishi FX2N-4AD analog input module is available and ready to ship.

Return to the Mitsubishi FX2N / FX2NC Series PLC for more options in this family.

Explore the complete range of Mitsubishi MELSEC Programmable Controllers (PLC) to discover advanced automation solutions designed for reliability, flexibility, and scalability.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
